New Launch: Embedded System with Intel® Elkhart Lake Platforms

GIGAIPC, Taiwan, 18.07.2022 - GIGAIPC, an embedded solution-focused subsidiary from GIGABYTE, previously successfully launched industrial-grade of motherboards with Intel® Elkhart Lake processors. Now, more product options for users to choose to satisfy the kind of device deployment they need.

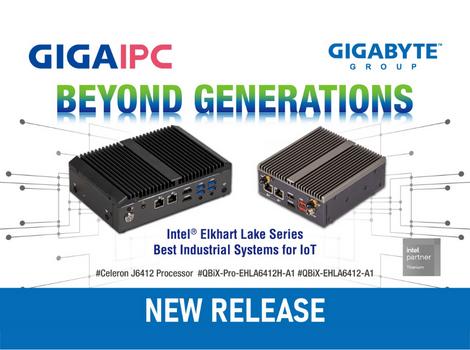

QBiX-Pro-EHLA6412H-A1 / QBiX-EHLA6412-A1 are both fanless design that allows them to perform noiseless at operating temperatures of 0°C to +50°C. They are both covered with rugged aluminum enclosure for better heat dissipation in order to keep high computing performance in severe working environment. These slim-type yet compact embedded systems are ideal for any field of space-limited applications, such as factory automation, healthcare, smart-retail and any other IPC applications.

Both standalone embedded devices support up to 32G DDR4 3200 MHz, two Gigabit RJ45 Ethernet ports, multiple I/O features of USB 3.2 Gen 2 / USB 2.0 ports / M.2 2230 2280 expansion slots and different numbers of COM ports for communication based on the product designs. QBiX-Pro-EHLA6412H-A1 features wide-ranging power input of +9 to 36 VDC while QBiX-EHLA6412-A1 supports +12V~19VDC. In addition, they both support 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/ 5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.

Product Overview

QBiX-Pro-EHLA6412H-A1

• QBiP-6412A (3.5" SBC)
• Intel® Celeron® J6412 Processor (Code Name: Elkhart Lake)
• 2 x DDR4 SO-DIMM, Max. Capacity 32 GB
• 1 x 2.5” HDD/SSD (SATA 6Gb/s)
• 2 x GbE LAN Ports
• 1 x 2280 M.2 M-Key (SATA 6Gb/s, support NVMe SSD)
• 1 x Full-size mini PCIe w/ SIM slot
• +9V~36VDC (Full Range)

QBiX-EHLA6412-A1

• QBi-6412A (10x10 M/B)
• Intel® Celeron® J6412 Processor (Code Name: Elkhart Lake)
• 1 x DDR4 SO-DIMM, Max. Capacity 32 GB
• 2 x GbE LAN Ports
• 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
• 1 x 2230 M.2 E-Key (WiFi/BT)
• +12V~19VDC
