New Launch: mini-ITX M/B with Intel® 12th gen processors

GIGAIPC, Taiwan, 14.02.2023 - GIGAIPC, an embedded solution-focused subsidiary from GIGABYTE, is launching breakthrough and innovative range of products powered by Intel® 12th Gen Intel® Core™ desktop processors (Code Name: Alder Lake-S). It is the first Intel® Core™ processors to feature performance hybrid architecture, the largest leap in Intel® Core™ Processor architecture and performance in years.
This revolutionary chip design integrates up to eight Performance-cores, or P-cores, that enhance IoT workload consolidation, and up to eight Efficient-cores, or E-cores, that enhance background task management and multitasking. These platform enable embedded / industrial/ IoT applications with up to 1.36x times faster in single-thread performance and up to 1.35x times faster in multi-thread performance vs. 10th Gen Intel® Core™ Processors.
Firstly, the mainstream industrial mITX motherboard series is integrated with the new Intel® 600 Series Q670, H610 and the other industrial variant Q670E chipsets.

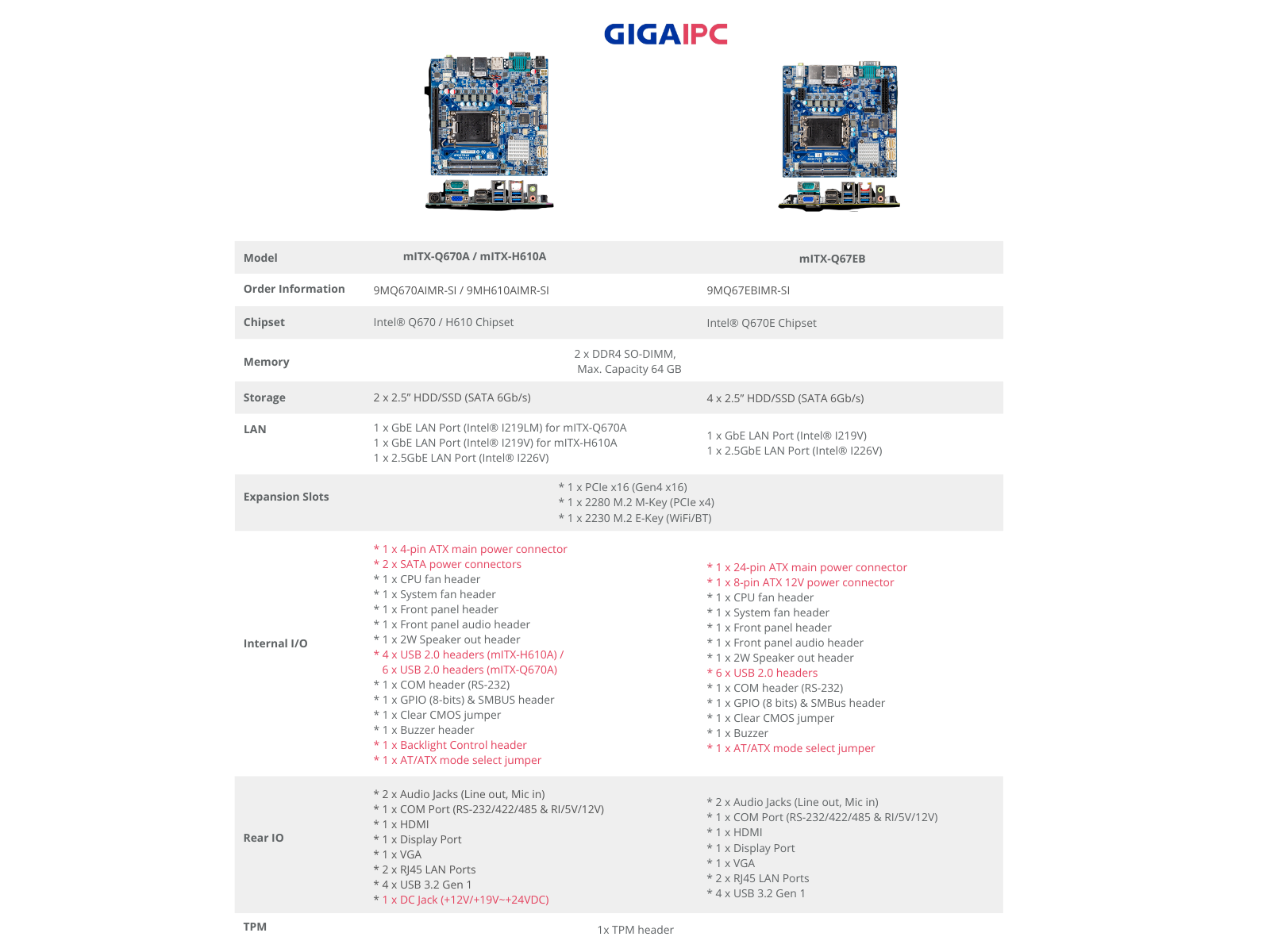

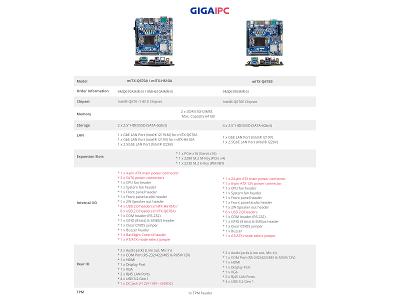

mITX-Q670A / mITX-H610A (for Embedded Applications) are integrated by Intel® H610 / Q670 Chipset. The key feature is to support 4 independent display outputs via 1 x HDMI / 1 x DP ports up to 4K@60Hz and high-quality resolution and 1 x VGA / 1 x LVDS ports for traditional display devices. Moreover, abundant I/O and expansions gives more flexibility and integration capability for embedded use cases, such as 1 x PCIe x16 (Gen4 x16) slot for graphic cards or add-on card, M.2 M-Key with PCIe x4 to expand storage capacity.
mITX-Q67EB (for Industrial Field) is powered by Intel® Q670E Chipset, to support Intel®13th/12th Gen processors under 65W. Intel® Q670E Chipset also supports the Intel® Ethernet Connection with both 1 Gbps and 2.5 Gbps options, which are shown as part of mITX-Q67EB specification, to provide advanced wireless networking capability. Comprehensive IO ports and expansion slots, such as 4 x SATA 6Gb/s Ports 2 x COM ports, 4 x USB 3.2, 6 x USB 2.0, 1 x 2280 M.2 M-Key, 1 x 2230 M.2 E-Key, 1 x PCIe x16 (Gen4 x16) and so on, to offer more possibilities for integration of industrial computing applications.
Herausgeber der Meldung (Text / Bild): GIGAIPC Co., Ltd., www.gigaipc.com
Passende Produkte
-
Industrie-MainboardsMini-ITX Mainboards mITX-Q670AMini-ITX Industrie-Mainboards
LGA 1700 (H6)
Intel Q670
260 Pin SO-DIMM DDR4
LVDS
2 x G-LAN (Rückseite)
4 x USB (Rückseite)
6 x USB (intern)
1 x Seriell I/O
Digital I/O (8-Bit)
1 x PCIe x16
Stromversorgung ATX
DC Weitbereich 12V / 19V ~ 24V+9
-
Industrie-MainboardsMini-ITX Mainboards mITX-H610AMini-ITX Industrie-Mainboards
LGA 1700 (H6)
Intel H610
260 Pin SO-DIMM DDR4
LVDS
2 x G-LAN (Rückseite)
4 x USB (Rückseite)
4 x USB (intern)
1 x Seriell I/O
Digital I/O (8-Bit)
1 x PCIe x16
Stromversorgung ATX
DC Weitbereich 12V / 19V ~ 24V+9
-
Industrie-MainboardsMini-ITX Mainboards mITX-Q67EBMini-ITX Industrie-Mainboards
LGA 1700 (H6)
Intel Q670E
260 Pin SO-DIMM DDR4
2 x G-LAN (Rückseite)
4 x USB (Rückseite)
6 x USB (intern)
1 x Seriell I/O
Digital I/O (8-Bit)
1 x PCIe x16
Stromversorgung ATX+9
