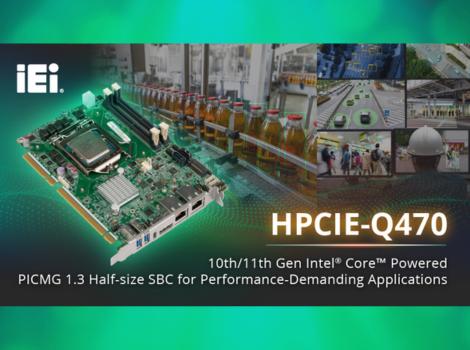

IEI Launches HPCIE-Q470 PICMG 1.3 Half-Size Single Board Computer Featuring Latest 10th/11th Gen Intel® Core™ Processors for Performance-Demanding Applications

IEI, Taiwan, 15.03.2022 - The HPCIE-Q470 is a half-size PICMG 1.3 SBC supporting 10th/11th generation Intel® Core™, Pentium® or Celeron® processor with Intel® Q470 chipset. Aimed at customers who are seeking compact system with high computing power and flexible expansion capabilities.

The performance boosts up to 80% better than previous generation on i5 processor. The 10th Gen Intel® Core platform supports up to 10 cores and improved performance over Coffee Lake-Refresh. With increased I/O capacity and the latest DDR4-2933 memory support, these processors deliver the performance required to consolidate industrial multiple workloads.

Delivering HDMI™ 4K Resolution for Real-time Monitoring

Equipped with Intel® UHD Graphics to display videos and images in stunning 4K (4096x2160 @30 Hz) resolutions.

Connectivity

USB Type-C connectors are widely adopted by many electronic devices, such as portable SSD hard drives, smart phones, USB cameras, etc. The HPCIE-Q470 uses the reversible connector that should end the bane of users fiddling at the back of computers.

SATA 6 Gb/s Storage Performance with RAID 0/1 Protection

Protection

• Vibration free lockable SATA connectors and cables to protect the connection between HDD and SBC
• RAID 1 with mirror function provides redundancy data protection

Performance

• RAID 0 enables faster storage performance with data striping to protect against data loss from a hard drive failure by mirroring all data across multiple devices.
• SATA 6Gb/s is well suited for such as video editing because they require high performance to memory.

Networking

The M.2 2230 A key slot carrying with PCIe 3.0 x1 and USB 2.0 signals allows it to adopt the latest Wi-Fi 6E technology. Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks.

Delivering Dual Low-Latency 2.5G LAN Powered by Intel

The two on-board Intel® I225V 2.5GbE controllers enable the HPCIE-Q470 to meet the bandwidth-intensive requirements such as large file transfers and high-resolution video streaming.
