AI System
// AI System
// Nvidia Jetson AGX ORIN 64 GB
// Passiv gekühlt
// 64 GB RAM
// 1 x Anzeige
// 3 x USB (Frontseite)
// 2 x USB (Rückseite)
// 1 x USB (intern)
// 2 x G-LAN (Frontseite)
// 1 x Mini-PCIe
// 3 x M.2 Slot
// 9~36V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

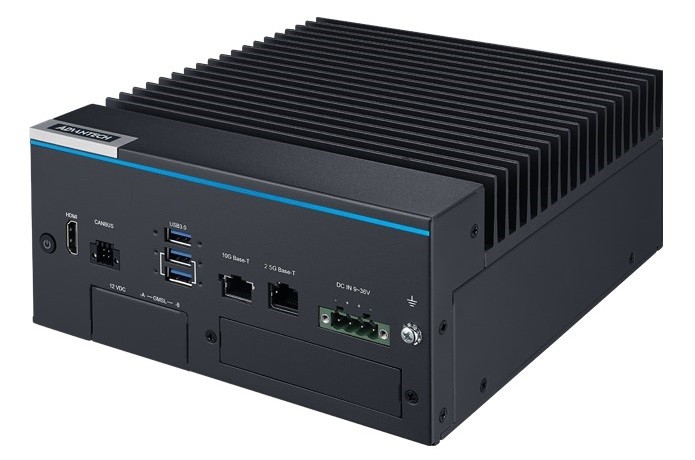

Basismodul: Advantech MIC-732-AO
Allgemein | ||||
SKU / Artikelnummer | MIC-732-AO | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
Produkt-ID | MIC-732-AO6A1 | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | ARM Cortex-A78AE | |||
Nummer | Nvidia Jetson AGX ORIN 64 GB | |||
CPU Kerne | 12 St | |||
ARM Instruction set | ARMv8.2-A | |||
Speicher | Memory Type | DDR5 | ||
Maximaler Ausbau | 64 GB | |||
Speicher onBoard | 64 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
eMMC Version | 5.1 | |||
Storage | Embedded MultiMedia Card (eMMC) 64 GB | |||
Grafik | ||||
Prozessor | Nvidia Ampere | |||
Cores | Cuda | 2048 St | ||
Tensor | 64 St | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | B + M | |
Interface | NVMe, PCIe ×4 | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | B | ||
Interface | USB 2.0, USB 3.0 | |||
Unterstütze Abmaße | 3052 | |||
Slot 3 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, B + M, E | |||
SIM | Anzahl | 2 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 1 St | |
Seriell | RS-232 / 422 / 485 | Ports (Sonderanschluss) | 2 St | |

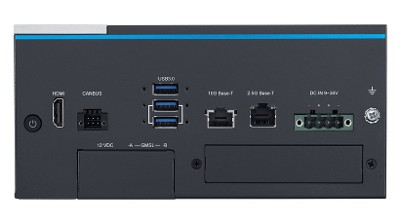

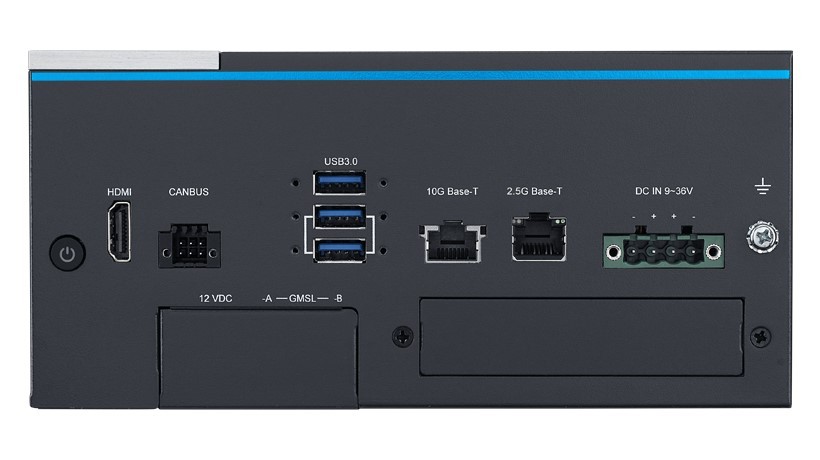

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 2) | 3 St | ||
CAN Bus | Anschluss | 2 x 3 Pin Stecker | ||
Stück | 2 St | |||

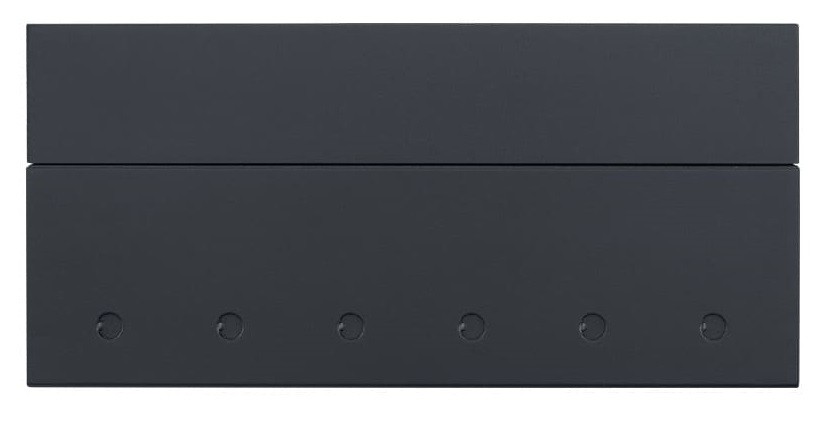

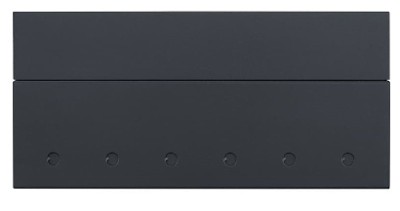

Externe I/O (Rückseite) | ||||
USB | USBOTG (USB On-The-Go) | 2 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 4 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | AI System | ||
Breite | 192 mm | |||
Tiefe | 203 mm | |||
Höhe | 90 mm | |||
Vibration | Vibration | 3G, 10~500 Hz | ||
Schock | Messdaten | 10G, halben Sinusschwingung, 11 ms Dauer | ||
Bedienelemente | Power | 1 St | ||
Reset | 2 St | |||
Statusanzeigen | Power | 1 St | ||
Antennenlöcher | 6 St | |||
Farbe | Schwarz | |||
Material | Stahl | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
