AI System
// AI System
// [Nvidia Jetson AGX ORIN 32 GB | Nvidia Jetson AGX ORIN 64 GB]
// Aktiv (Lüfterkühlung) gekühlt
// [32 GB | 64 GB] RAM
// 1 x Anzeige
// 5 x Seriell
// 5 x USB (Frontseite)
// 5 x USB (Rückseite)
// 5 x G-LAN (Frontseite)
// 2 x Mini-PCIe
// 2 x M.2 Slot
// 12~48V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue AIB-NIAO
Allgemein | ||||
SKU / Artikelnummer | AIB-NIAO | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Serie | ARM Cortex-A78AE | ||
Nummer | Nvidia Jetson AGX ORIN 32 GB, Nvidia Jetson AGX ORIN 64 GB | |||
Speicher | Memory Type | DDR4 | ||
Speicher onBoard | 32 GB, 64 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
eMMC Version | 5.1 | |||
Storage | Embedded MultiMedia Card (eMMC) 64 GB | |||
Grafik | ||||
Cores | Cuda | 1792 St, 2048 St | ||
Performance | TOPS (INT8) | 200, 275 | ||
HDMI | Version | 2.0 | ||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 2 St | |
PCIe Schnittstellen | 2x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | B | ||
Interface | 5G / Storage Module | |||
Unterstütze Abmaße | 3042, 3052 | |||
M.2 Key IDs | B, M | |||
Storage | Micro-SD | |||

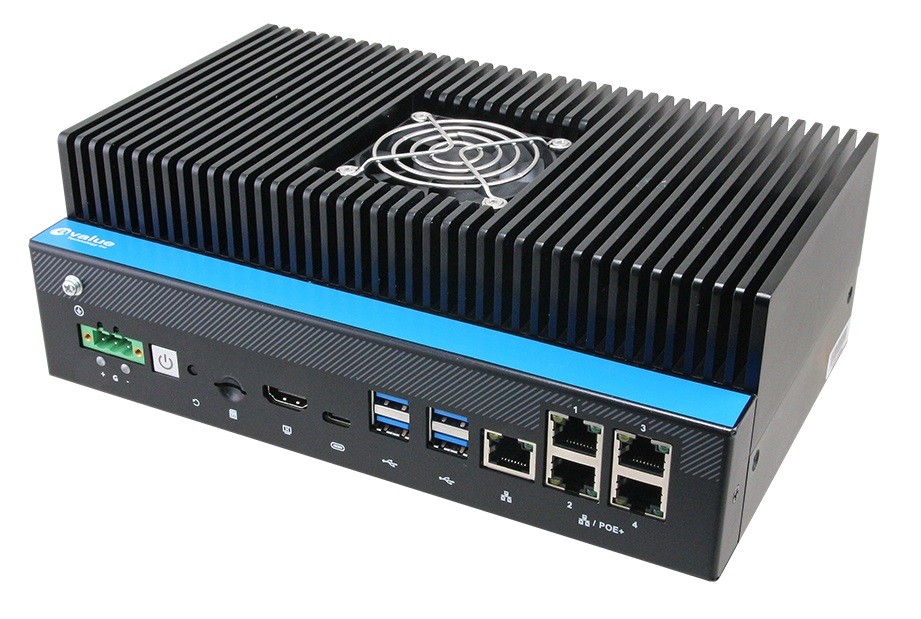

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 1 St | ||
RJ-45 mit POE | 4 St | |||
USB | USB v3.0 | 4 St | ||
USB v3.0 (Type C) | 1 St | |||

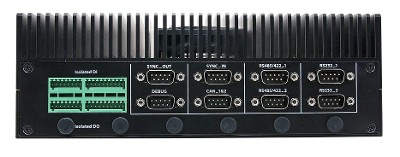

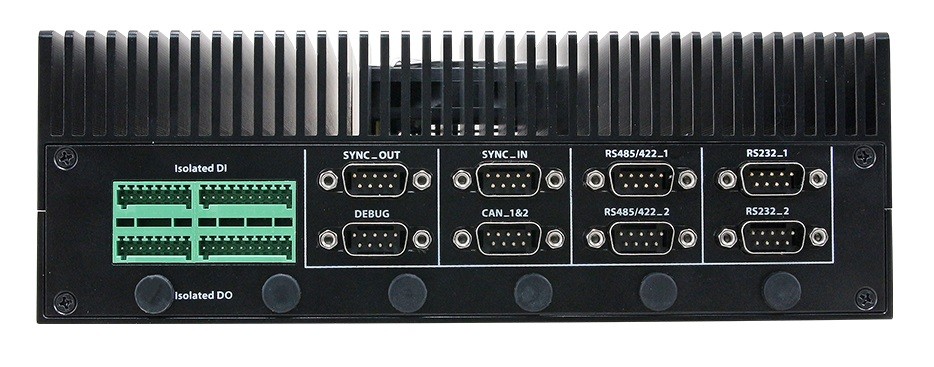

Externe I/O (Rückseite) | ||||
Seriell | RS-232 | DB-9 | 3 St | |
RS-422 / 485 | DB-9 | 2 St | ||
Digital I/O | Anzahl | 2 St | ||
Bits | 8-Bit | |||
Anschluss | 20 Pin Terminal Stecker | |||
USB | USB v3.0 | 4 St | ||
USB v3.0 (Type C) | 1 St | |||
CAN Bus | Anschluss | DB-9 | ||
Stück | 2 St | |||
Protokoll | CAN FD | |||
Console | DB-9 Anschluss | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~48V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 12~48V | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Aktiv | Lüfter | Anzahl | 1 St | |
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Lagerung | -40° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | AI System | ||
Breite | 233 mm | |||
Tiefe | 144 mm | |||
Höhe | 80 mm | |||
Vibration | Vibration | 3G, 10~500 Hz | ||
Gewicht | 2300 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Power | 1 St | ||
Antennenlöcher | 6 St | |||
Farbe | Schwarz | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
