AI System
// [Nvidia Jetson AGX ORIN 32 GB | Nvidia Jetson AGX ORIN 64 GB]
// [32 GB | 64 GB] RAM
// 3 x Anzeige
// 2 x PCIe x4
// 3 x M.2 Slot
// 19V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

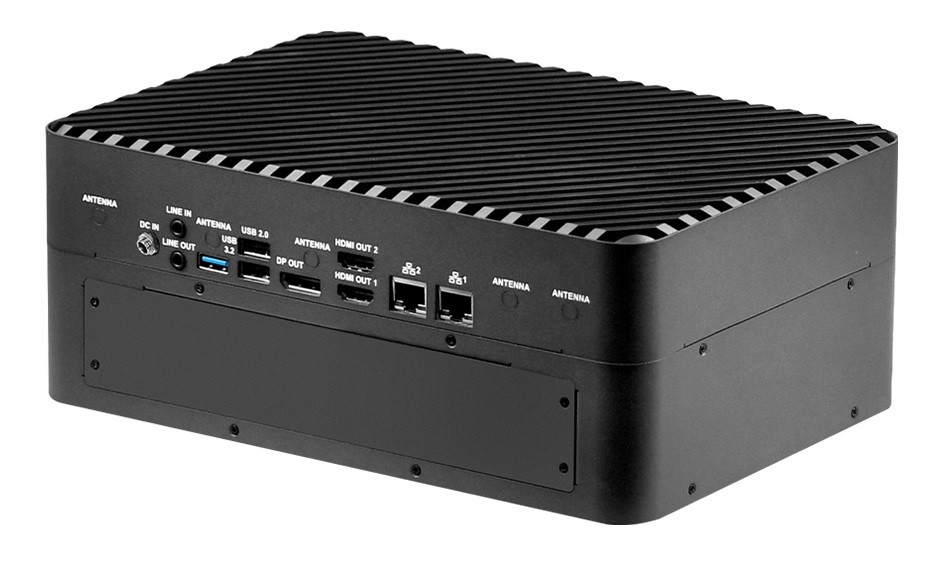

Basismodul: Avalue AIB-NIAO-S
Allgemein | ||||
SKU / Artikelnummer | AIB-NIAO-S | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Serie | ARM Cortex-A78AE | ||
Nummer | Nvidia Jetson AGX ORIN 32 GB, Nvidia Jetson AGX ORIN 64 GB | |||
CPU Kerne | 8 St, 12 St | |||
ARM Instruction set | ARMv8.2-A | |||
Speicher | Memory Type | DDR5 | ||
Speicher onBoard | 32 GB, 64 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
eMMC Version | 5.1 | |||
Storage | Embedded MultiMedia Card (eMMC) 64 GB | |||
Grafik | ||||
Cores | Cuda | 1792 St, 2048 St | ||
Tensor | 56 St, 64 St | |||
Performance | TOPS (INT8) | 200, 275 | ||
Bildschirme (Multidisplay) | 2 Displays | |||
HDMI | Version | 2.0 | ||
Erweiterung | ||||
PCIe x4 | Generation | 3 | ||
x4 Signal | 2 St | |||
PCIe Schnittstellen | 2x PCIe x4 | |||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×1 (Gen. 4), SDIO, USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | M | ||
Interface | PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
Slot 3 | Key ID | M | ||
Interface | PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
Slot 4 | Key ID | M | ||
Interface | PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
Slot 5 | Key ID | B | ||
Interface | USB 3.2 Gen2 | |||
Unterstütze Abmaße | 3042 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Interne I/O | ||||
Digital I/O | Bits | 4-Bit | 1 St | |
Serial Peripheral Interface (SPI) | 1 St | |||
I²C | 2 St | |||
UART | Tx/Rx | 1 St | ||
Image Capture Interfaces | Kamera Eingang 1 | MIPI-CSI (Camera Serial Interface) | 1 St | |
Lanes | 16 St | |||
Standard | MIPI CSI-2 | |||
CAN Bus | Version 2.0B (mit Isolation) | 2 St | ||
Audio | I²S | 2 St | ||
Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 2 St | ||
Displayport | 1 St | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 19V | |||
Anschluss | Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 19V | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 60°C | ||
Lagerung | -20° bis 80°C | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
