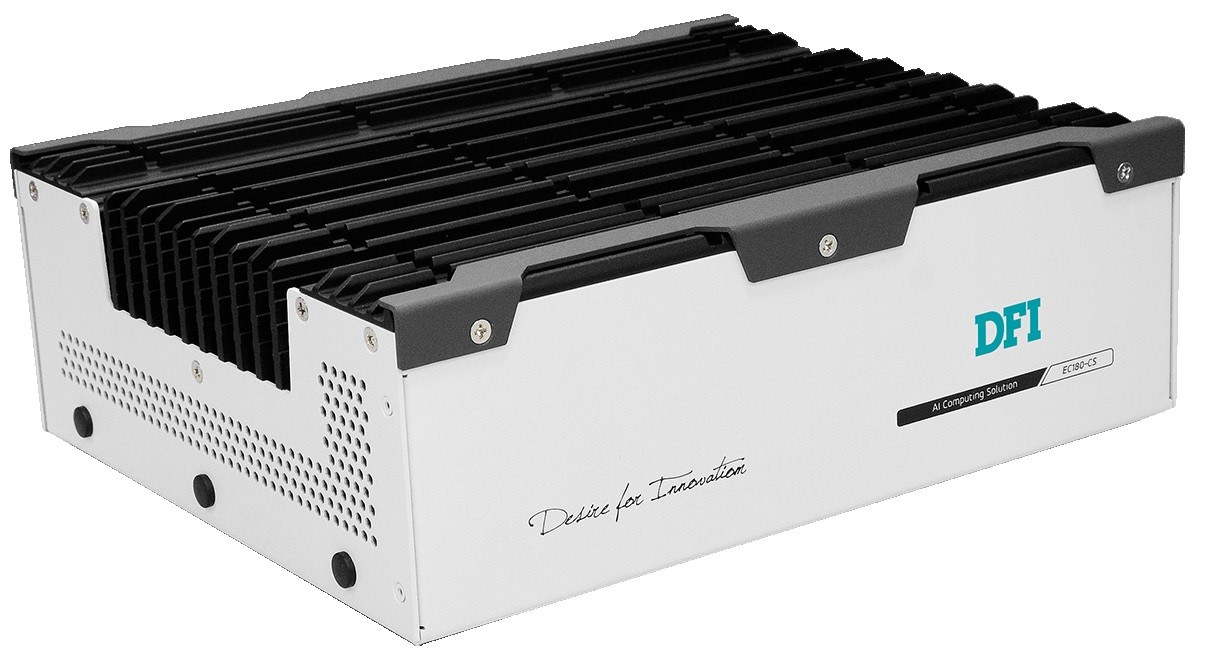

AI System
// AI System
// [- | Intel Core i7-9700TE]
// [1,8 | -] GHz
// Passiv gekühlt
// [32 GB | -] RAM
// 5 x Anzeige
// 2 x Seriell
// 4 x USB (Rückseite)
// 4 x G-LAN (Rückseite)
// 3 x M.2 Slot
// 19V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: DFI EC180-CS
Allgemein | ||||
SKU / Artikelnummer | EC180-CS | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 750-EC18000-000G, 750-EC18000-100G, 750-EC18000-200G | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Coffee Lake | |||
Nummer | -, Intel Core i7-9700TE | |||
CPU Kerne | 8 St, - | |||
Threads | 8 St, - | |||
Sockel | LGA 1151 (H4) | |||
Basis Frequenz | 1,8 GHz, - | |||
Max. Turbo-Taktfrequenz | 3,8 GHz, - | |||
Cache | 12 MB, - | |||
Thermal Design Power (TDP) | 35 W, - | |||
Chipsatz | Intel H310 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2400 / 2666 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Speicher onBoard | 32 GB, - | |||
Storage | Solid State Drive (NVMe SSD) | 512 GB, - | ||
BIOS | AMI UEFI 128 Mbit SPI | |||
Grafik | ||||
Prozessor | -, Nvidia RTX A500, Nvidia RTX A2000 | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×1 (Gen. 2) | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 2 | Key ID | B | ||
Interface | 5G / Storage Module, SATA III | |||
Unterstütze Abmaße | 3052 | |||
Slot 3 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 2), USB 2.0, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, E, M | |||
Mobile PCI Express Module (MXM) | wird unterstützt | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 3 St | |||
Controller | Chipsatz | Intel I219V PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Wireless | Wi-Fi | Protokoll | 802.11 a/b/g/n/ac | |
Bluetooth | Type | v5.1 | ||
Netzwerk | 4x G-LAN, Bluetooth, Wi-Fi | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||

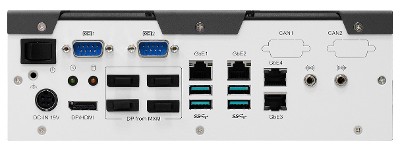

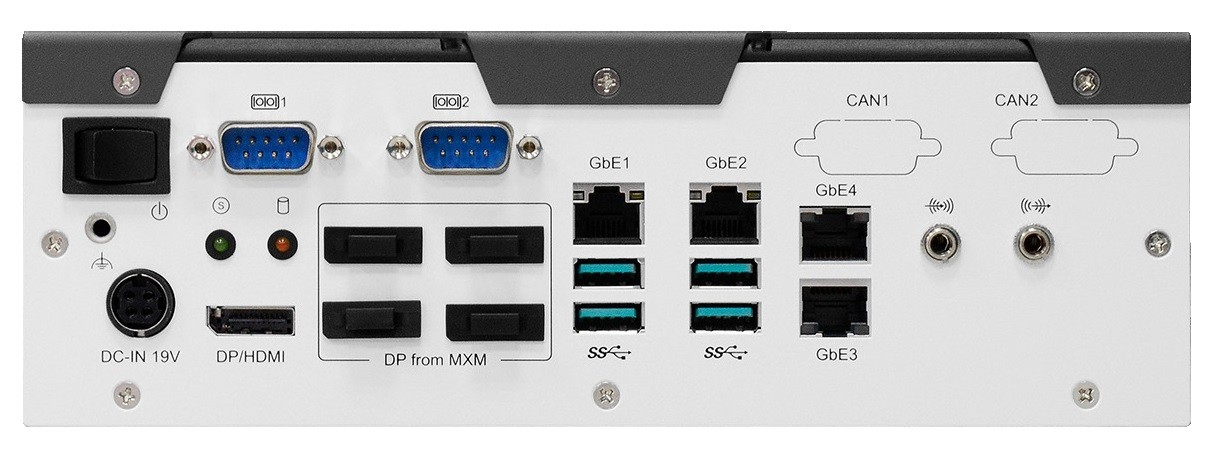

Externe I/O (Rückseite) | ||||
Anzeige | Displayport | 4 St | ||
DP / HDMI Dual Connector | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 4 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
USB | USB v3.1 Gen. 2 | 4 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 19V | |||
Anschluss | 4 Pin Anschluss (Kycon, Singatron or similar) | |||
Stromversorgung - Eingang | DC: 19V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 45°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | AI System | ||
Breite | 250 mm | |||
Tiefe | 180 mm | |||
Höhe | 76 mm | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 15G, halben Sinusschwingung, 11 ms Dauer | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 5000 g | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 6 St | |||
Farbe | Schwarz / Silber | |||
Material | Aluminium, Stahl | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
