AI System
// AI System
// [Intel Core i5-8500 | Intel Core i7-8700]
// [3 | 3,2] GHz
// 8 GB RAM
// 2 x Display
// [4 | 6] x Serial
// 6 x USB (Front page)
// 7 x G-LAN (Front page)
// [0 | 1] x PCIe x4
// [0 | 1] x PCIe x16
// 1 x Mini-PCIe
// 1 x M.2 Slot
// 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

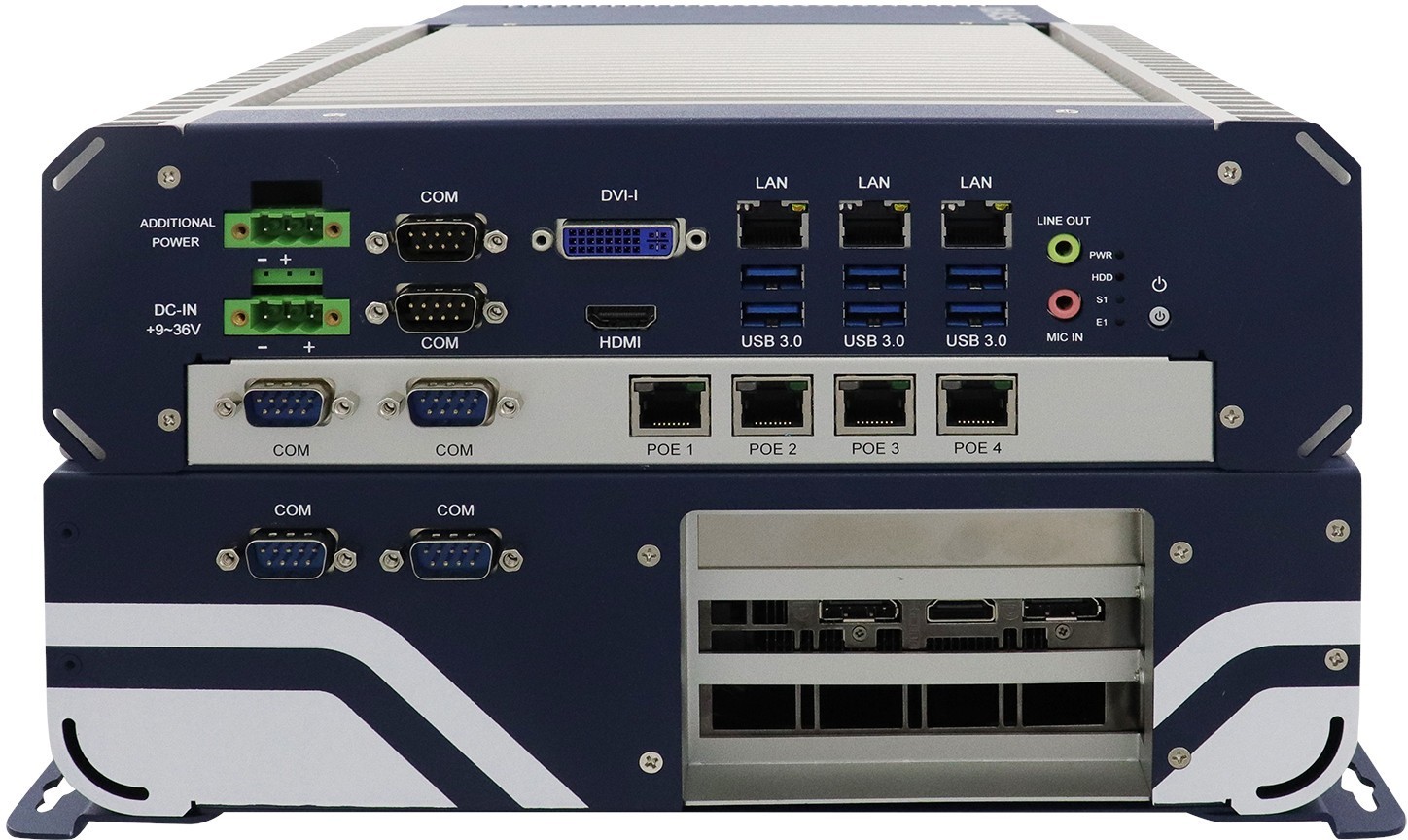

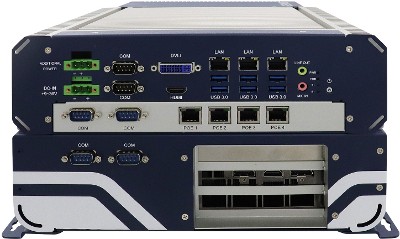

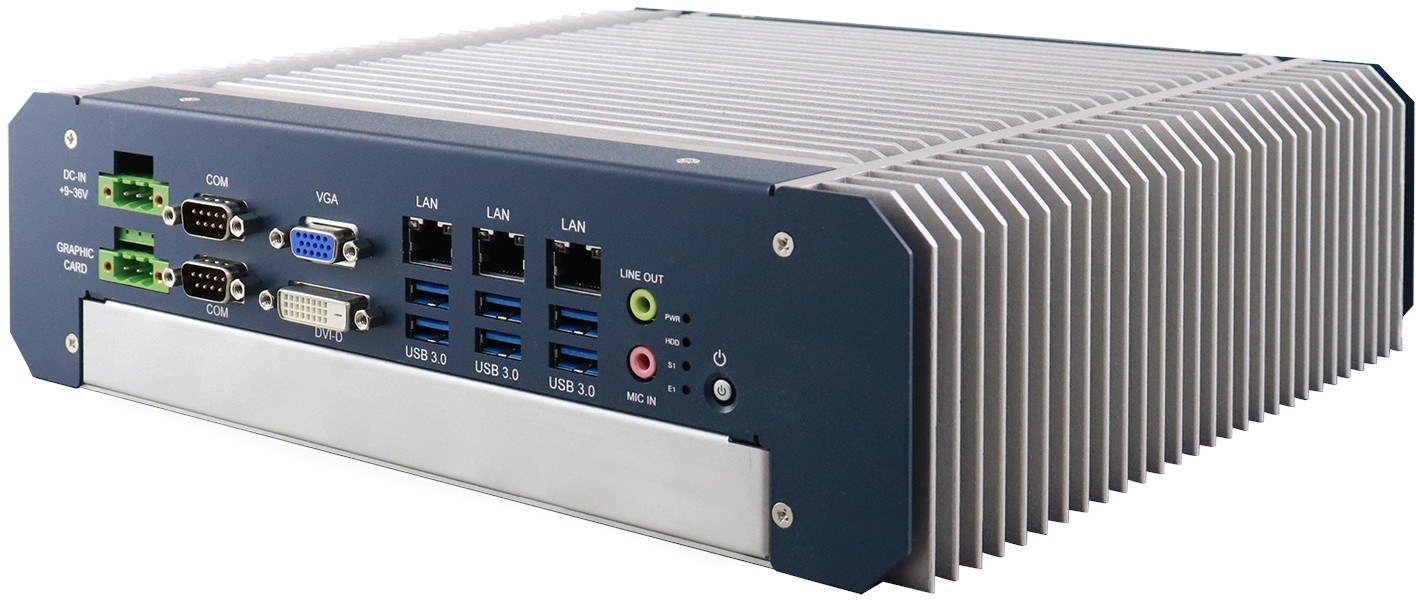

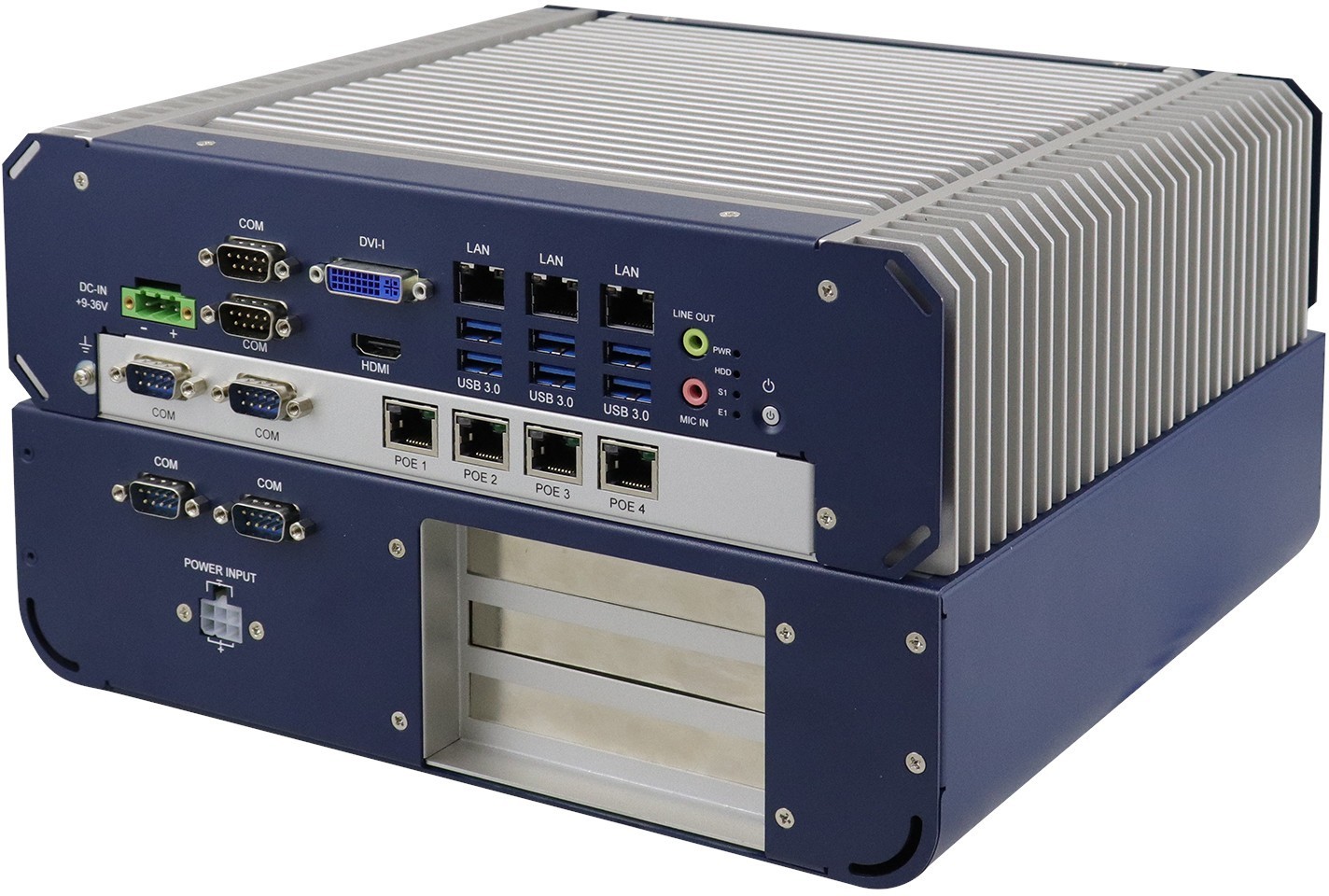

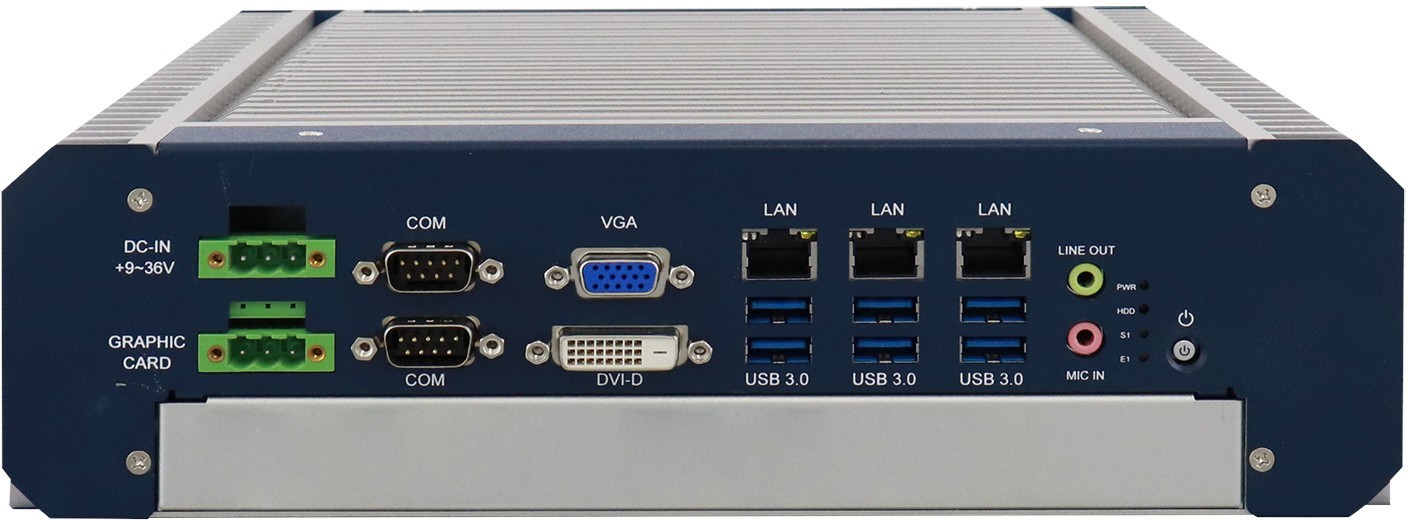

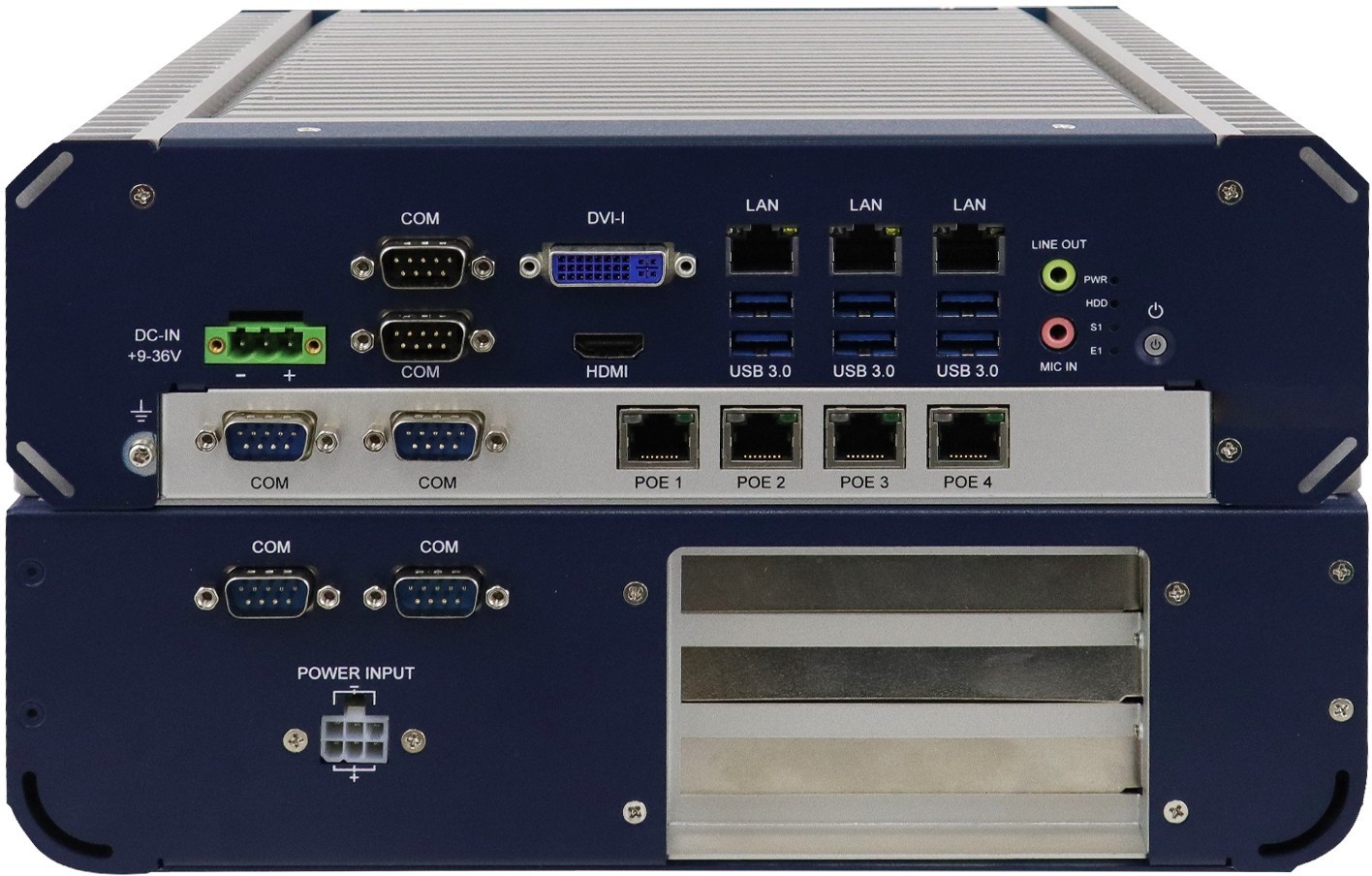

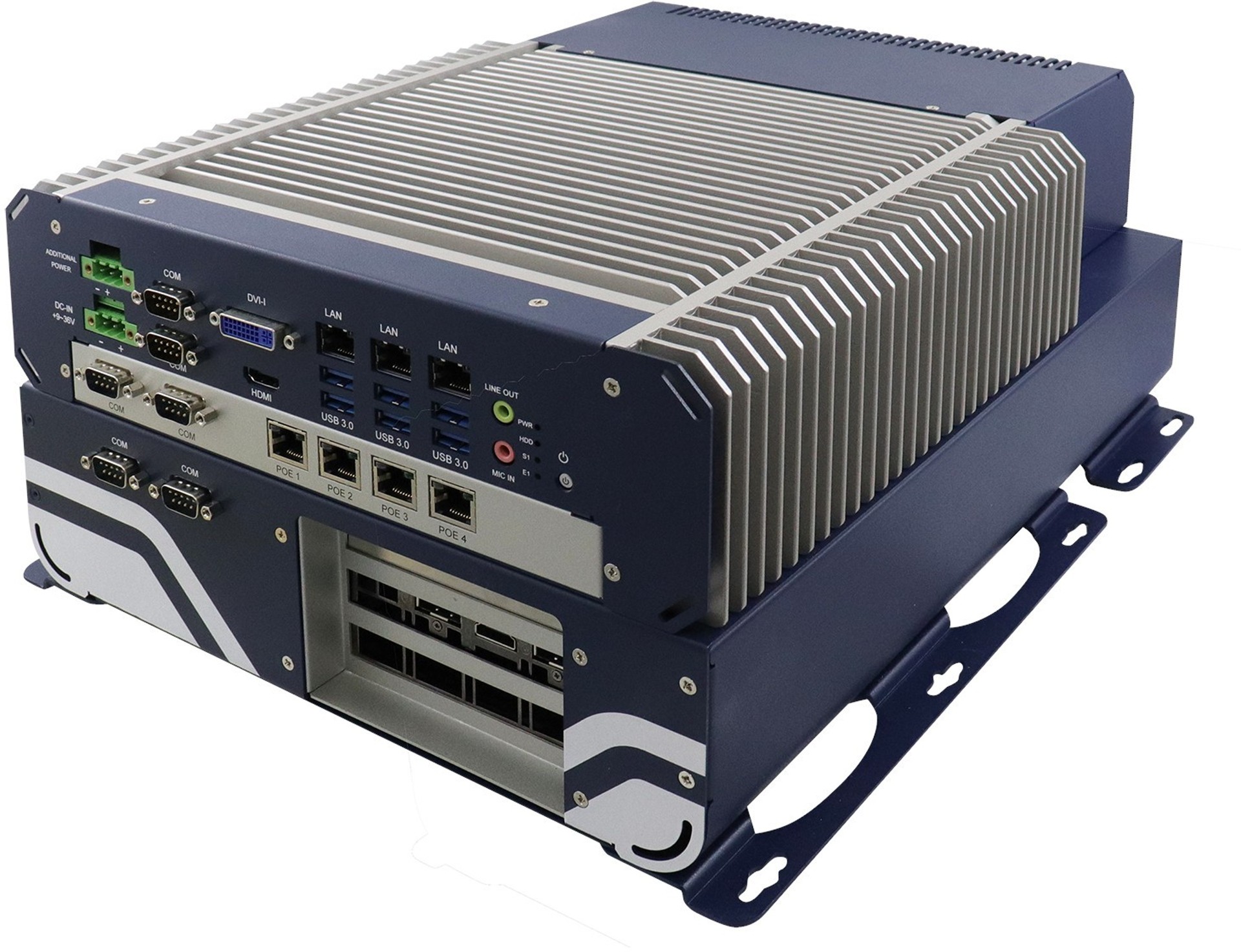

Basismodul: IBASE MAF800
| Allgemein | ||||
| SKU / Artikelnummer | MAF800 | |||
| Produktgrunddaten | ||||
| Hersteller | IBASE | |||
| System | ||||
| Prozessor | Vertikales Segment | Desktop | ||
| Serie | Intel Coffee Lake | |||
| Nummer | Intel Core i5-8500, Intel Core i7-8700 | |||
| CPU Kerne | 6 St | |||
| Threads | 6 St, 12 St | |||
| Sockel | LGA 1151 (H4) | |||
| Basis Frequenz | 3 GHz, 3,2 GHz | |||
| Max. Turbo-Taktfrequenz | 4,1 GHz, 4,6 GHz | |||
| Cache | 9 MB, 12 MB | |||
| Thermal Design Power (TDP) | 65 W | |||
| Lithographie | 14 nm | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| Frequenz | 2133 / 2400 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 32 GB | |||
| Speicher onBoard | 8 GB | |||
| Storage | Solid State Drive (SSD) | 128 GB | ||
| Storage | Solid State Drive (SSD) 128 GB | |||
| Grafik | ||||
| Prozessor | Intel UHD Graphics 630 | |||
| Erweiterung | ||||
| PCIe x4 | x4 Signal | 1 St, - | ||
| PCIe x16 | x16 Signal | Anzahl | 1 St, - | |
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| mSATA Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Unterstütze Abmaße | 2280 | |||
| M.2 Key IDs | M | |||
| Storage | M.2, mSATA | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 2 St | |||
| Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 4 St | |||
| Netzwerk | 7x G-LAN | |||
| Externe I/O (Frontseite) | ||||
| Anzeige | HDMI | 1 St | ||
| DVI | DVI-D Signal | 1 St | ||
| Audio | Line-Out | 1 St | ||
| Ethernet | RJ-45 | 3 St | ||
| RJ-45 mit POE | 4 St | |||
| Seriell | RS-232 | DB-9 | 2 St, 4 St | |
| RS-232 / 422 / 485 | DB-9 | 2 St | ||
| USB | USB v3.0 | 6 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Nein | |
| Bereich | 12V | |||
| Anschluss | 6 Pin PCIe ATX Anschlussstecker | |||
| DC | Weitbereich | Ja | ||
| Bereich | 9~36V | |||
| Anschluss | 3 Pin Terminal Stecker | |||
| POE+ | Anzahl | 4 St | ||
| Stromversorgung - Eingang | DC: 12V,9~36V | |||
| Einschübe | ||||
| Intern | Einbauschacht 2.5" | 2 St | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -10° bis 45°C | ||
| Lagerung | -20° bis 80°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
| Abmaße | Formfaktor | AI System | ||
| Breite | 284 mm | |||
| Tiefe | 262 mm, 363 mm | |||
| Höhe | 80 mm, 160 mm | |||
| Vibration | Vibration | 1G, 5~500 Hz | ||
| mit HDD | 0.25G, 5~300Hz, 3 Axen | |||
| Schock | Messdaten | 20G, 11 ms | ||
| Gewicht | 5400 g, 9000 g, 10000 g | |||
| Bedienelemente | Power | 1 St | ||
| Statusanzeigen | Storage | 1 St | ||
| Power | 1 St | |||
| Slot Brackets | Standard | 3 St, - | ||
| Farbe | Blau / Silber | |||
| Material | Aluminium, Stahl | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 10 (64-bit) | wird unterstützt | ||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| UL | Ja | |||
| FCC | Class B | Ja | ||
| CCC | Ja | |||
| RoHS konform | Ja | |||
