AI System
// AI System
// [Intel Core i3-8100T | Intel Pentium G5400T]
// 3,1 GHz
// Aktiv (Lüfterkühlung) gekühlt
// 1 x Anzeige
// 2 x Seriell
// 6 x USB (Rückseite)
// 2 x G-LAN (Rückseite)
// 2 x PCIe x4
// 2 x PCIe x16
// 3 x M.2 Slot
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

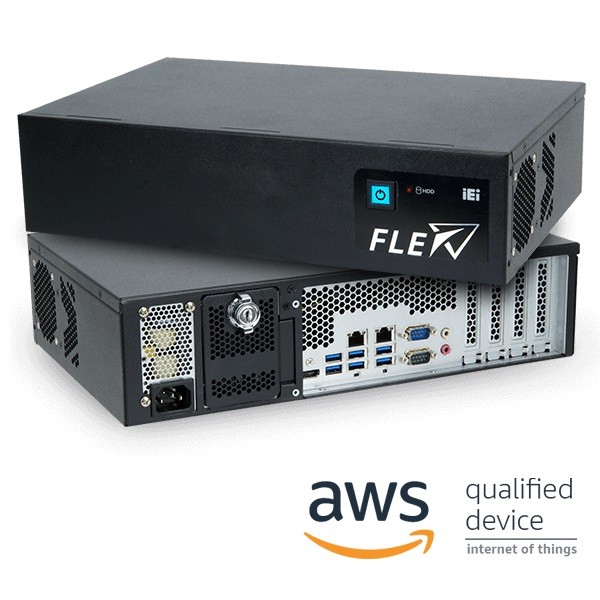

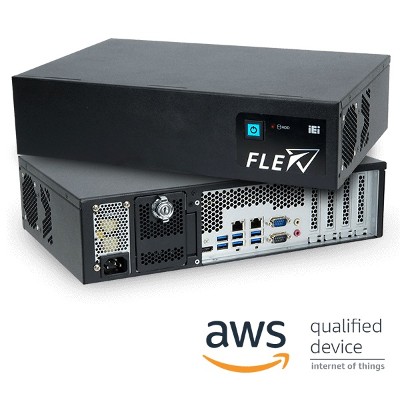

Basismodul: IEI FLEX-BX200-Q370
Allgemein | ||||
SKU / Artikelnummer | FLEX-BX200-Q370 | |||
Produktgrunddaten | ||||
Hersteller | IEI | |||
System | ||||
Prozessor | Serie | Intel Coffee Lake | ||
Nummer | Intel Core i3-8100T, Intel Pentium G5400T | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 4 St | |||
Sockel | LGA 1151 (H4) | |||
Basis Frequenz | 3,1 GHz | |||
Cache | 4 MB, 6 MB | |||
Thermal Design Power (TDP) | 35 W | |||
Chipsatz | Intel Q370 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2400 / 2666 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics 610, Intel UHD Graphics 630 | |||
HDMI | Version | 2.0 | ||
Erweiterung | ||||
PCIe x4 | Generation | 3 | ||
x4 Signal | 2 St | |||
PCIe x16 | x8 Signal | Generation | 3 | |
Anzahl | 2 St | |||
PCIe Schnittstellen | 2x PCIe x4, 2x PCIe x16 | |||
M.2 | Slot 1 | Key ID | A | |
Interface | PCIe ×1 (Gen. 3), USB 2.0, WLAN | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 3) | |||
Unterstütze Abmaße | 2280 | |||
Slot 3 | Key ID | B | ||
Interface | 4G/LTE, PCIe ×1 (Gen. 3) | |||
Unterstütze Abmaße | 3042 | |||
Slot 4 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 3) | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | A, B, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219 PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 4 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 2 St | |
USB | USB v3.2 (Gen 1) | 6 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Stromversorgung | ||||
Typ (Eingang) | AC | Einschübe | 1 St | |
Stromaufnahme Maximal | 250 W | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Aktiv | Lüfter | Anzahl | 3 St | |
Lüfter | Anzahl | 1 St | ||
Einschübe | ||||
Extern | Einbauschacht 2.5" | 4 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb (SSD) | -20° bis 50°C | ||
Betrieb (HDD) | -20° bis 40°C | |||
Lagerung | -20° bis 60°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | AI System | ||
Breite | 357 mm | |||
Tiefe | 230 mm | |||
Höhe | 88 mm | |||
Vibration | Vibration | 1,5G, 5-500Hz | ||
Schock | Messdaten | 10G, halben Sinusschwingung, 11 ms Dauer | ||
Gewicht | 4000 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Slot Brackets | Low Profile | 4 St | ||
Antennenlöcher | 4 St | |||
Farbe | Schwarz | |||
Material | Stahl | |||
Montageoption | Rackmontage, Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
