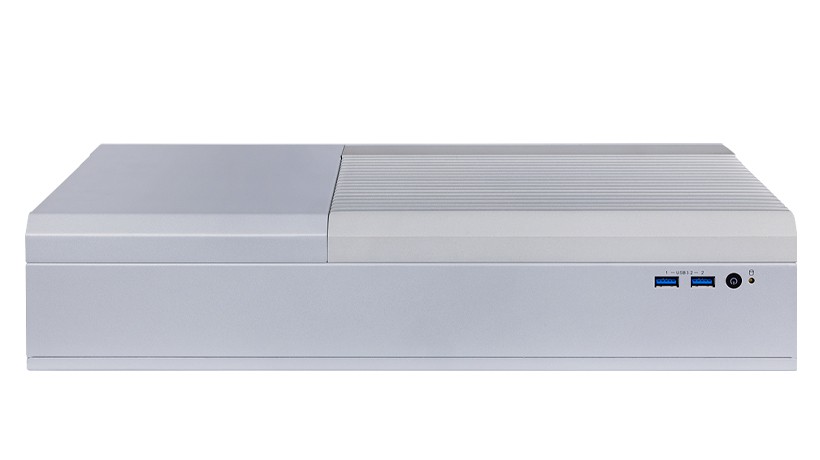

Bahn (Railway) System
// Bahn (Railway) System
// [Intel Core i5-11500HE | Intel Core i7-11850HE]
// Passiv gekühlt
// [8 GB | 16 GB] RAM
// 2 x Anzeige
// 2 x Seriell
// 2 x USB (Frontseite)
// 3 x USB (Rückseite)
// 3 x G-LAN (Rückseite)
// 2 x Mini-PCIe
// 3 x M.2 Slot
// 24~110V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

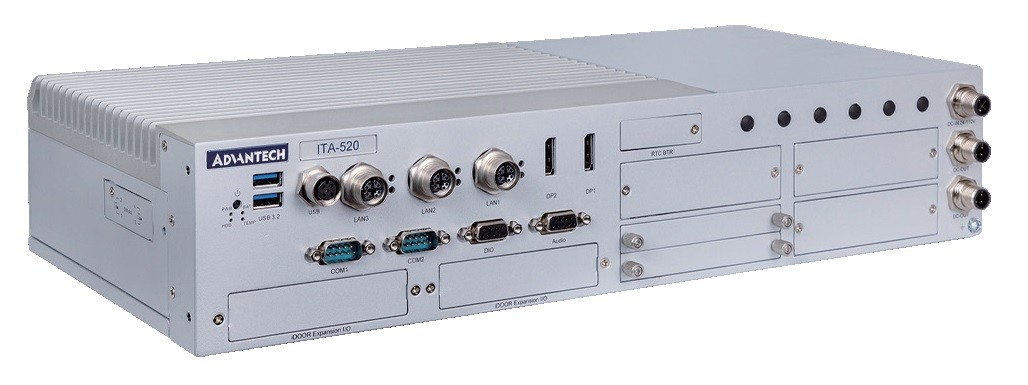

Basismodul: Advantech ITA-520
Allgemein | ||||
SKU / Artikelnummer | ITA-520 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Tiger Lake | |||
Nummer | Intel Core i5-11500HE, Intel Core i7-11850HE | |||
CPU Kerne | 6 St, 8 St | |||
Threads | 12 St, 16 St | |||
Sockel | BGA 1787 | |||
Max. Turbo-Taktfrequenz | 4,5 GHz, 4,7 GHz | |||
Cache | 12 MB, 24 MB | |||
Thermal Design Power (TDP) | 45 W | |||
Chipsatz | Intel RM590E | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
DIMM Type | Unbuffered SO-DIMM | |||
DIMM Datarate | 3200 MT/s | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 32 GB | |||
ECC | wird nicht unterstützt | |||
Speicher onBoard | 8 GB, 16 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Erweiterung | ||||
PCIe x16 | x16 Signal | Anzahl (Interface) | 1 St | |
Mini-PCIe | Volle Bautiefe | Anzahl | 2 St | |
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 1x PCIe x16, 2x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | B + M | |
Interface | 4G/LTE | |||
Unterstütze Abmaße | 3042, 3052 | |||
Slot 2 | Key ID | B + M | ||
Interface | 4G/LTE | |||
Unterstütze Abmaße | 3042, 3052 | |||
Slot 3 | Key ID | A, E | ||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | A, B + M, E | |||
Storage | mSATA | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 3 St | |||
Netzwerk | 3x G-LAN | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
Mini Cool Edge IO (MCIO) | 8i | 1 St | ||
RAID Unterstützung | RAID 0/1/5/10 | |||
Externe I/O (Frontseite) | ||||
USB | USB v3.2 (Gen 1) | 2 St | ||
Externe I/O (Rückseite) | ||||
Anzeige | Displayport | 2 St | ||
Audio | Combo Jack | 1 St | ||
Ethernet | M12 Steckverbinder | 3 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | DB-9 | |||
USB | USB v2.0 | 1 St | ||
USB v3.2 (Gen 1) | 2 St | |||
M12 Steckverbinder | Ja | |||
SIM | Anzahl | 4 St | ||
Formfaktor (Slot) | Micro SIM | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 24~110V | |||
Anschluss | M12 | |||
Stromversorgung - Eingang | DC: 24~110V | |||
Typ (Ausgang) | DC | Weitbereich | Nein | |
Bereich | 24V | |||
Anschluss | M12 | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 2 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 70°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Bahn (Railway) System | ||
Breite | 427 mm | |||
Tiefe | 198,7 mm | |||
Höhe | 88 mm | |||
Schutzart (IP) | IP40 (komplett) | |||
Vibration | Referenz Standard | IEC 61373 | ||
Schock | Referenz Standard | IEC 61373 | ||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
System Status | 1 St | |||
Batterie | 1 St | |||
Antennenlöcher | 6 St | |||
Farbe | Weiß | |||
Material | Stahl | |||
Montageoption | Rackmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class A | Ja | ||
CCC | Ja | |||
Weitere Zertifikate / Konformitäten | BSMI, CB, EN 45545, EN 50121-3-2, EN 50155 | |||
RoHS konform | Ja |
