Bahn (Railway) System
// Bahn (Railway) System
// Intel Xeon W-1250TE
// 2,4 GHz
// 16 GB RAM
// 2 x Anzeige
// 1 x Seriell
// 3 x USB (Frontseite)
// 1 x USB (Rückseite)
// 2 x G-LAN (Frontseite)
// 2 x PCIe x4
// 1 x Mini-PCIe
// 3 x M.2 Slot
// 72V / 110V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IBASE MPT-8000RH
Allgemein | ||||
SKU / Artikelnummer | MPT-8000RH | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Comet Lake | |||
Nummer | Intel Xeon W-1250TE | |||
CPU Kerne | 6 St | |||
Threads | 12 St | |||
Sockel | LGA 1200 (H5) | |||
Basis Frequenz | 2,4 GHz | |||
Max. Turbo-Taktfrequenz | 3,8 GHz | |||
Cache | 12 MB | |||
Thermal Design Power (TDP) | 35 W | |||
Lithographie | 14 nm | |||
Chipsatz | Intel W480E | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2666 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 128 GB | |||
Speicher onBoard | 16 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics 630 | |||
Erweiterung | ||||
PCIe x4 | x4 Signal | 2 St | ||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
PCIe Schnittstellen | 2x PCIe x4, 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, 5G / Storage Module, UIM, USB 2.0, USB 3.0 | |||
Unterstütze Abmaße | 3042 | |||
Slot 2 | Key ID | B | ||
Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 3042, 3052 | |||
Slot 3 | Key ID | M | ||
Interface | SATA III, WLAN | |||
Unterstütze Abmaße | 2230, 2280 | |||
Slot 4 | Key ID | M | ||
Interface | NVMe, WLAN | |||
Unterstütze Abmaße | 3042, 3052 | |||
Slot 5 | Key ID | E | ||
Interface | CNVi, WLAN | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, M | |||
Storage | M.2, Micro-SD | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1/5 | wird unterstützt | ||

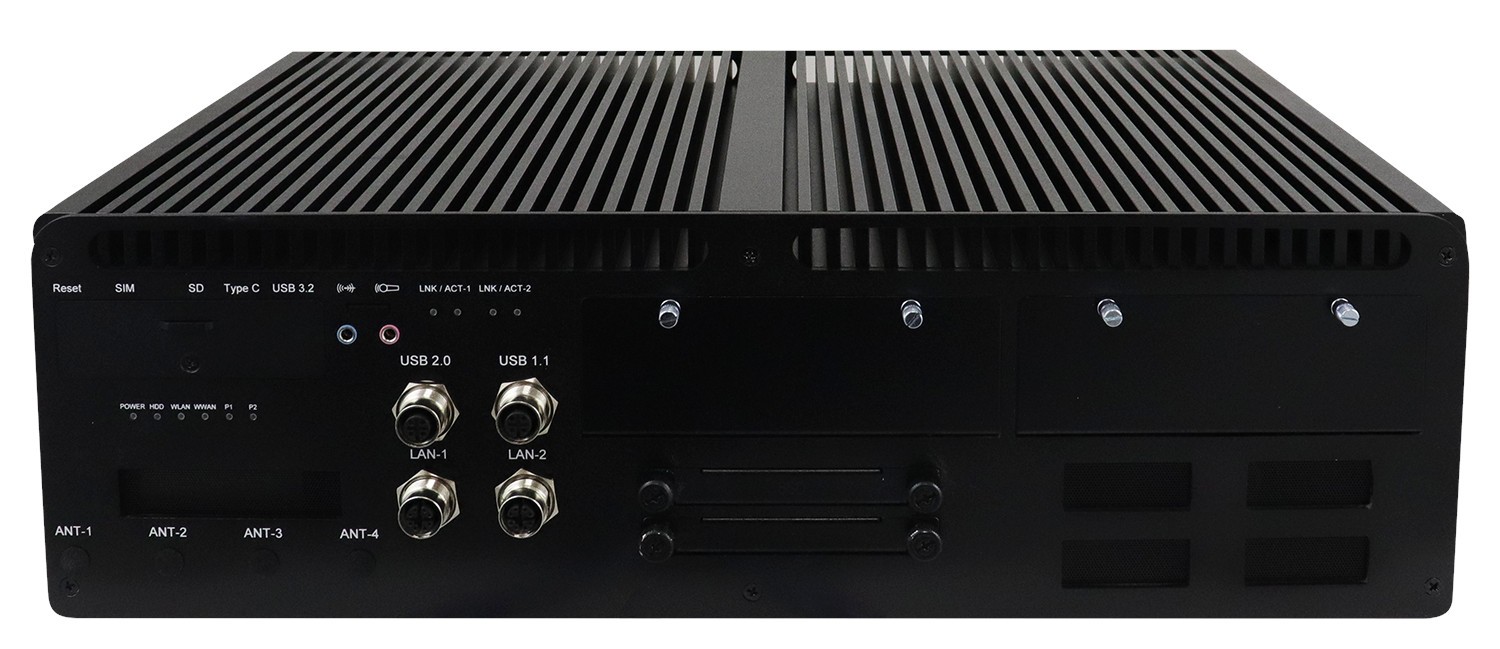

Externe I/O (Frontseite) | ||||
Anzeige | DP USB-C | 1 St | ||
Audio | Line-In | 1 St | ||
Mic-In | 1 St | |||
Ethernet | M12 Steckverbinder | 2 St | ||
USB | USB v1.1 (M12) | 1 St | ||
USB v2.0 | 1 St | |||
USB v3.2 (Gen 2) | 1 St | |||
M12 Steckverbinder | Ja | |||
SIM Card Slot | 2 St | |||

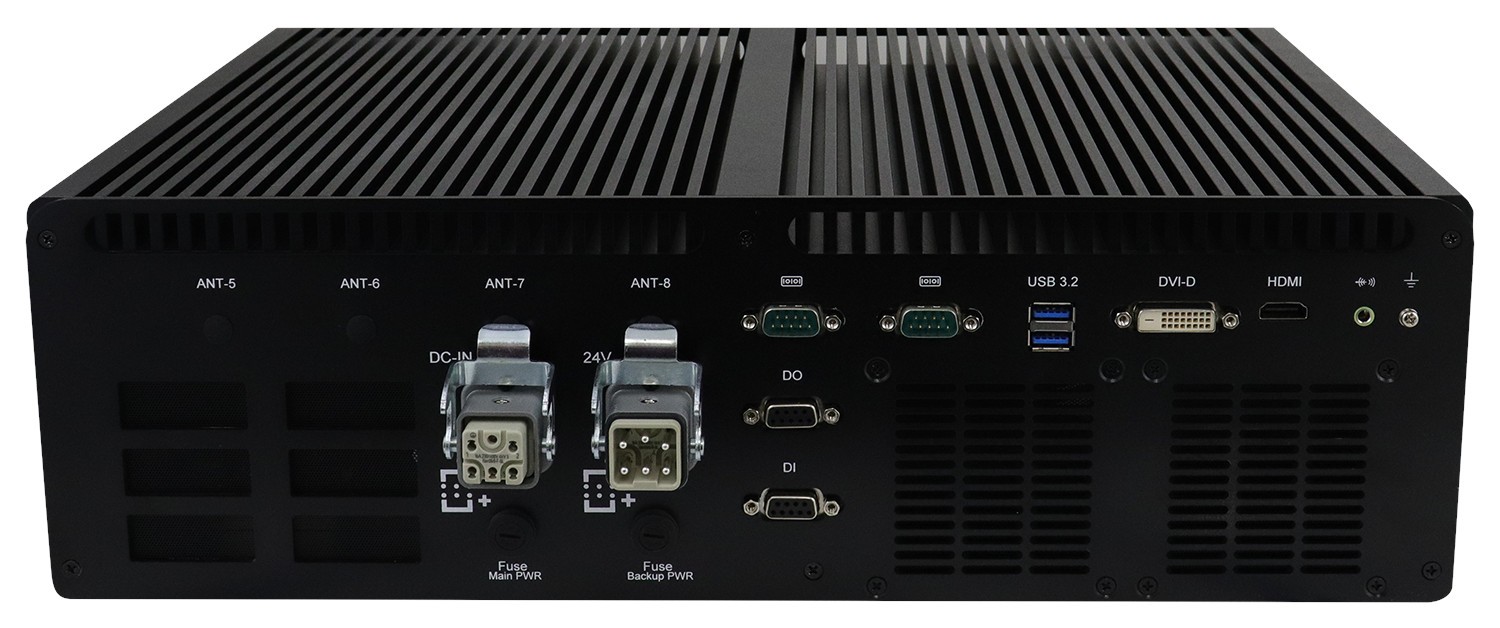

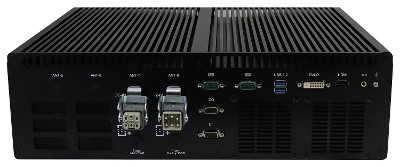

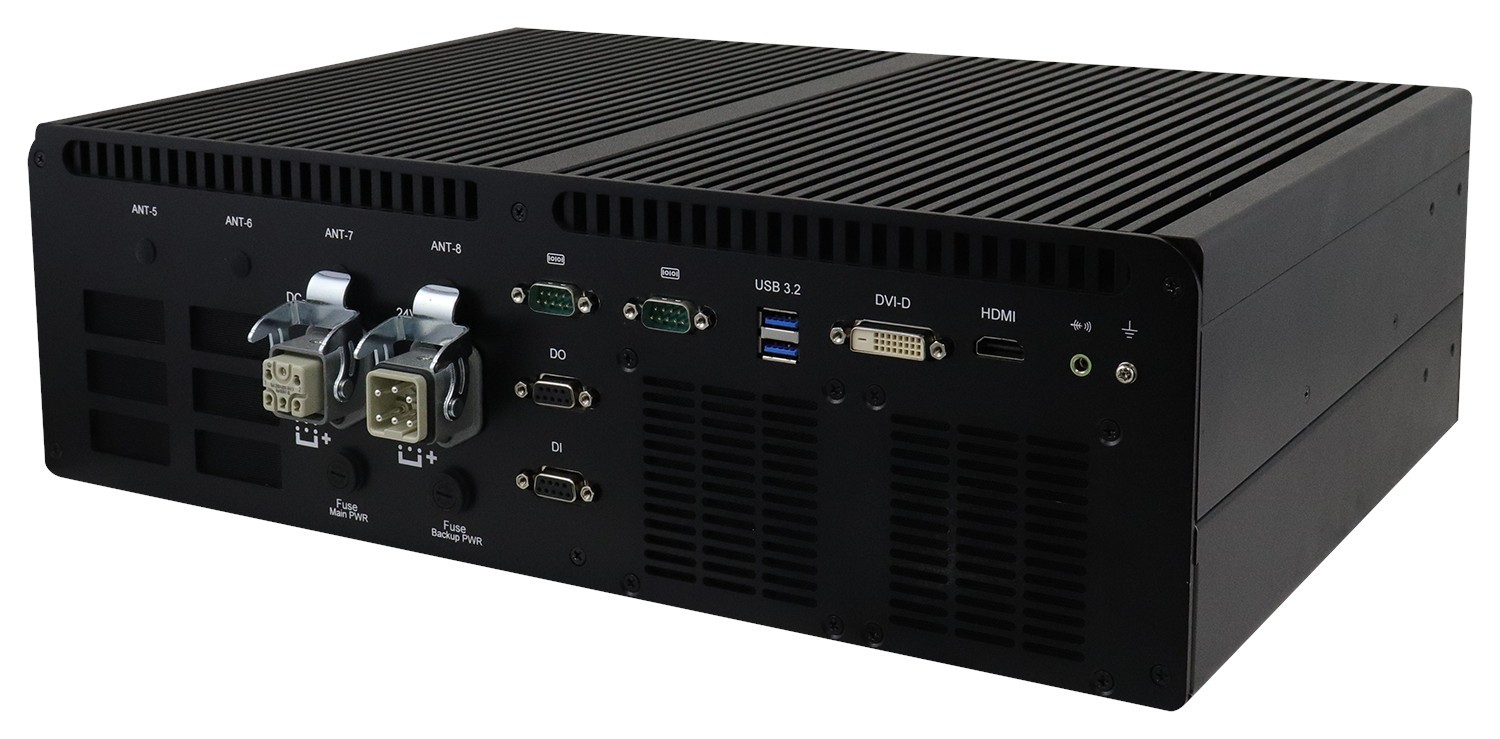

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
DVI | DVI-D Signal | 1 St | ||
Audio | Line-Out | 1 St | ||
Seriell | RS-422 / 485 | DB-9 | 1 St | |
RS-485 | DB-9 | 1 St | ||
Digital I/O | Anzahl | 2 St | ||
Bits | 8-Bit | |||
Anschluss | DB-9 | |||
USB | USB v3.2 (Gen 1) | 1 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 72V / 110V | |||
Anschluss | Staubli Stecker | |||
DC | Weitbereich | Nein | ||
Bereich | 24V | |||
Stromversorgung - Eingang | DC: 72V / 110V,24V | |||
Einschübe | ||||
Extern | Einbauschacht 2.5" | 2 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Bahn (Railway) System | ||
Breite | 482 mm | |||
Tiefe | 308 mm | |||
Höhe | 132 mm | |||
Vibration | Referenz Standard | IEC 61373 | ||
Schock | Referenz Standard | IEC 61373 | ||
Bedienelemente | Reset | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
GbE | 1 St | |||
WiFi | 1 St | |||
System Status | 2 St | |||
Antennenlöcher | 8 St | |||
Farbe | Schwarz | |||
Material | Stahl | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | EN 45545, EN 50155 | |||
RoHS konform | Ja |
