Barebone PC
// Barebone PC
// Intel Coffee Lake
// 3 x Anzeige
// 6 x Seriell
// 2 x USB (Frontseite)
// 10 x USB (Rückseite)
// 4 x G-LAN (Rückseite)
// 2 x PCIe x8
// 2 x M.2 Slot
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue BMX-T540-C246
Allgemein | ||||
SKU / Artikelnummer | BMX-T540-C246 | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Serie | Intel Coffee Lake | ||
Sockel | LGA 1151 (H4) | |||
Thermal Design Power (TDP) | 95 W | |||
Lithographie | 14 nm | |||
Chipsatz | Intel C246 | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2666 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
VGA | Maximale Auflösung | 2048 x 1536 bei 60 Hz | ||
HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
Erweiterung | ||||
PCIe x8 | x8 Signal | 2 St | ||
PCIe Schnittstellen | 2x PCIe x8 | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×4 | |||
Unterstütze Abmaße | 2242, 2260, 2280 | |||
Slot 2 | Key ID | E | ||
Interface | CNVi, WLAN | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 3 St | |||
Netzwerk | 4x G-LAN | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1/5/10 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1/5/10 | |||

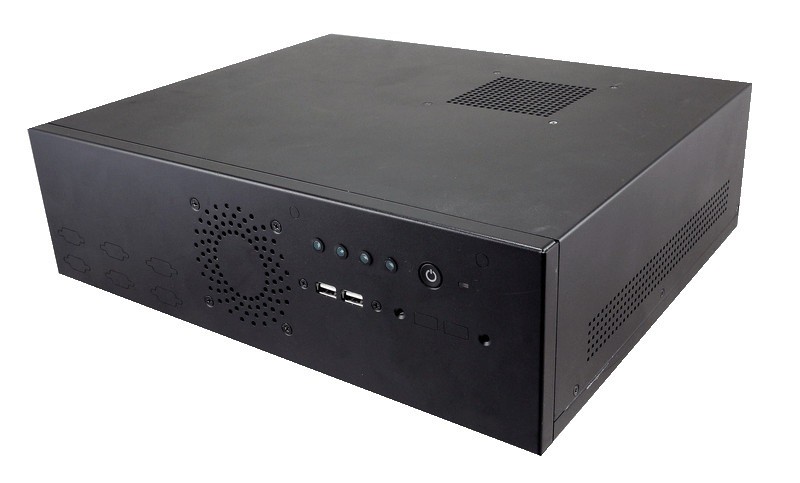

Externe I/O (Frontseite) | ||||
USB | USB v2.0 | 2 St | ||

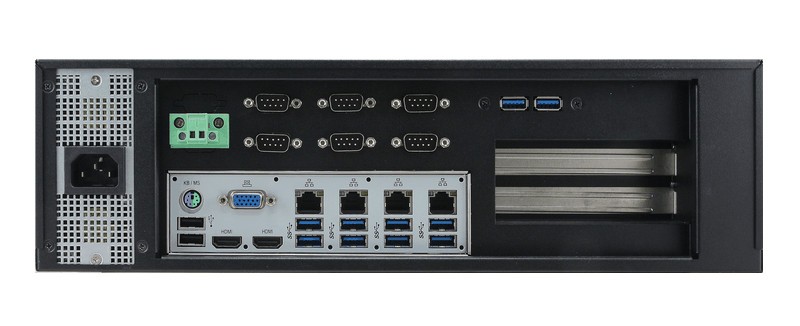

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
HDMI | 2 St | |||
Ethernet | RJ-45 | 4 St | ||
PS/2 | mini-DIN-6 | 1 St | ||
Seriell | RS-232 | DB-9 | 6 St | |
USB | USB v2.0 | 2 St | ||
USB v3.1 Gen. 1 | 8 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9665 | |||
Stromversorgung | ||||
Typ (Eingang) | AC | Bereich | 100~240V | |
Einschübe | 1 St | |||
Anschluss | C14 | |||
Stromversorgung - Eingang | AC: 100~240V | |||
Stromaufnahme Maximal | 400 W | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 2 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 40°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Barebone PC | ||
Breite | 372 mm | |||
Tiefe | 307 mm | |||
Höhe | 107 mm | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 10G, halben Sinusschwingung, 11 ms Dauer | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 6400 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Slot Brackets | Standard | 2 St | ||
Farbe | Schwarz | |||
Material | Aluminium, Stahl | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Windows, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
