Barebone PC
// Barebone PC
// Intel Alder Lake / Raptor Lake
// Aktiv (Lüfterkühlung) cooled
// 2 x Display
// [5 | 6] x USB (Front page)
// 2 x G-LAN (Front page)
// 1 x PCIe x16
// 3 x M.2 Slot
// 12~28V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

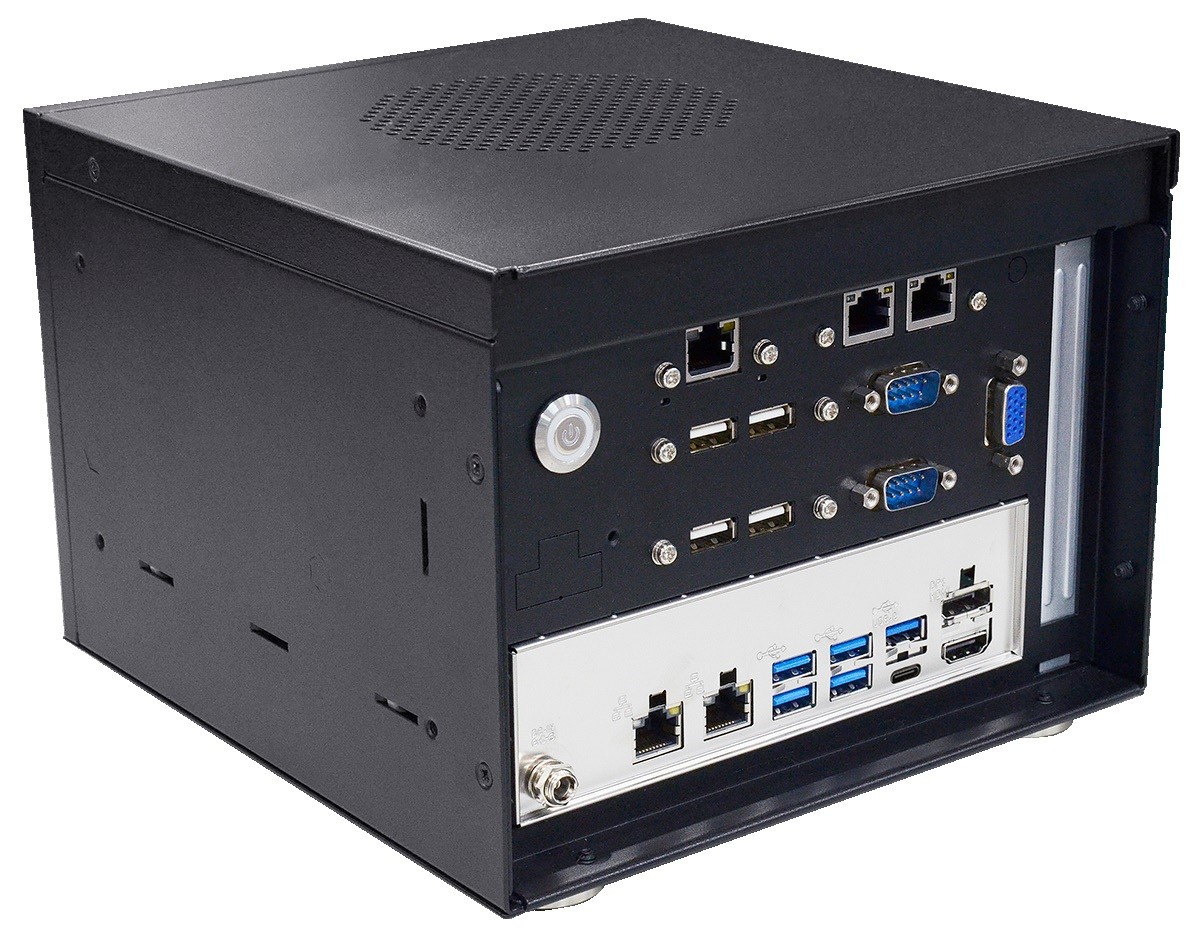

Basismodul: DFI WM130-RPS
| Allgemein | ||||
| SKU / Artikelnummer | WM130-RPS | |||
| Produktgrunddaten | ||||
| Hersteller | DFI | |||
| Produkt-ID | 750-WM13000-000G, 750-WM13000-100G | |||
| System | ||||
| Prozessor | Serie | Intel Alder Lake / Raptor Lake | ||
| Sockel | LGA 1700 (H6) | |||
| Thermal Design Power (TDP) | 65 W | |||
| Chipsatz | Intel H610E, Intel R680E | |||
| Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM Datarate | 5600 MT/s | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 64 GB | |||
| ECC | wird nicht unterstützt, wird unterstützt | |||
| BIOS | AMI SPI 256 Mbit | |||
| Grafik | ||||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Version | 2.0 | |||
| Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
| Version | 1.2 | |||
| Dual Mode | Ja (DP++) | |||
| Erweiterung | ||||
| PCIe x16 | x16 Signal | Generation | 5 | |
| Anzahl | 1 St | |||
| PCIe Schnittstellen | 1x PCIe x16 | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen. 4), SATA III | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | WLAN | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE | |||
| Unterstütze Abmaße | 2242, 3042, 3052 | |||
| M.2 Key IDs | B, E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipsatz | Realtek ALC888 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps), Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 1x G-LAN | |||
| Interne I/O | ||||
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
| Externe I/O (Frontseite) | ||||
| Anzeige | HDMI | 1 St | ||
| DP++ | 1 St | |||
| DP USB-C | 1 St, - | |||
| Ethernet | RJ-45 | 2 St | ||
| USB | USB v2.0 | 1 St, - | ||
| USB v3.2 (Gen 1) | 2 St, - | |||
| USB v3.2 (Gen 2) | 2 St, 5 St | |||
| USB v3.2 (Gen 2, Type C) | 1 St, - | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~28V | |||
| Anschluss | Hohlstecker (verschraubt) | |||
| Stromversorgung - Eingang | DC: 12~28V | |||
| Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
| Kühlung | ||||
| Umsetzung | Aktiv (Lüfterkühlung) | |||
| Aktiv | Lüfter | Anzahl | 1 St | |
| Durchmesser | 80 mm | |||
| Filtermatte | Filtermatte | Ja | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -5° bis 50°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | Barebone PC | ||
| Breite | 200 mm | |||
| Tiefe | 145,8 mm | |||
| Höhe | 210,6 mm | |||
| Vibration | Vibration | 3G, 10~500 Hz | ||
| mit SSD | 5~500 HZ, 1G | |||
| Schock | Messdaten | 3G, halben Sinusschwingung, 11 ms Dauer | ||
| Sturzprüfung | Referenz Standard | ISTA-1A | ||
| Bedienelemente | Power | 1 St | ||
| Statusanzeigen | Power | 1 St | ||
| Slot Brackets | Standard | 1 St | ||
| Antennenlöcher | 2 St | |||
| Farbe | Schwarz | |||
| Material | Stahl | |||
| Montageoption | Wandmontage | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
| Unterstützte BS | Windows Embedded | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| RoHS konform | Ja | |||
