Digital Signage System
// Digital Signage System
// [Intel Core Ultra 5 Prozessor 125H | Intel Core Ultra 5 Prozessor 135H]
// Passiv cooled
// 4 x Display
// 1 x Serial
// 2 x USB (Front page)
// 2 x USB (Back side)
// 2 x G-LAN (Back side)
// 2 x M.2 Slot
// 19V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Advantech DS-380
Allgemein | ||||
SKU / Artikelnummer | DS-380 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Serie | Intel Meteor Lake | ||
Nummer | Intel Core Ultra 5 Prozessor 125H, Intel Core Ultra 5 Prozessor 135H | |||
CPU Kerne | 14 St | |||
Threads | 18 St | |||
Sockel | BGA 2049 | |||
Performance-core Grundtaktfrequenz | 1,2 GHz, 1,7 GHz | |||
Performance-core Max Turbo Frequenz | 4,5 GHz, 4,6 GHz | |||
Efficient-core Grundtaktfrequenz | 0,7 GHz, 1,2 GHz | |||
Efficient-core Max Turbo Frequenz | 3,6 GHz | |||
Cache | 18 MB | |||
Grundleistungsaufnahme des Prozessors | 28 W | |||
Maximale Turbo-Leistungsaufnahme | 115 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
DIMM Datarate | 5600 MT/s | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 48 GB | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
Intel vPro Plattformqualifizierung | -, Ja | |||
AI/KI | ||||
Performance | TOPS (INT8) | 11 | ||
Grafik | ||||
Prozessor | Intel Arc Graphics | |||
Bildschirme (Multidisplay) | 4 Displays | |||
HDMI | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | NVMe | |||
Unterstütze Abmaße | 2242 | |||
Slot 2 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||

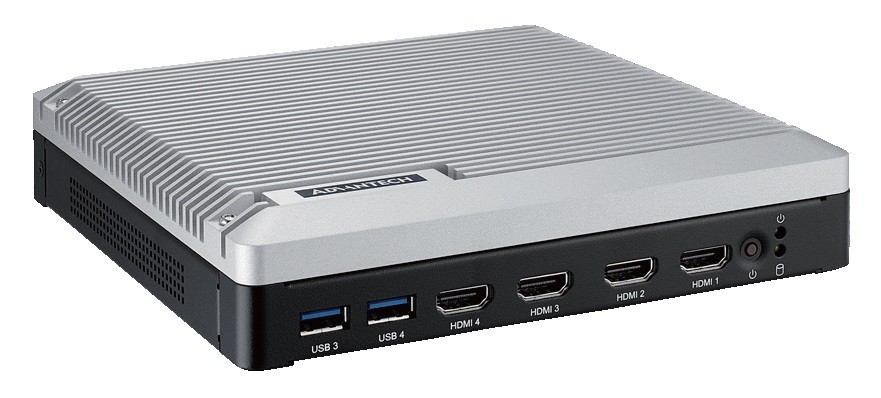

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 4 St | ||
USB | USB v3.2 (Gen 1) | 2 St | ||
Infrarot Port | 1 St | |||

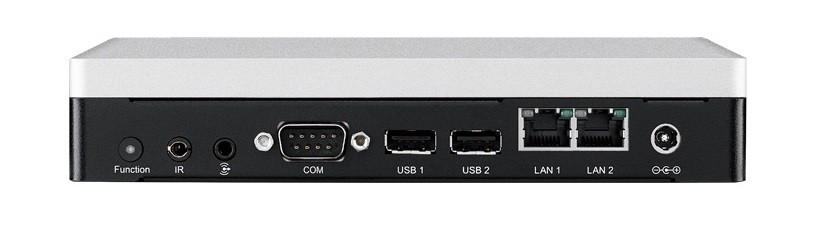

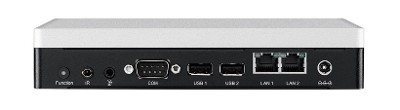

Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v2.0 | 2 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | fTPM 2.0 (Firmware Simulation) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 19V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 19V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 50°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Digital Signage System | ||
Breite | 180 mm | |||
Tiefe | 177 mm | |||
Höhe | 38 mm | |||
Gewicht | 2000 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St, - | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Farbe | Schwarz / Silber | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | BSMI, CB, UKCA | |||
RoHS konform | Ja |
