Digital Signage System
// Digital Signage System
// Intel Celeron J6412
// 2 GHz
// [Aktiv (Lüfterkühlung) | Passiv] cooled
// [4 GB | 8 GB] RAM
// 2 x Display
// 2 x Serial
// [2 | 6] x USB (Back side)
// 2 x G-LAN (Back side)
// 2 x M.2 Slot
// 19V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

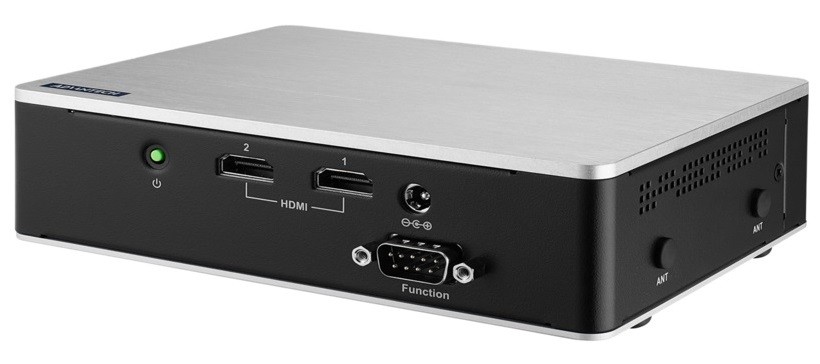

Basismodul: Advantech DS-450
Allgemein | ||||
SKU / Artikelnummer | DS-450 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Elkhart Lake | |||
Nummer | Intel Celeron J6412 | |||
CPU Kerne | 4 St | |||
Threads | 4 St | |||
Sockel | BGA 1493 | |||
Basis Frequenz | 2 GHz | |||
Max. Turbo-Taktfrequenz | 2,6 GHz | |||
Cache | 1,5 MB | |||
Thermal Design Power (TDP) | 10 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR4 | ||
Maximaler Ausbau | 8 GB | |||
Speicher onBoard | 4 GB, 8 GB | |||
Storage | Solid State Drive (M.2) | 128 GB, - | ||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
HDMI | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | SATA III | |||
Unterstütze Abmaße | 2242 | |||
Slot 2 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | M | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Realtek RTL8119I (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 2 St | ||
Seriell | RS-232 | DB-9 | 2 St | |
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | DB-9 | |||
Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 2 St | ||
USB | USB v2.0 | 2 St, 6 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 19V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 19V | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung), Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 45°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Digital Signage System | ||
Breite | 160 mm | |||
Tiefe | 115 mm | |||
Höhe | 44 mm | |||
Gewicht | 700 g | |||
Bedienelemente | Power | 1 St | ||
Remote | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 2 St | |||
Farbe | Schwarz / Silber | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | -, wird unterstützt | ||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | BSMI, CB, Radio Equipment Directive (RED), UKCA | |||
RoHS konform | Ja |
