Digital Signage System
// Digital Signage System
// Intel Core i7-1360P
// 4 x Anzeige
// 1 x Seriell
// 8 x USB (Frontseite)
// 2 x USB (Rückseite)
// 2 x G-LAN (Frontseite)
// 3 x M.2 Slot
// 12~24V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: GIGAIPC QBiX-Lite-RPLA1360PH-A1
Allgemein | ||||
SKU / Artikelnummer | QBiX-Lite-RPLA1360PH-A1 | |||
Produktgrunddaten | ||||
Hersteller | GIGAIPC | |||
Produkt-ID | 6BQL1360AMR-SI | |||
System | ||||
Prozessor | Serie | Intel Raptor Lake | ||
Nummer | Intel Core i7-1360P | |||
CPU Kerne | 12 St | |||
Threads | 16 St | |||
Sockel | BGA 1744 | |||
Performance-core Max Turbo Frequenz | 5 GHz | |||
Efficient-core Max Turbo Frequenz | 3,7 GHz | |||
Cache | 18 MB | |||
Grundleistungsaufnahme des Prozessors | 28 W | |||
Maximale Turbo-Leistungsaufnahme | 64 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
Frequenz | 5200 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics | |||
Bildschirme (Multidisplay) | 4 Displays | |||
HDMI | Version | 2.1 | ||
Displayport | Version | 1.4 | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×2, SATA III | |||
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | E | ||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | B | ||
Interface | 5G / Storage Module | |||
Unterstütze Abmaße | 3052 | |||
M.2 Key IDs | B, E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||

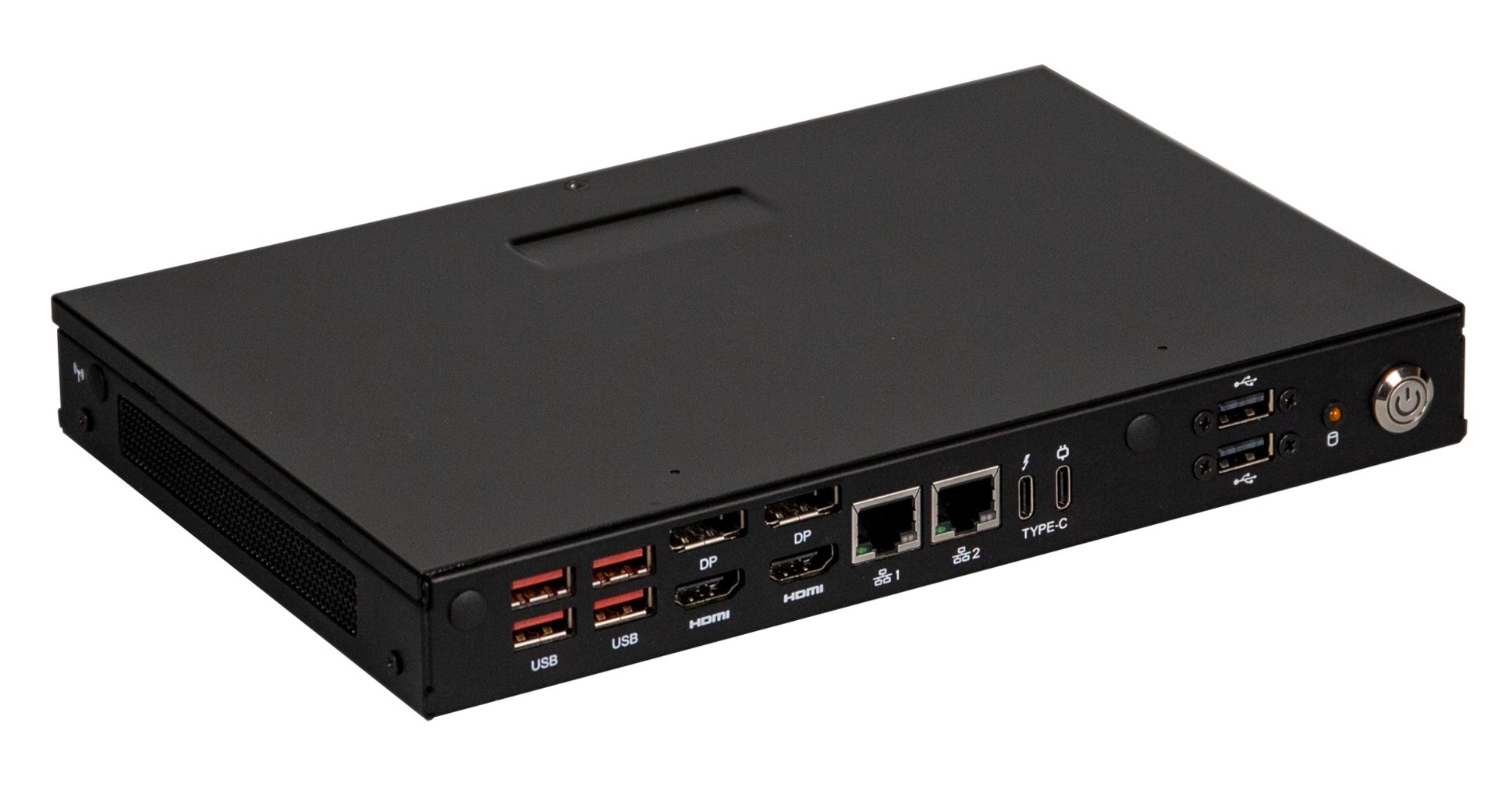

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 2 St | ||
Displayport | 2 St | |||
DP USB-C | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.2 (Gen 2) | 4 St | |||
USB v3.2 (Gen 2, Type C) | 2 St | |||

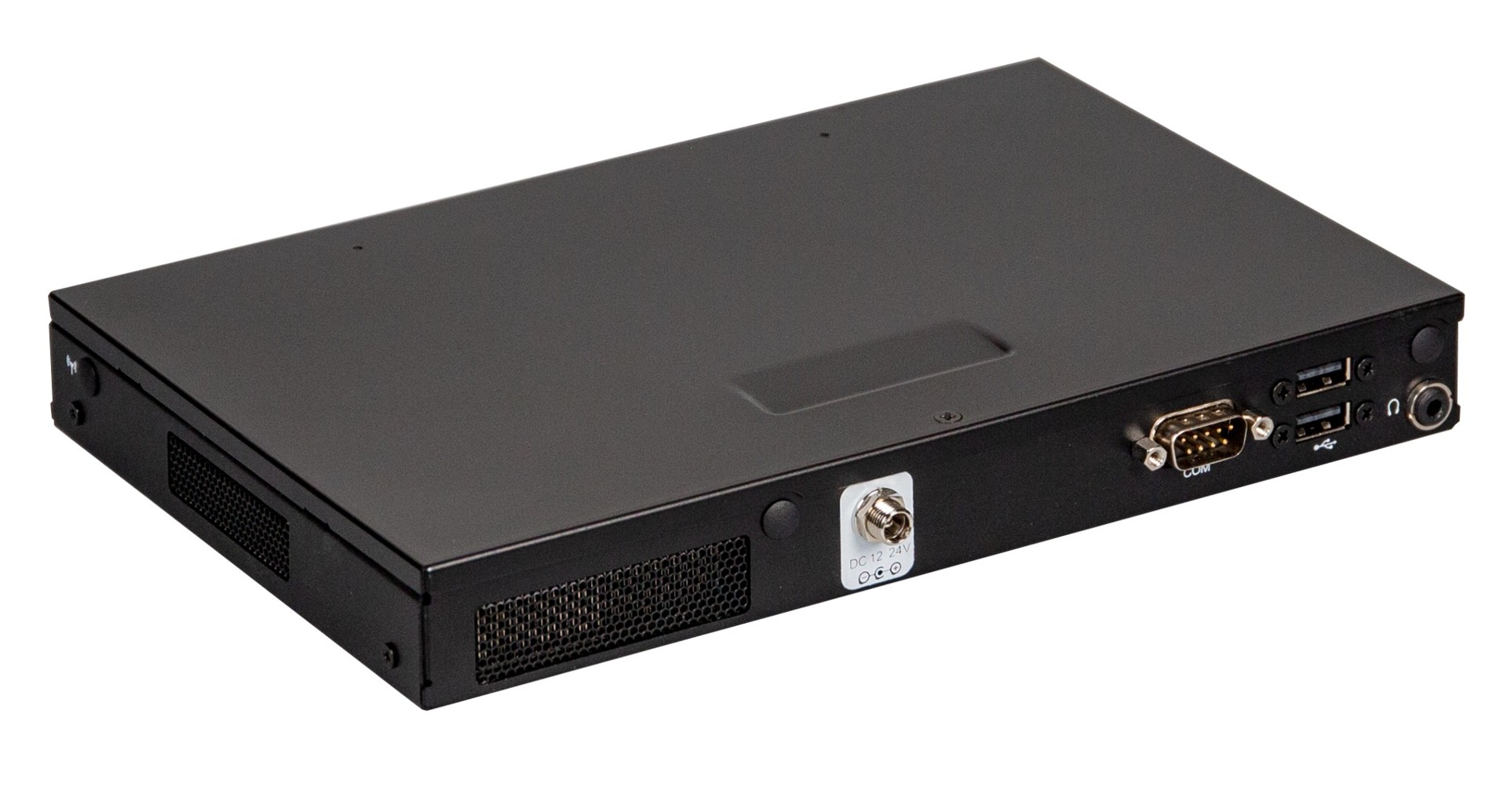

Externe I/O (Rückseite) | ||||
Audio | Speaker-Out | 1 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
USB | USB v2.0 | 2 St | ||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9670 VQ 2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | Hohlstecker (verschraubt) | |||
DC | Anschluss | USB Type C | ||
Stromversorgung - Eingang | DC: 12~24V | |||
Typ (Ausgang) | DC | Anschluss | USB Type C | |
Mechanik / Umgebung | ||||
Abmaße | Formfaktor | Digital Signage System | ||
Breite | 234 mm | |||
Tiefe | 155 mm | |||
Höhe | 30 mm | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 5 St | |||
Farbe | Schwarz |
