Digital Signage System
// Digital Signage System
// [Intel Core i5-1145G7E | Intel Core i7-1185GRE]
// [1,5 | 1,8] GHz
// Passiv gekühlt
// 8 GB RAM
// 3 x Anzeige
// 2 x Seriell
// 4 x USB (Rückseite)
// 1 x G-LAN (Rückseite)
// 3 x M.2 Slot
// 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IBASE SE-603-N DS
Allgemein | ||||
SKU / Artikelnummer | SE-603-N DS | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Tiger Lake | |||
Nummer | Intel Core i5-1145G7E, Intel Core i7-1185GRE | |||
CPU Kerne | 4 St | |||
Threads | 8 St | |||
Sockel | BGA 1449 | |||
Basis Frequenz | 1,5 GHz, 1,8 GHz | |||
Max. Turbo-Taktfrequenz | 4,1 GHz, 4,4 GHz | |||
Cache | 8 MB, 12 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 3200 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Speicher onBoard | 8 GB | |||
Storage | Solid State Drive (M.2) | 128 GB | ||
Storage | Solid State Drive (M.2) 128 GB | |||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics | |||
HDMI | Version | 2.0 | ||
Displayport | Dual Mode | Ja (DP++) | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | 5G / Storage Module | |||
Unterstütze Abmaße | 3052 | |||
Slot 3 | Key ID | M | ||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | B, E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||

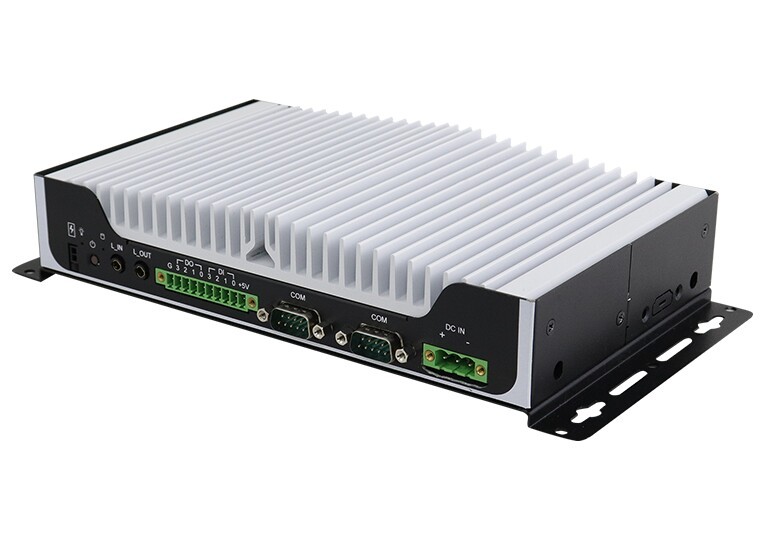

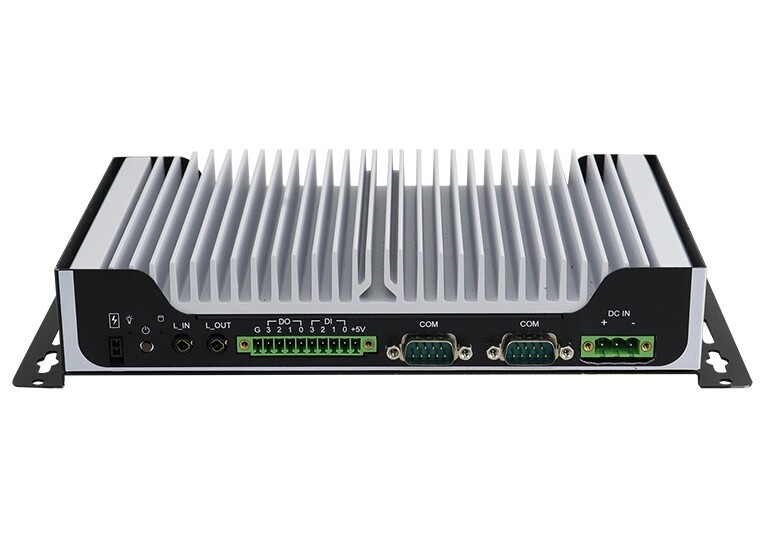

Externe I/O (Frontseite) | ||||
Audio | Line-In | 1 St | ||
Line-Out | 1 St | |||
Seriell | RS-232 | DB-9 | 1 St | |
RS-232 / 422 / 485 | DB-9 | 1 St | ||
Digital I/O | Bits | 8-Bit | ||
Anschluss | 10 Pin Terminal Stecker | |||

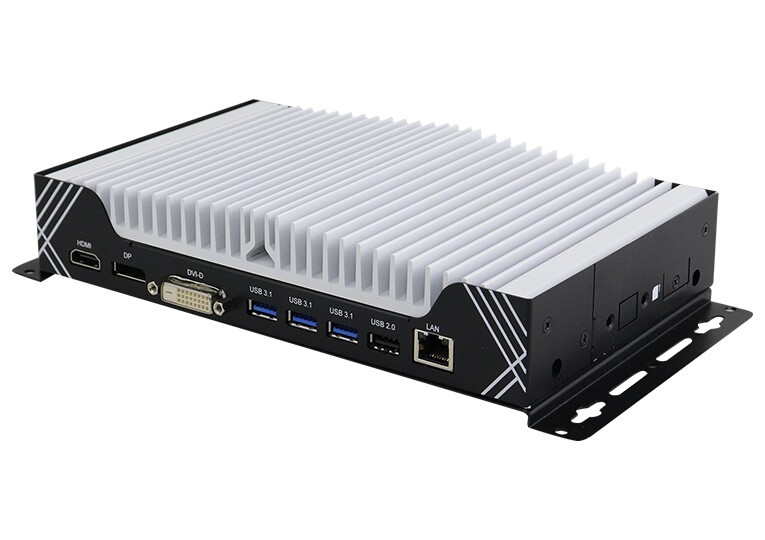

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
DVI | DVI-D Signal | 1 St | ||
DP++ | 1 St | |||
Ethernet | RJ-45 | 1 St | ||
USB | USB v2.0 | 1 St | ||
USB v3.1 Gen. 2 | 3 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 12~24V | |||
Stromaufnahme Maximal | 60 W | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 70°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Digital Signage System | ||
Breite | 224 mm | |||
Tiefe | 134,6 mm | |||
Höhe | 46,5 mm | |||
Vibration | mit SSD | 5G | ||
Gewicht | 1700 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Farbe | Schwarz / Weiß | |||
Material | Aluminium, Stahl | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Linux, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | UKCA | |||
RoHS konform | Ja |
