Digital Signage System
// Digital Signage System
// Intel Alder Lake / Raptor Lake
// 4 x Anzeige
// 2 x Seriell
// 2 x USB (Frontseite)
// 2 x USB (Rückseite)
// 2 x G-LAN (Rückseite)
// 3 x M.2 Slot
// 19V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

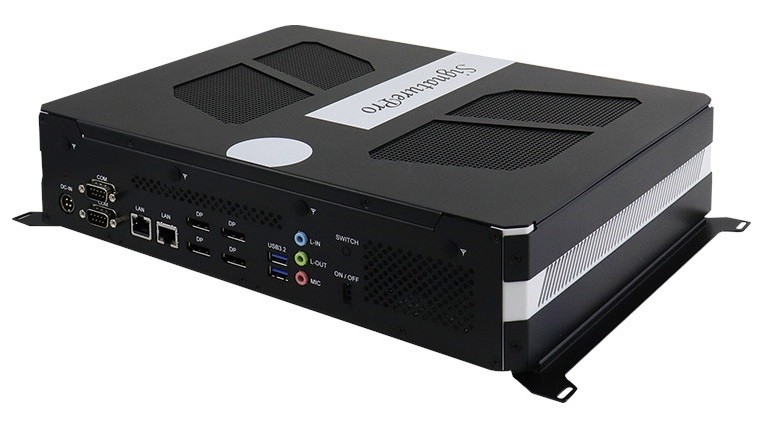

Basismodul: IBASE SI-624-M
Allgemein | ||||
SKU / Artikelnummer | SI-624-M | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Vertikales Segment | Desktop | ||
Serie | Intel Alder Lake / Raptor Lake | |||
Sockel | LGA 1700 (H6) | |||
Chipsatz | Intel Q670 | |||
Speicher | Aufbau | 288 Pin DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 3200 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Grafik | ||||
HDMI | Version | 1.4 | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | 5G / Storage Module | |||
Unterstütze Abmaße | 3052 | |||
Slot 3 | Key ID | M | ||
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
Slot 4 | Key ID | M | ||
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | B, E, M | |||
Mobile PCI Express Module (MXM) | wird unterstützt | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||

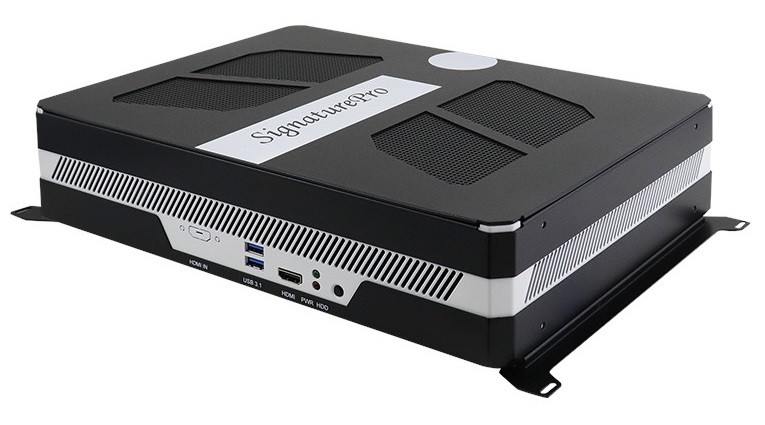

Externe I/O (Frontseite) | ||||
USB | USB v3.0 | 2 St | ||
Console | HDMI Anschluss | |||

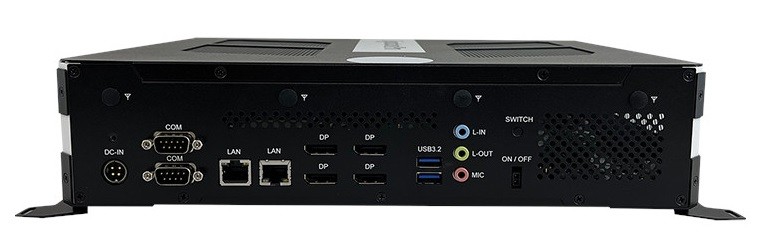

Externe I/O (Rückseite) | ||||
Anzeige | Displayport | 4 St | ||
Audio | Line-In | 1 St | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 2 St | |
USB | USB v3.0 | 2 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 19V | |||
Anschluss | 4 Pin Anschluss (Kycon, Singatron or similar) | |||
Stromversorgung - Eingang | DC: 19V | |||
Stromaufnahme Maximal | 270 W | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 45°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Digital Signage System | ||
Breite | 329,2 mm | |||
Tiefe | 210 mm | |||
Höhe | 73,1 mm | |||
Vibration | Vibration | 5G, 5~500 Hz | ||
Gewicht | 3800 g | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 4 St | |||
Farbe | Schwarz / Weiß | |||
Material | Stahl | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Windows, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
CCC | Ja | |||
RoHS konform | Ja |
