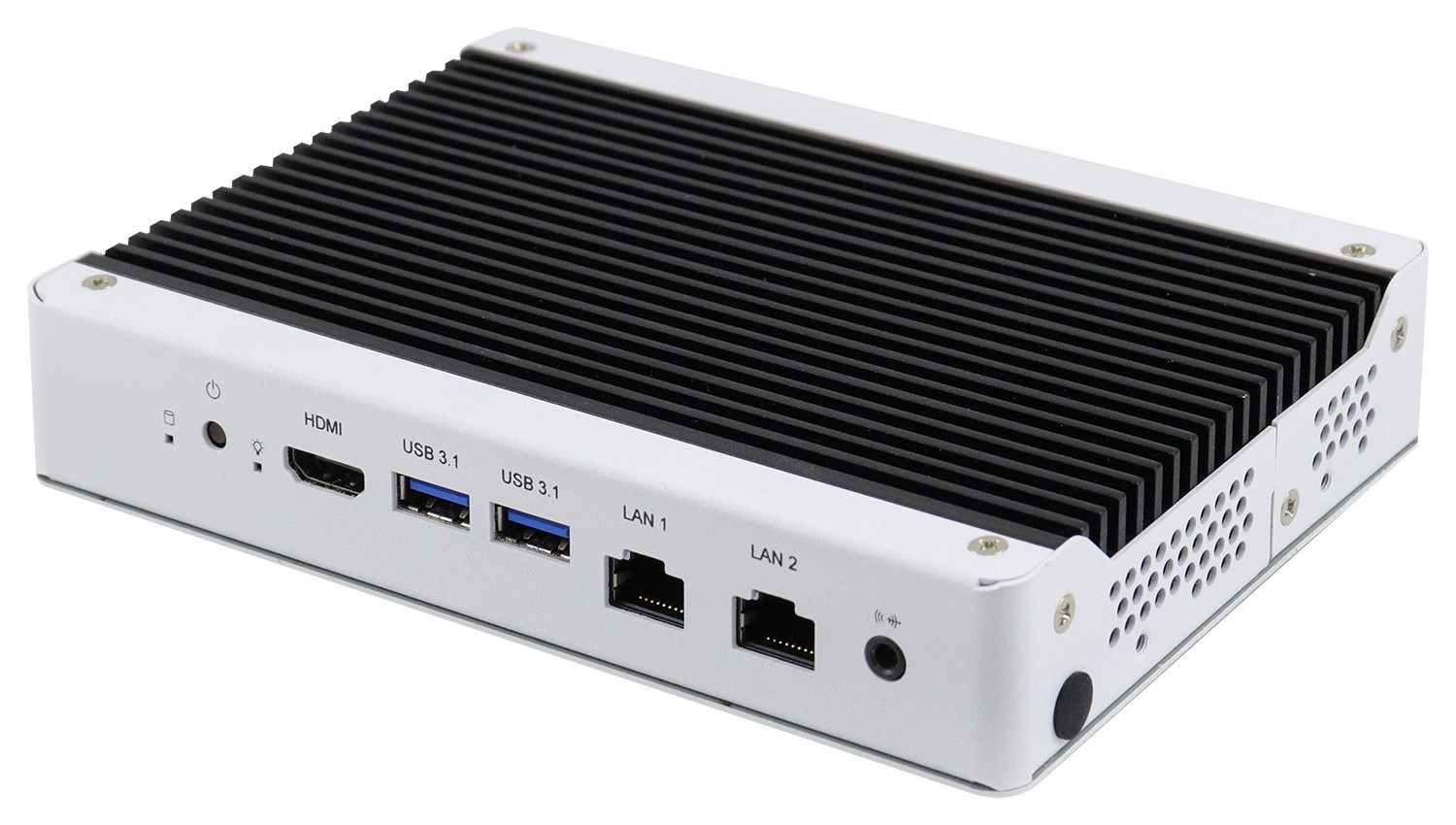

IBASE SI-642-N

SI-642-N4305T, SI-642-N8145T, SI-642-N8365T, SI-642-NT

Digital Signage System

PRODUKT-FEATURES

// Digital Signage System
// [Intel Celeron 4305UE | Intel Core i3-8145UE | Intel Core i5-8365UE | Intel Core i7-8665UE]
// [1,6 | 1,7 | 2 | 2,2] GHz
// Passiv gekühlt
// 8 GB RAM
// 2 x Anzeige
// 1 x Seriell
// 2 x USB (Frontseite)
// 2 x USB (Rückseite)
// 2 x G-LAN (Frontseite)
// 1 x Mini-PCIe
// 3 x M.2 Slot
// 12V

KONFIGURATION

Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration Individualkonfiguration

PRODUKTPREIS

Preise und Lieferzeiten sind für registrierte und angemeldete Kunden sichtbar. Neukunden können diese unverbindlich anfragen.

Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

Basismodul: IBASE SI-642-N

Allgemein
SKU / ArtikelnummerSI-642-NSI-642-N4305T, SI-642-N8145T, SI-642-N8365T, SI-642-NT
Produktgrunddaten
HerstellerIBASE
System
ProzessorSerieIntel Whiskey Lake
NummerIntel Celeron 4305UE, Intel Core i3-8145UE, Intel Core i5-8365UE, Intel Core i7-8665UE
CPU Kerne2 St, 4 St
Threads2 St, 4 St, 8 St
SockelBGA 1528
Basis Frequenz1,6 GHz, 1,7 GHz, 2 GHz, 2,2 GHz
Cache2 MB, 4 MB, 6 MB, 8 MB
Thermal Design Power (TDP)15 W
ChipsatzSoC (System-On-Chip)
SpeicherAufbau260 Pin SO-DIMM DDR4
Frequenz2133 / 2400 MHz
Steckplätze2 St
Maximaler Ausbau32 GB
Speicher onBoard8 GB
StorageSolid State Drive (M.2)128 GB
StorageSolid State Drive (M.2) 128 GB
Grafik
ProzessorIntel UHD Graphics 620
Erweiterung
Mini-PCIeVolle BautiefeAnzahl1 St
PCIe Schnittstellen1x Mini-PCIe
M.2Slot 1Key IDB
Unterstütze Abmaße3042
Slot 2Key IDM
Unterstütze Abmaße2280
Slot 3Key IDE
Unterstütze Abmaße2230
M.2 Key IDsB, E, M
StorageM.2
Netzwerk
G-LANControllerChipsatzIntel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps)
Anzahl1 St
ControllerChipsatzIntel I211AT PCIe (10/100/1000 Mbps)
Anzahl1 St
Netzwerk2x G-LAN

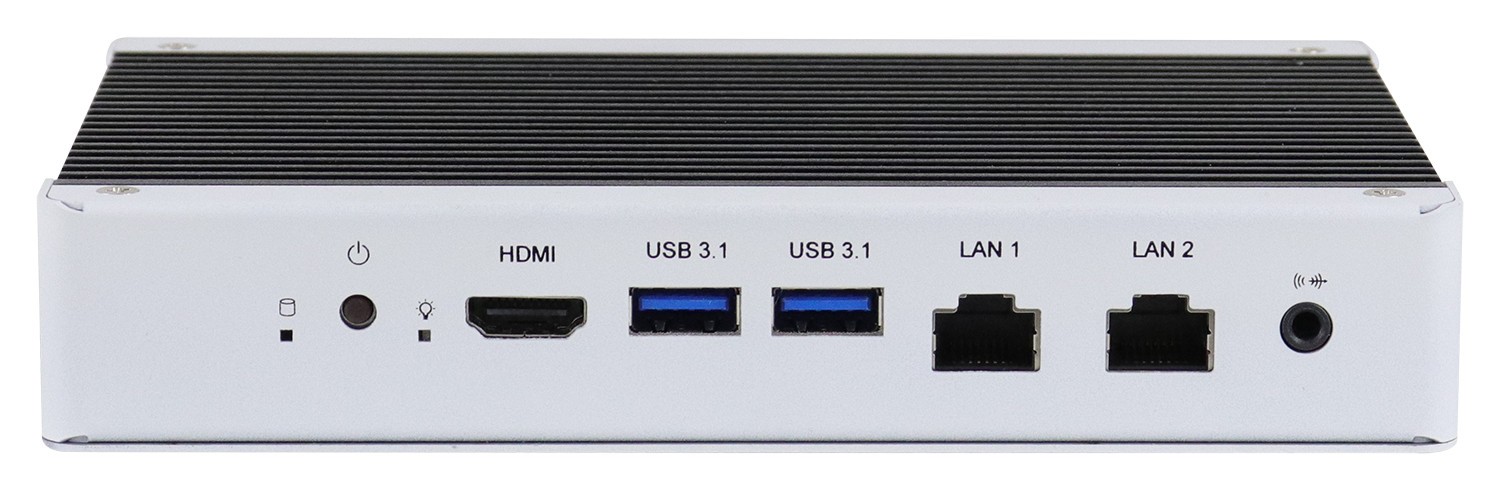

Externe I/O (Frontseite)
AnzeigeHDMI1 St
EthernetRJ-452 St
USBUSB v3.1 Gen. 22 St

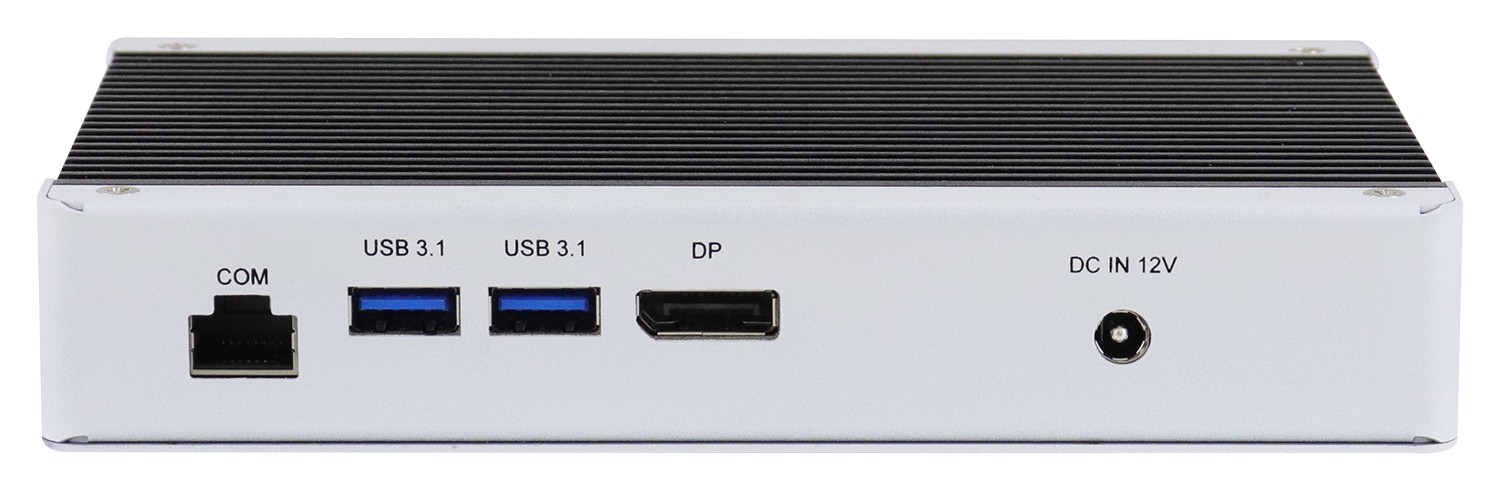

Externe I/O (Rückseite)
AnzeigeDisplayport1 St
SeriellRS-232RJ-451 St
USBUSB v3.1 Gen. 22 St
Watchdog Zeitgeber
Watchdog ZeitgeberJa
Watchdog Zeitgeber (Intervall)Über Software programmierbar (1 - 255 Sekunden)
Sicherheit
Trusted Platform Modul (TPM)v2.0
Stromversorgung
Typ (Eingang)DCBereich12V
AnschlussHohlstecker
Stromversorgung - EingangDC: 12V
Real-Time Clock (RTC) BatterieCR2032 Knopfbatterie
Kühlung
UmsetzungPassiv
PassivWärmemanagementWärmespreizer (Heat Spreader)
Mechanik / Umgebung
TemperaturBetrieb0° bis 45°C
Lagerung-20° bis 80°C
Relative LuftfeuchtigkeitBetrieb10 bis 90%, nicht kondensierend
AbmaßeFormfaktorDigital Signage System
VibrationVibration5G, 5~500 Hz
BedienelementePower1 St
StatusanzeigenStorage1 St
Power1 St
FarbeSchwarz / Silber
MaterialAluminium, Stahl
MontageoptionWandmontage
Betriebssysteme / Software
Windows EmbeddedWindows 10 Enterprise IoT LTSC (2019)wird unterstützt
Unterstützte BSWindows Embedded
Zertifikate / Konformitäten
CEJa
ULJa
FCCClass BJa
CCCJa
RoHS konformJa
Herstellergarantie
Herstellergarantie2 Jahre
