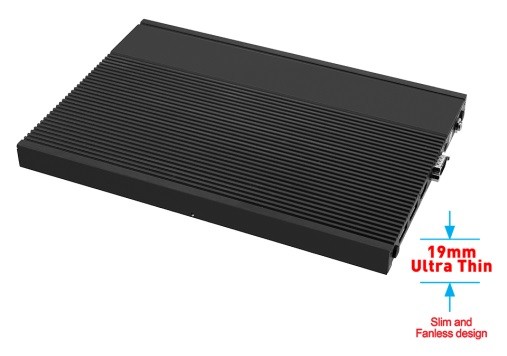

Digital Signage System
// Digital Signage System
// [Intel Core i3-N355 | Intel N97 | Intel N150 | Intel N250]
// Passiv cooled
// 3 x Display
// 1 x Serial
// 4 x USB (Back side)
// 2 x G-LAN (Back side)
// 2 x M.2 Slot
// 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: MSI MS-C926
Allgemein | ||||
SKU / Artikelnummer | MS-C926 | |||
Produktgrunddaten | ||||
Hersteller | MSI | |||
System | ||||
Prozessor | Serie | Intel Alder Lake, Intel Twin Lake | ||
Nummer | Intel Core i3-N355, Intel N97, Intel N150, Intel N250 | |||
CPU Kerne | 4 St, 8 St | |||
Threads | 4 St, 8 St, - | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,6 GHz, 3,8 GHz, 3,9 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 6 W, 12 W, 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 4800 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
BIOS | AMI BIOS | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 2.0 | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | PCIe ×1 (Gen. 3), SATA III, USB 2.0, USB 3.2 Gen2 | |||
Unterstütze Abmaße | 2242, 2280, 3042 | |||
Slot 2 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC897 | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 1 St | ||
Displayport | 2 St | |||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
Externe I/O (Rückseite) | ||||
Audio | Line-Out | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v2.0 | 1 St | ||
USB v3.2 (Gen 1) | 3 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9672 VU 2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 12~24V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 50°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Lagerung | 10 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Digital Signage System | ||
Breite | 180 mm | |||
Tiefe | 255 mm | |||
Höhe | 19 mm | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 50G, 0.5ms | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 1300 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 4 St | |||
Farbe | Schwarz | |||
Montageoption | VESA, Wandmontage | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Windows 11 IoT | wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | BSMI, International Certificate (IC), LVD, RCM, UKCA, VCCI | |||
RoHS konform | Ja |
