Edge AI System
// Edge AI System
// Nvidia Jetson ORIN NANO 4G
// Passiv gekühlt
// 4 GB RAM
// 1 x Anzeige
// 1 x Seriell
// 3 x USB (Frontseite)
// 1 x USB (Rückseite)
// 1 x G-LAN (Frontseite)
// 1 x Mini-PCIe
// 1 x M.2 Slot
// 12~24V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

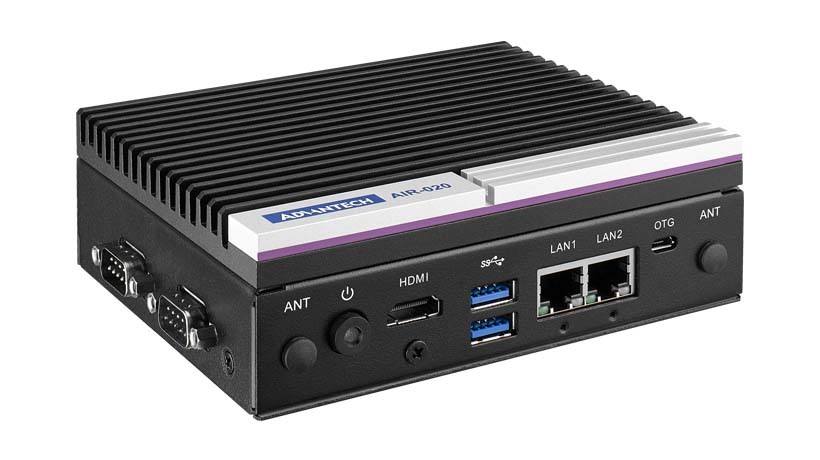

Basismodul: Advantech AIR-020
Allgemein | ||||
SKU / Artikelnummer | AIR-020 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
Produkt-ID | AIR-020N-S4A1 | |||
System | ||||
Prozessor | Serie | ARM Cortex-A57 | ||
Nummer | Nvidia Jetson ORIN NANO 4G | |||
CPU Kerne | 4 St | |||
Speicher | Memory Type | DDR4 | ||
Speicher onBoard | 4 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
Solid State Drive (M.2) | 128 GB | |||
Storage | Embedded MultiMedia Card (eMMC) 16 GB, Solid State Drive (M.2) 128 GB | |||
Grafik | ||||
Prozessor | Nvidia Maxwell | |||
Cores | Cuda | 128 St | ||
Performance | TFLOPS (FP16) | 0,5 | ||
HDMI | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | M | |
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 1 St | ||
USB | USB v3.2 (Gen 1) | 2 St | ||
USBOTG (USB On-The-Go) | 1 St | |||
Externe I/O (Rückseite) | ||||
USB | USB v3.2 (Gen 2, Type C) | 1 St | ||
Externe I/O (seitlich) | ||||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | DB-9 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 12~24V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 50°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Edge AI System | ||
Breite | 138 mm | |||
Tiefe | 110 mm | |||
Höhe | 43,6 mm | |||
Schutzart (IP) | IP40 (komplett) | |||
Gewicht | 850 g | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Power | 1 St | ||
Antennenlöcher | 4 St | |||
Farbe | Schwarz | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Ubuntu 18.04 LTS | ||
Unterstützte BS | Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
CCC | Ja | |||
Weitere Zertifikate / Konformitäten | BSMI, CB | |||
RoHS konform | Ja |
