Edge AI System
// Edge AI System
// [Nvidia Jetson AGX ORIN 32 GB | Nvidia Jetson AGX ORIN 64 GB]
// Passiv cooled
// [32 GB | 64 GB] RAM
// 1 x Display
// 4 x Serial
// 4 x USB (Front page)
// 2 x USB (Back side)
// 2 x USB (internal)
// 2 x G-LAN (Front page)
// 1 x G-LAN (Back side)
// 2 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Advantech AIR-030
Allgemein | ||||
SKU / Artikelnummer | AIR-030 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | ARM Cortex-A78AE | |||
Nummer | Nvidia Jetson AGX ORIN 32 GB, Nvidia Jetson AGX ORIN 64 GB | |||
CPU Kerne | 8 St, 12 St | |||
ARM Instruction set | ARMv8.2-A | |||
Max. Turbo-Taktfrequenz | 0,939 GHz, 1,3 GHz | |||
Grundleistungsaufnahme des Prozessors | 15 W | |||
Maximale Turbo-Leistungsaufnahme | 50 W, - | |||
Speicher | Memory Type | DDR5 | ||
Speicher onBoard | 32 GB, 64 GB | |||
Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
eMMC Version | 5.1 | |||
Storage | Embedded MultiMedia Card (eMMC) 64 GB | |||
Grafik | ||||
Prozessor | Nvidia Ampere | |||
Cores | Cuda | 1792 St, 2048 St | ||
Tensor | 56 St, 64 St | |||
Speicher | Breitband | 256-bit | ||
Performance | TOPS (INT8) | 200, 275 | ||
HDMI | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Version | 2.0 | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | NVMe, PCIe ×2, USB 3.0 | |||
Unterstütze Abmaße | 2280, 3052 | |||
M.2 Key IDs | B, E | |||
Storage | M.2, SD / MMC-Karte | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I225LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 3 St | |||
Netzwerk | 3x G-LAN | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (Typ-A-Buchse) | 2 St | |

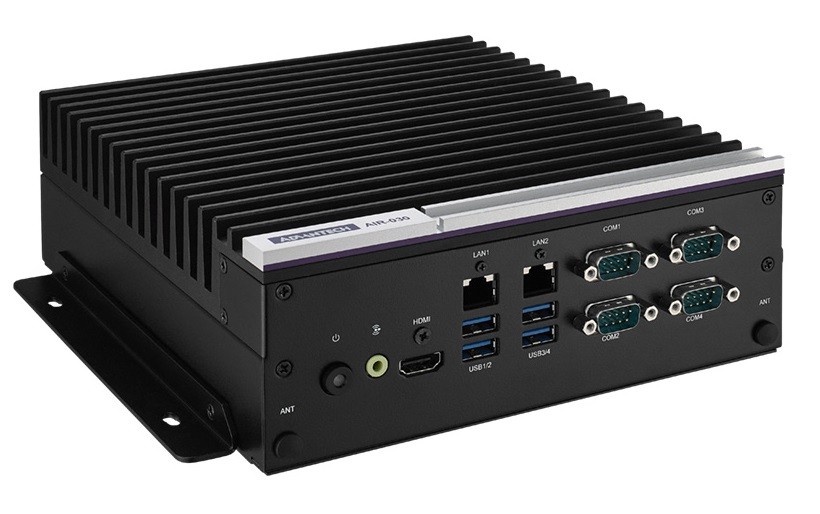

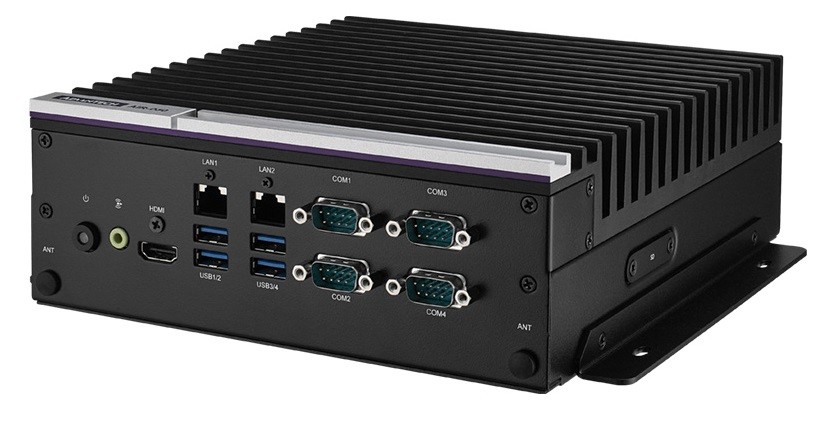

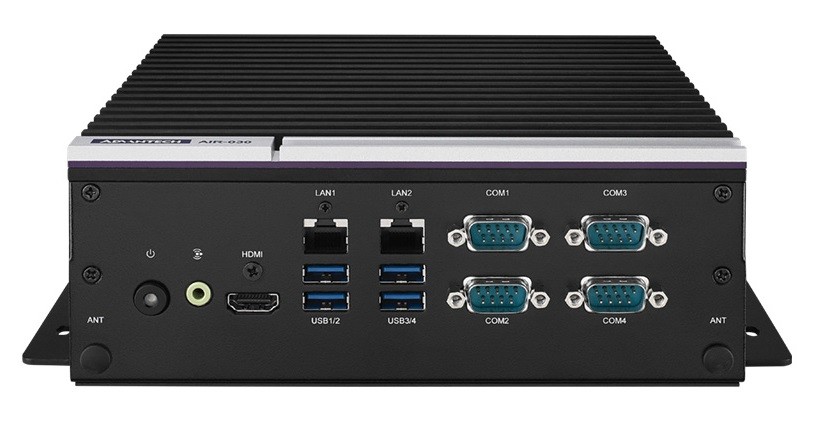

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 1 St | ||
Audio | Line-Out | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 4 St | |
USB | USB v3.2 (Gen 2) | 4 St | ||

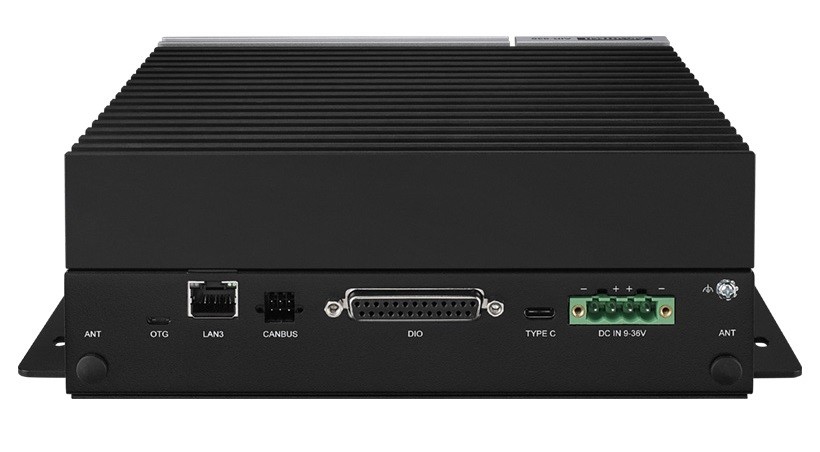

Externe I/O (Rückseite) | ||||
Ethernet | RJ-45 | 1 St | ||
Digital I/O | Anzahl | 1 St | ||
Bits | 16-Bit | |||
Anschluss | DB-26 | |||
USB | USB v3.2 (Gen 2, Type C) | 1 St | ||
USBOTG (USB On-The-Go) | 1 St | |||
CAN Bus | Anschluss | 2 x 3 Pin Stecker | ||
Stück | 1 St | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 4 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 50°C, -10° bis 60°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Edge AI System | ||
Breite | 200 mm | |||
Tiefe | 220 mm | |||
Höhe | 74 mm | |||
Vibration | Vibration | 3G, 10~500 Hz | ||
Gewicht | 3630 g | |||
Bedienelemente | Power | 1 St | ||
Antennenlöcher | 4 St | |||
Farbe | Schwarz | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
CCC | Ja | |||
Weitere Zertifikate / Konformitäten | AWS loT Greengrass Certified, BSMI, EN 61000-6-4 | |||
RoHS konform | Ja |
