Edge AI System
// Edge AI System
// [Intel Core i3-10100E | Intel Core i7-10700E | Intel Xeon W-1290TE]
// [1,8 | 2,9 | 3,2] GHz
// [32 GB | -] RAM
// 2 x Anzeige
// 6 x Seriell
// 8 x USB (Frontseite)
// 2 x G-LAN (Frontseite)
// 2 x PCI
// 1 x PCIe x16
// 1 x Mini-PCIe
// 1 x M.2 Slot
// 12~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

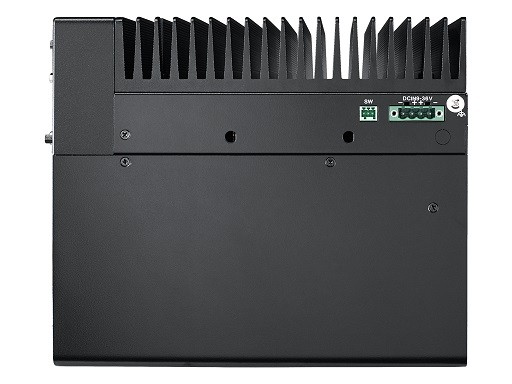

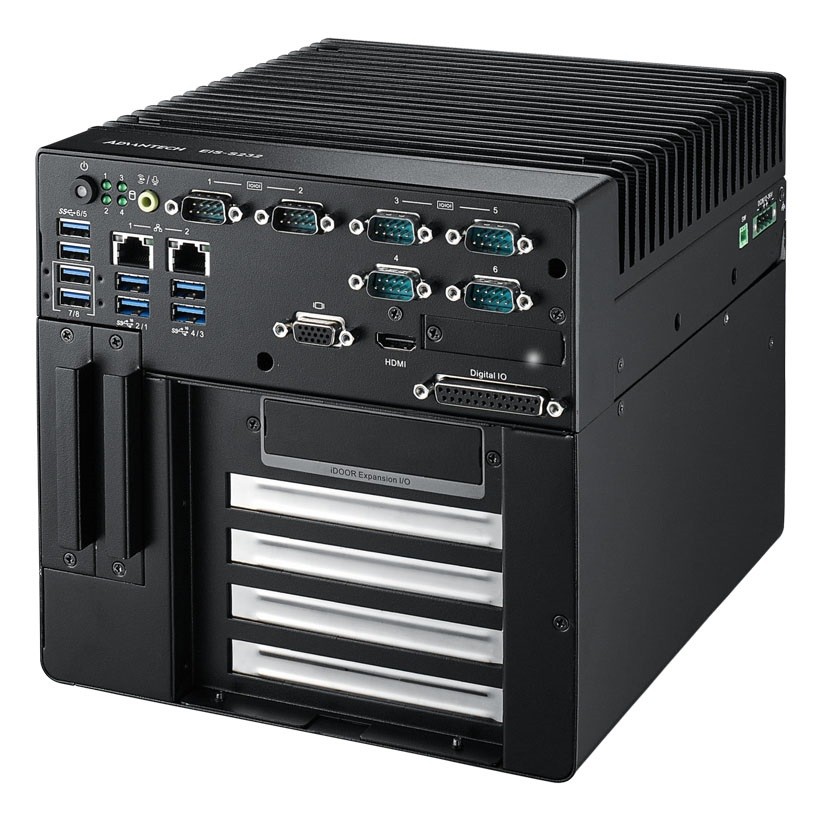

Basismodul: Advantech EIS-S232
Allgemein | ||||
SKU / Artikelnummer | EIS-S232 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Comet Lake | |||
Nummer | Intel Core i3-10100E, Intel Core i7-10700E, Intel Xeon W-1290TE | |||
CPU Kerne | 4 St, 8 St, 10 St | |||
Threads | 8 St, 16 St, 20 St | |||
Sockel | LGA 1200 (H5) | |||
Basis Frequenz | 1,8 GHz, 2,9 GHz, 3,2 GHz | |||
Max. Turbo-Taktfrequenz | 3,8 GHz, 4,5 GHz | |||
Cache | 6 MB, 16 MB, 20 MB | |||
Thermal Design Power (TDP) | 35 W, 65 W | |||
Chipsatz | Intel W480E | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 2933 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
ECC | wird nicht unterstützt, wird unterstützt | |||
Speicher onBoard | 32 GB, - | |||
Storage | Solid State Drive (SSD) | 1 TB, - | ||
Storage | Solid State Drive (SSD) 1 TB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics 630 | |||
Bildschirme (Multidisplay) | 3 Displays | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
HDMI | Maximale Auflösung | 4096 x 2160 bei 30 Hz | ||
Version | 1.4 | |||
Erweiterung | ||||
PCI | Anzahl | 2 St | ||
PCI Schnittstellen | 2x PCI | |||
PCIe x16 | x16 Signal | Anzahl | 1 St | |
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe, 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | E | |
Interface | WLAN | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E | |||
Storage | mSATA | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1 | |||
Externe I/O (Frontseite) | ||||
Anzeige | VGA | 1 St | ||
HDMI | 1 St | |||
Audio | Combo Jack | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 2 St | |
RS-232 / 422 / 485 | DB-9 | 4 St | ||
Digital I/O | Anzahl | 1 St | ||
Bits | 16-Bit | |||
Anschluss | DB-26 | |||
USB | USB v3.0 | 4 St | ||
USB v3.2 (Gen 2) | 4 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage, v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~36V | |||
Anschluss | 4 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 12~36V | |||
Stromaufnahme Typisch | 30 W | |||
Stromaufnahme Maximal | 64,8 W | |||
Einschübe | ||||
Extern | Einbauschacht 2.5" | 2 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Edge AI System | ||
Breite | 197,2 mm | |||
Tiefe | 204 mm | |||
Höhe | 230 mm | |||
Vibration | Vibration | 3G, 10~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 30G, 18 ms | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 6410 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Statusanzeigen | Storage | 4 St | ||
Power | 1 St | |||
Slot Brackets | Standard | 4 St | ||
Farbe | Schwarz | |||
Material | Aluminium | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Linux, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
CCC | Ja | |||
Weitere Zertifikate / Konformitäten | BSMI, CB | |||
RoHS konform | Ja |
