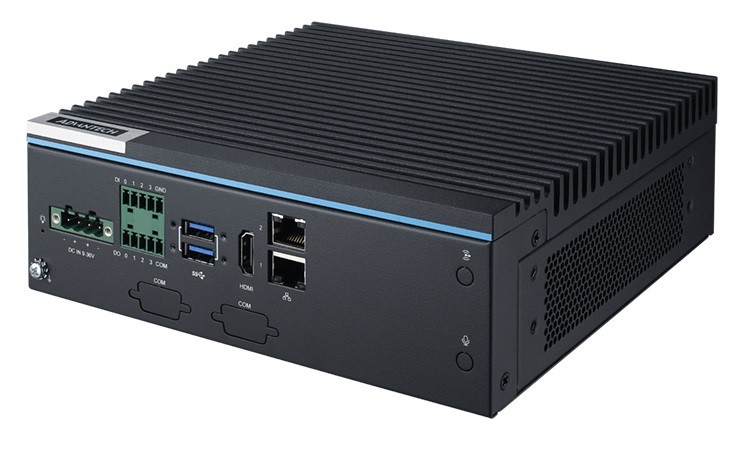

Edge AI System
// Edge AI System
// [Nvidia Jetson ORIN NX 8G | Nvidia Jetson ORIN NX 16G]
// Passiv cooled
// [8 GB | 16 GB] RAM
// 1 x Display
// 2 x USB (Front page)
// 4 x USB (Back side)
// 1 x USB (sideways)
// 2 x G-LAN (Front page)
// 1 x Mini-PCIe
// 2 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Advantech MIC-713-OX
Allgemein | ||||
SKU / Artikelnummer | MIC-713-OX | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Serie | ARM Cortex-A78AE | ||
Nummer | Nvidia Jetson ORIN NX 8G, Nvidia Jetson ORIN NX 16G | |||
CPU Kerne | 6 St, 8 St | |||
Speicher | Memory Type | DDR5 | ||
Speicher onBoard | 8 GB, 16 GB | |||
Storage | Solid State Drive (NVMe SSD) | 128 GB | ||
Grafik | ||||
Prozessor | Nvidia Ampere | |||
Cores | Cuda | 1024 St | ||
Tensor | 32 St | |||
Performance | TOPS (INT8) | 100 | ||
HDMI | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, USB 2.0 | |||
Unterstütze Abmaße | 3052 | |||
Slot 2 | Key ID | M | ||
Interface | PCIe ×1 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | B, M | |||
SIM | Anzahl | 2 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2, Micro-SD | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Realtek RTL8119I (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||
Interne I/O | ||||
Seriell | RS-232 / 422 / 485 | Ports (2.00 mm Pitch) | 2 St | |

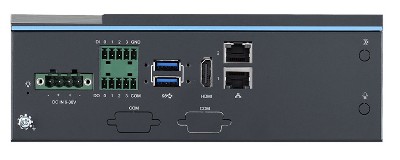

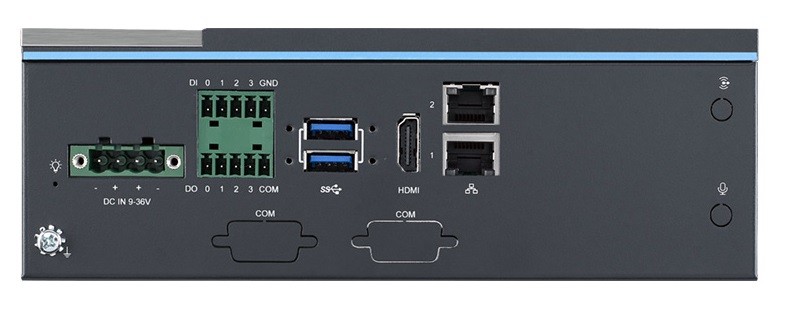

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | 10 Pin Terminal Stecker | |||
USB | USB v3.2 (Gen 2) | 2 St | ||

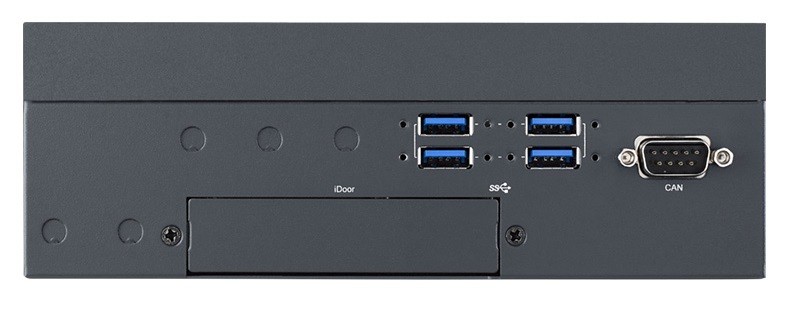

Externe I/O (Rückseite) | ||||
USB | USB v3.2 (Gen 2) | 4 St | ||
CAN Bus | Anschluss | DB-9 | ||
Stück | 1 St | |||

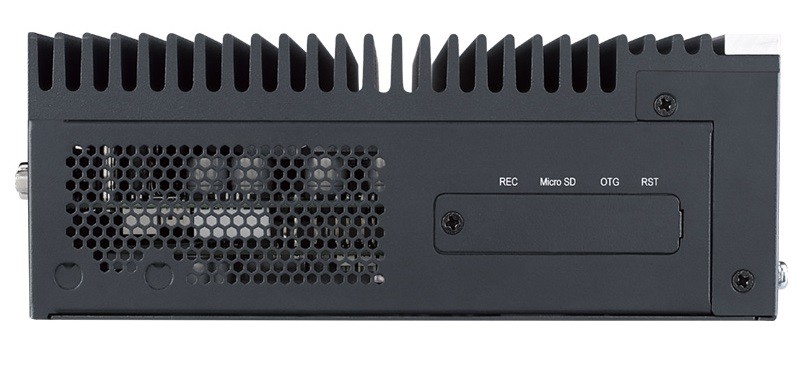

Externe I/O (seitlich) | ||||
USB | USBOTG (USB On-The-Go) | 1 St | ||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 4 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 60°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Edge AI System | ||
Breite | 194,8 mm | |||
Tiefe | 174,3 mm | |||
Höhe | 65,85 mm | |||
Gewicht | 2050 g | |||
Bedienelemente | Reset | 1 St | ||
Statusanzeigen | Power | 1 St | ||
Antennenlöcher | 7 St | |||
Farbe | Dunkel Grau | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class A | Ja | ||
CCC | Ja | |||
Weitere Zertifikate / Konformitäten | BSMI, CB, UKCA | |||
RoHS konform | Ja |
