Edge AI System
// Edge AI System
// [Nvidia Jetson AGX ORIN 32 GB | Nvidia Jetson AGX ORIN 64 GB]
// Passiv cooled
// [32 GB | 64 GB] RAM
// 1 x Display
// 6 x USB (Front page)
// 2 x USB (internal)
// 4 x G-LAN (Front page)
// 1 x PCIe x8
// 2 x Mini-PCIe
// 2 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

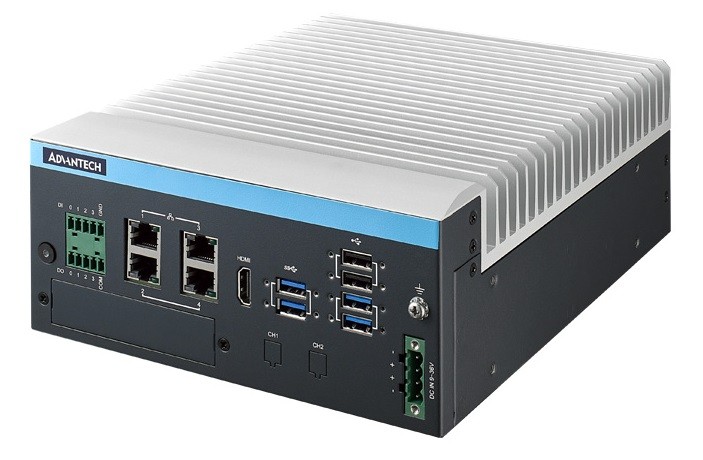

Basismodul: Advantech MIC-733-AO
Allgemein | ||||
SKU / Artikelnummer | MIC-733-AO | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Serie | ARM Cortex-A78AE | ||
Nummer | Nvidia Jetson AGX ORIN 32 GB, Nvidia Jetson AGX ORIN 64 GB | |||
CPU Kerne | 8 St, 12 St | |||
ARM Instruction set | ARMv8.2-A | |||
Max. Turbo-Taktfrequenz | 0,93 GHz, 1,3 GHz | |||
Speicher | Speicher onBoard | 32 GB, 64 GB | ||
Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
Storage | Embedded MultiMedia Card (eMMC) 64 GB | |||
Grafik | ||||
Prozessor | Nvidia Ampere | |||
Cores | Cuda | 1792 St, 22048 St | ||
Tensor | 56 St, 64 St | |||
Performance | TOPS (INT8) | 200, 275 | ||
HDMI | Maximale Auflösung | 3840 x 2160 bei 60 Hz | ||
Erweiterung | ||||
PCIe x8 | x8 Signal | 1 St | ||
Mini-PCIe | Volle Bautiefe | Anzahl | 2 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x PCIe x8, 2x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, USB 2.0 | |||
Unterstütze Abmaße | 3052 | |||
Slot 2 | Key ID | M | ||
Interface | NVMe, PCIe ×4 | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | B, M | |||
SIM | Anzahl | 2 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2, Micro-SD | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (Typ-A-Buchse) | 1 St | |
USBOTG (USB On-The-Go) | Micro USB | 1 St | ||
Seriell | RS-232 / 422 / 485 | Ports (2.54 mm Pitch) | 2 St | |

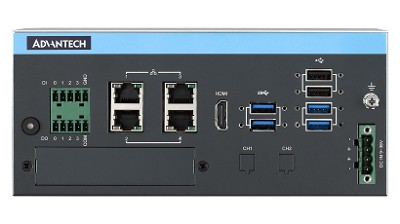

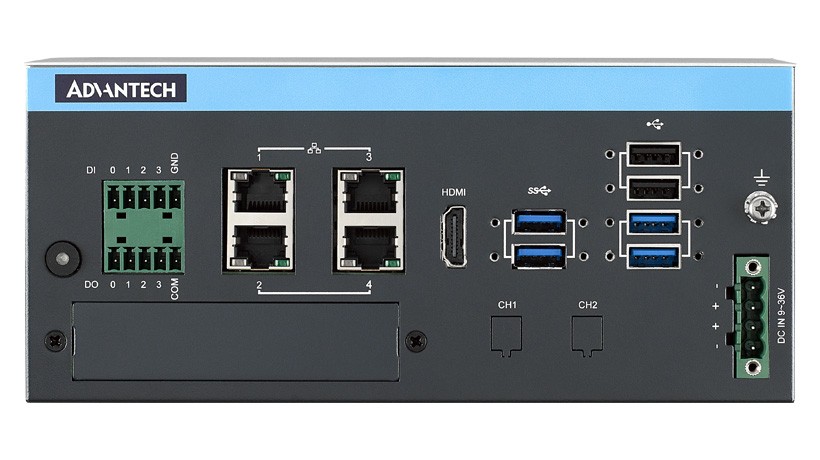

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 4 St | ||
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | 10 Pin Terminal Stecker | |||
USB | USB v2.0 | 2 St | ||
USB v3.2 (Gen 2) | 4 St | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 4 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 60°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Edge AI System | ||
Breite | 192 mm | |||
Tiefe | 230 mm | |||
Höhe | 87 mm | |||
Vibration | Vibration | 3G, 10~500 Hz | ||
Schock | Messdaten | 10G, halben Sinusschwingung, 11 ms Dauer | ||
Gewicht | 4500 g | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Power | 1 St | ||
Farbe | Schwarz / Silber | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
CCC | Ja | |||
Weitere Zertifikate / Konformitäten | BSMI, CB, Microsoft Azure Certified for IoT | |||
RoHS konform | Ja |
