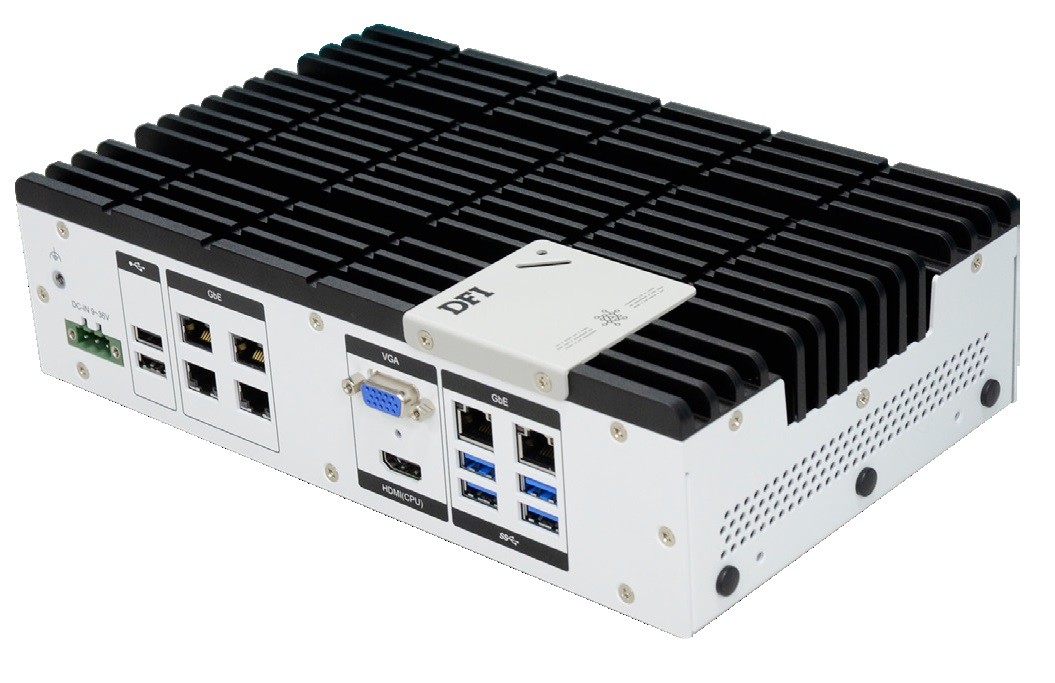

Edge AI System
// Edge AI System
// Intel Meteor Lake
// Passiv gekühlt
// 7 x Anzeige
// 2 x Seriell
// 6 x USB (Frontseite)
// 1 x USB (Rückseite)
// 6 x G-LAN (Frontseite)
// 3 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: DFI X6-MTH-ORN
Allgemein | ||||
SKU / Artikelnummer | X6-MTH-ORN | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
System | ||||
Prozessor | Serie | Intel Meteor Lake | ||
Sockel | BGA 2049 | |||
Thermal Design Power (TDP) | 15 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
Frequenz | 5600 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
BIOS | AMI BIOS | |||
AI/KI | ||||
KI Beschleuniger | Nvidia Orin NX | |||
Performance | TOPS (INT8) | 100 | ||
Grafik | ||||
Prozessor | Intel Iris Xe Graphics | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, 5G / Storage Module, PCIe ×2 | |||
Unterstütze Abmaße | 3042, 3052 | |||
Slot 2 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | M | ||
Interface | NVMe, SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 4 | Key ID | M | ||
Interface | NVMe, SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 5 | Key ID | A | ||
Interface | OOB | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, E, M | |||
Mobile PCI Express Module (MXM) | wird unterstützt | |||
Storage | M.2 | |||
Netzwerk | ||||
G-LAN | Controller | Anzahl | 1 St | |
Controller | Chipsatz | Intel I210 PCIe (10/100/1000 Mbps) | ||
Anzahl | 5 St | |||
Netzwerk | 6x G-LAN | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1 | |||

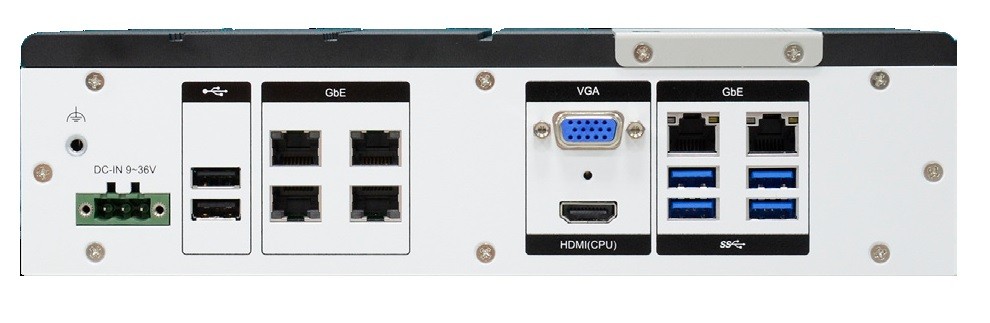

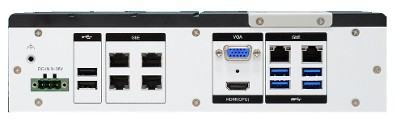

Externe I/O (Frontseite) | ||||
Anzeige | VGA | 1 St | ||
HDMI | 1 St | |||
Ethernet | RJ-45 | 6 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.2 (Gen 2) | 4 St | |||

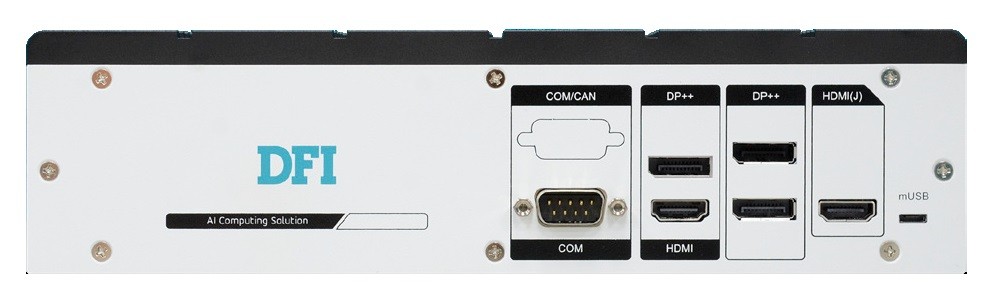

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 2 St | ||
DP++ | 3 St | |||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
USB | USBOTG (USB On-The-Go) | 1 St | ||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 2 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Edge AI System | ||
Breite | 250 mm | |||
Tiefe | 150 mm | |||
Höhe | 65 mm | |||
Schutzart (IP) | IP20 (komplett) | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 3G, halben Sinusschwingung, 11 ms Dauer | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 3500 g | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 6 St | |||
Farbe | Schwarz / Weiß | |||
Material | Aluminium, Stahl | |||
Montageoption | Hutschiene (DIN Rail), Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Windows, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
