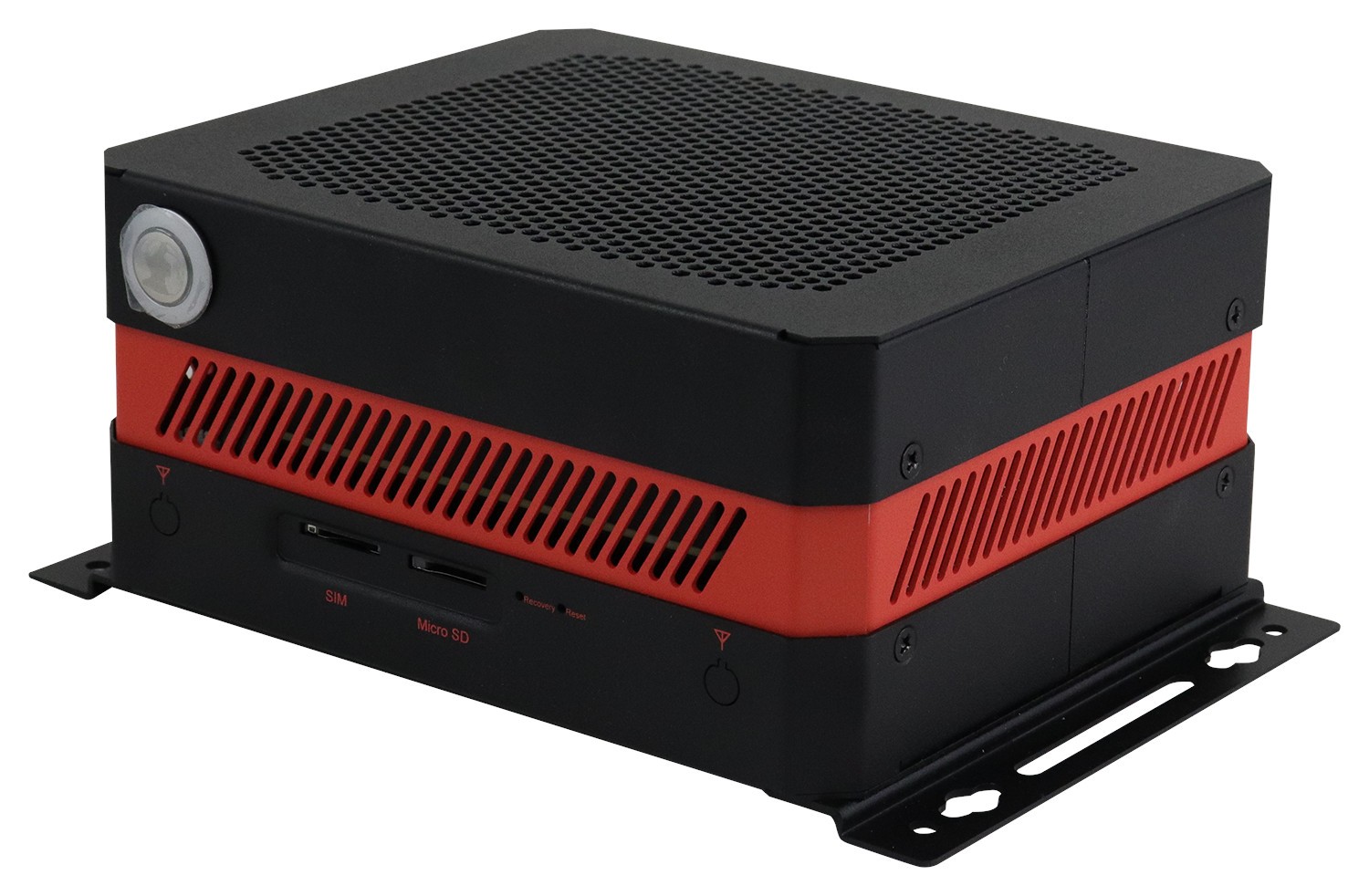

Edge AI System
// Edge AI System
// [Nvidia Jetson AGX ORIN 32 GB | Nvidia Jetson AGX ORIN 64 GB]
// [32 GB | 64 GB] RAM
// 1 x Display
// 4 x USB (Back side)
// 2 x G-LAN (Back side)
// 3 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IBASE EC3500
Allgemein | ||||
SKU / Artikelnummer | EC3500 | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Serie | ARM Cortex-A78AE | ||
Nummer | Nvidia Jetson AGX ORIN 32 GB, Nvidia Jetson AGX ORIN 64 GB | |||
CPU Kerne | 8 St, 12 St | |||
ARM Instruction set | ARMv8.2-A | |||
Cache | 2 MB, 3 MB | |||
Speicher | Speicher onBoard | 32 GB, 64 GB | ||
Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
eMMC Version | 5.1 | |||
Solid State Drive (SSD) | 256 GB | |||
Storage | Embedded MultiMedia Card (eMMC) 64 GB, Solid State Drive (SSD) 256 GB | |||
Grafik | ||||
Prozessor | Nvidia Ampere | |||
Cores | RT Cores | 1792 St, 2048 St | ||
Tensor | 56 St, 64 St | |||
HDMI | Version | 2.1 | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, 5G / Storage Module, USB 3.0 | |||
Unterstütze Abmaße | 3042, 3052 | |||
Slot 2 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | M | ||
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | B, E, M | |||
Storage | M.2, Micro-SD (extern) | |||
Interne I/O | ||||
Image Capture Interfaces | Kamera Eingang 1 | MIPI-CSI (Camera Serial Interface) | 1 St | |
Anzahl | 1 St | |||
Lanes | 16 St | |||
Externe I/O (Frontseite) | ||||
SIM Card Slot | 1 St | |||

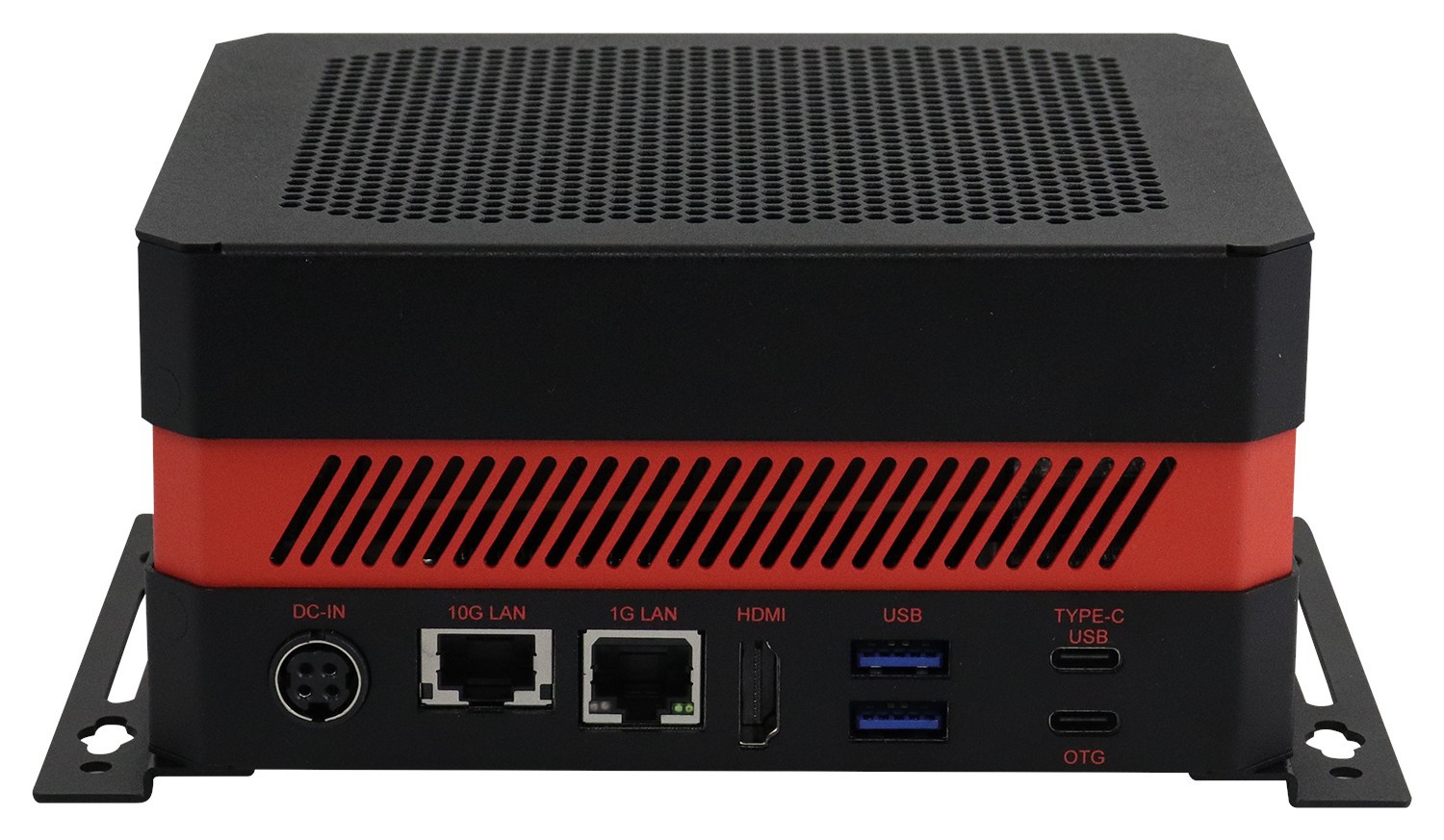

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 1) | 2 St | ||
USB v3.2 (Gen 2, Type C) | 1 St | |||
USBOTG (USB On-The-Go) | 1 St | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 4 Pin Anschluss (Kycon, Singatron or similar) | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Stromaufnahme Maximal | 150 W | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 50°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Edge AI System | ||
Breite | 150 mm | |||
Tiefe | 120 mm | |||
Höhe | 70 mm | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 30G, 18 ms | ||
Gewicht | 1350 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Power | 1 St | ||
Antennenlöcher | 2 St | |||
Material | Aluminium, Stahl | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
