Embedded System
// Embedded System
// Intel Atom x7211E
// 1 GHz
// Passiv cooled
// 1 x Display
// 4 x Serial
// 4 x USB (Back side)
// 1 x G-LAN (Back side)
// 3 x M.2 Slot
// 12V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

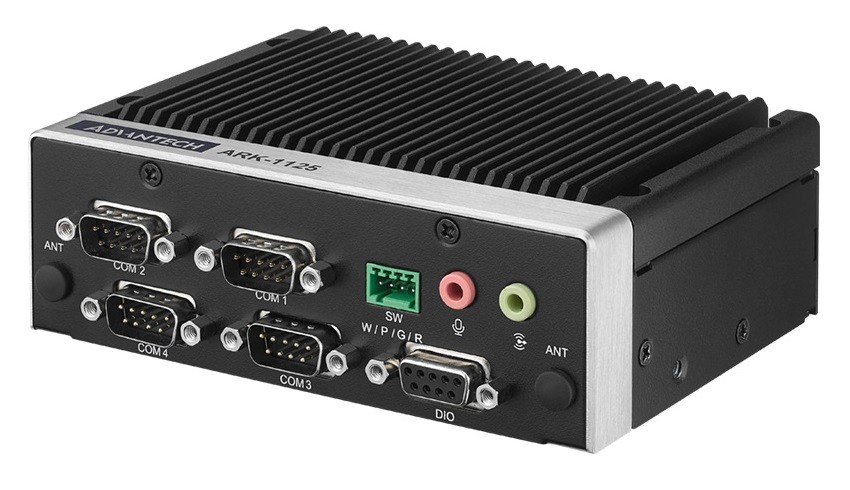

Basismodul: Advantech ARK-1125C
Allgemein | ||||
SKU / Artikelnummer | ARK-1125C | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
Produkt-ID | ARK-1125C-S0A1 | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Alder Lake | |||
Nummer | Intel Atom x7211E | |||
CPU Kerne | 2 St | |||
Sockel | BGA 1264 | |||
Basis Frequenz | 1 GHz | |||
Max. Turbo-Taktfrequenz | 3,2 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 6 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 4800 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
ECC | wird nicht unterstützt | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×1 (Gen. 3), WLAN | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | 5G / Storage Module | |||
Unterstütze Abmaße | 2280 | |||
Slot 3 | Key ID | M | ||
Interface | PCIe ×1 (Gen. 3), SATA III | |||
Unterstütze Abmaße | 2242 | |||
M.2 Key IDs | B, E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||

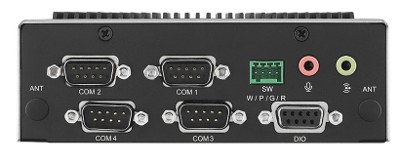

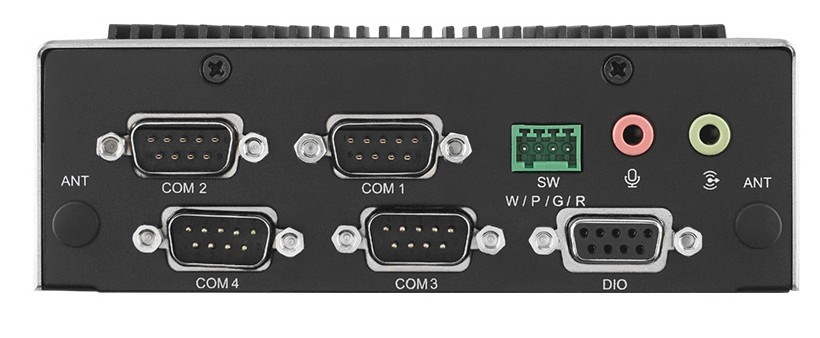

Externe I/O (Frontseite) | ||||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Seriell | RS-232 / 422 / 485 | DB-9 | 4 St | |
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | DB-9 | |||

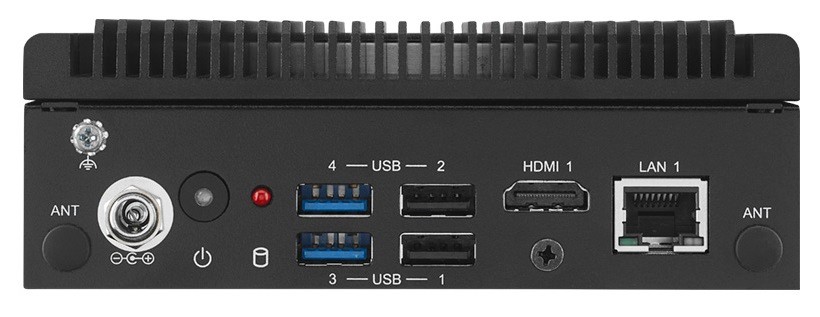

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 1 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.2 (Gen 1) | 2 St | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Infineon SLB 9672 XU 2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | Hohlstecker (verschraubt) | |||
Stromstärke | 5 A | |||
Stromversorgung - Eingang | DC: 12V | |||
Stromaufnahme Typisch | 10,05 W | |||
Stromaufnahme Maximal | 19,72 W | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -30° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 133 mm | |||
Tiefe | 94,2 mm | |||
Höhe | 46,4 mm | |||
Vibration | Vibration | 3G, 10~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 30G, 18 ms | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 700 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 4 St | |||
Farbe | Schwarz | |||
Material | Aluminium | |||
Montageoption | Hutschiene (DIN Rail), VESA, Wandmontage | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Windows Embedded, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
CCC | Ja | |||
Weitere Zertifikate / Konformitäten | BSMI, CB, UKCA | |||
RoHS konform | Ja |
