                            Embedded System
// Embedded System
// [Intel Atom X7433RE | Intel N97]
// Passiv  cooled
// 16 GB  RAM
// 2 x Display
// 4 x Serial
// 4 x USB (Front page)
// 2 x G-LAN (Front page)
// 1 x Mini-PCIe
// 2 x M.2 Slot
// 12~28V
Bitte konfigurieren Sie Ihr Wunschprodukt.
                                                        Standardkonfiguration
                                                        Individualkonfiguration

                                    Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

Basismodul: Advantech ARK-1222
| Allgemein | ||||
| SKU / Artikelnummer | ARK-1222 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Serie | Intel Alder Lake, Intel Amston Lake | ||
| Nummer | Intel Atom X7433RE, Intel N97 | |||
| CPU Kerne | 4 St | |||
| Sockel | BGA 1264 | |||
| Max. Turbo-Taktfrequenz | 3,4 GHz, 3,6 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 9 W, 12 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 4800 MHz | |||
| Steckplätze | 1 St | |||
| Maximaler Ausbau | 16 GB | |||
| Speicher onBoard | 16 GB | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Grafik | ||||
| Prozessor | Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 2 Displays | |||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Version | 2.0 | |||
| Erweiterung | ||||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| mSATA Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, NVMe, PCIe ×2, USB 3.0 | |||
| Unterstütze Abmaße | 2280 | |||
| M.2 Key IDs | B, E | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | M.2, mSATA | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 2 St | |||
| Netzwerk | 2x G-LAN | |||

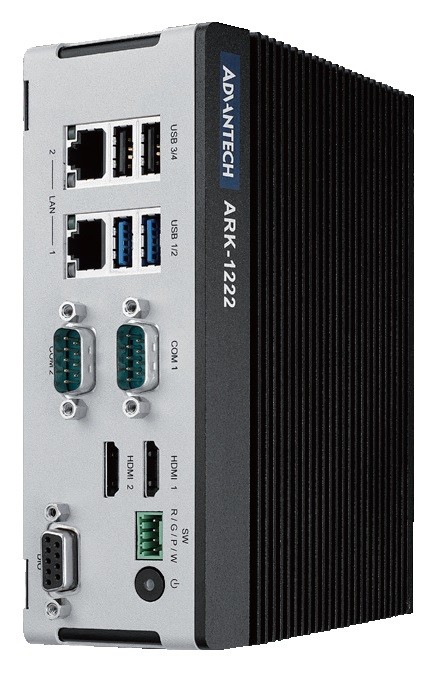

| Externe I/O (Frontseite) | ||||
| Anzeige | HDMI | 2 St | ||
| Ethernet | RJ-45 | 2 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
| Digital I/O | Anzahl | 1 St | ||
| Bits | 8-Bit | |||
| Anschluss | DB-9 | |||
| USB | USB v2.0 | 2 St | ||
| USB v3.2 (Gen 2) | 2 St | |||

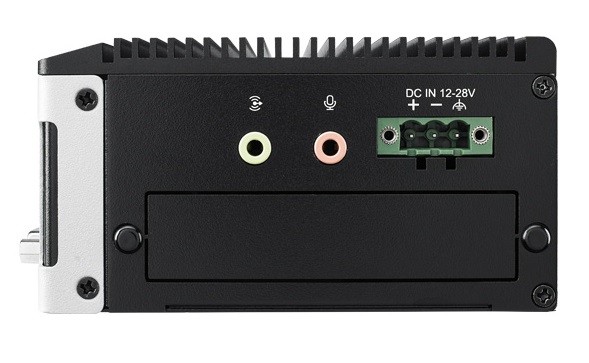

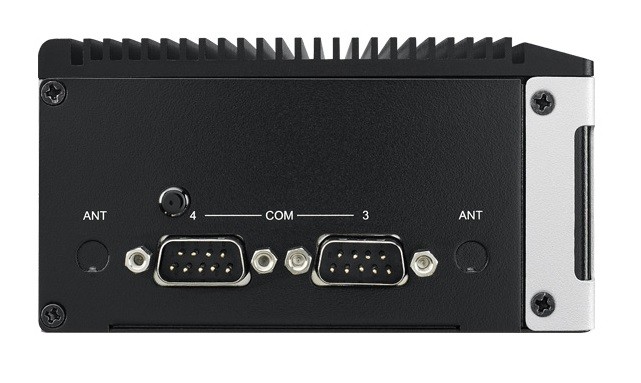

| Externe I/O (seitlich) | ||||
| Audio | Line-Out | 1 St | ||
| Mic-In | 1 St | |||
| Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~28V | |||
| Anschluss | 3 Pin Terminal Stecker | |||
| Stromversorgung - Eingang | DC: 12~28V | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -20° bis 60°C, -40° bis 70°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | Embedded System | ||
| Breite | 60 mm | |||
| Tiefe | 158 mm | |||
| Höhe | 114 mm | |||
| Vibration | Vibration | 3G, 10~500 Hz | ||
| Referenz Standard | IEC 68-2-64 | |||
| Schock | Messdaten | 30G, 18 ms | ||
| Referenz Standard | IEC 68-2-27 | |||
| Gewicht | 940 g | |||
| Bedienelemente | Power | 1 St | ||
| Statusanzeigen | Power | 1 St | ||
| Antennenlöcher | 4 St | |||
| Farbe | Schwarz / Silber | |||
| Material | Aluminium | |||
| Montageoption | Hutschiene (DIN Rail), VESA, Wandmontage | |||
| Betriebssysteme / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
| Windows 11 IoT | wird unterstützt | |||
| Linux | Distribution | Ubuntu 24.04 | ||
| Unterstützte BS | Linux, Windows Embedded | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| UL | Ja | |||
| FCC | Class B | Ja | ||
| CCC | Ja | |||
| Weitere Zertifikate / Konformitäten | BSMI, CB, UKCA | |||
| RoHS konform | Ja | |||
