Embedded System
// Embedded System
// [Intel Core i3-1115G4E | Intel Core i5-1145G7E]
// [1,5 | 2,2] GHz
// 2 x Display
// 4 x Serial
// 6 x USB (Front page)
// 1 x USB (internal)
// [3 | 4] x G-LAN (Front page)
// 1 x Mini-PCIe
// 2 x M.2 Slot
// 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Advantech ARK-1250L
| Allgemein | ||||
| SKU / Artikelnummer | ARK-1250L | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Tiger Lake | |||
| Nummer | Intel Core i3-1115G4E, Intel Core i5-1145G7E | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 4 St, 8 St | |||
| Sockel | BGA 1449 | |||
| Basis Frequenz | 1,5 GHz, 2,2 GHz | |||
| Max. Turbo-Taktfrequenz | 3,9 GHz, 4,1 GHz | |||
| Cache | 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Maximale Turbo-Leistungsaufnahme | 28 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 3200 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 64 GB | |||
| ECC | wird nicht unterstützt | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Grafik | ||||
| Prozessor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 2 Displays | |||
| VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz, - | ||
| HDMI | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
| Erweiterung | ||||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| mSATA Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 5G / Storage Module | |||
| Unterstütze Abmaße | 2280 | |||
| M.2 Key IDs | B, E | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | mSATA | |||
| Audio | ||||
| Chipsatz | Realtek ALC888S-VD2-GR | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I225LM PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I225LM PCIe (10/100/1000/2500 Mbps) | ||
| Anzahl | 1 St, 2 St | |||
| Netzwerk | 2x G-LAN | |||
| Interne I/O | ||||
| USB | USB v2.0 | Ports (Typ-A-Buchse) | 1 St | |
| Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||

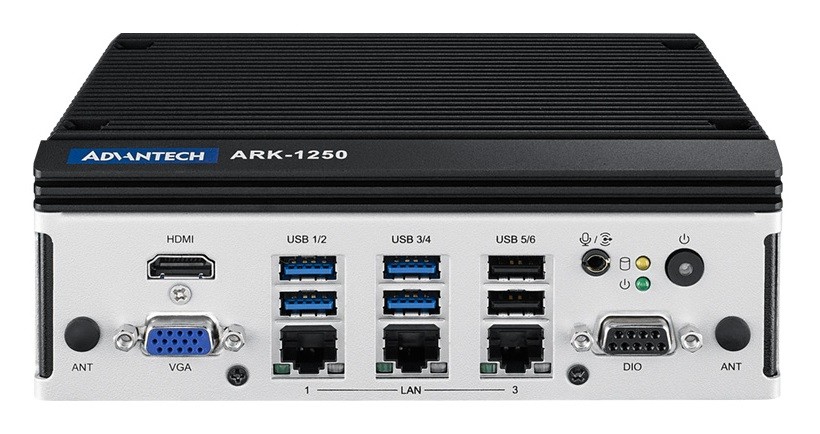

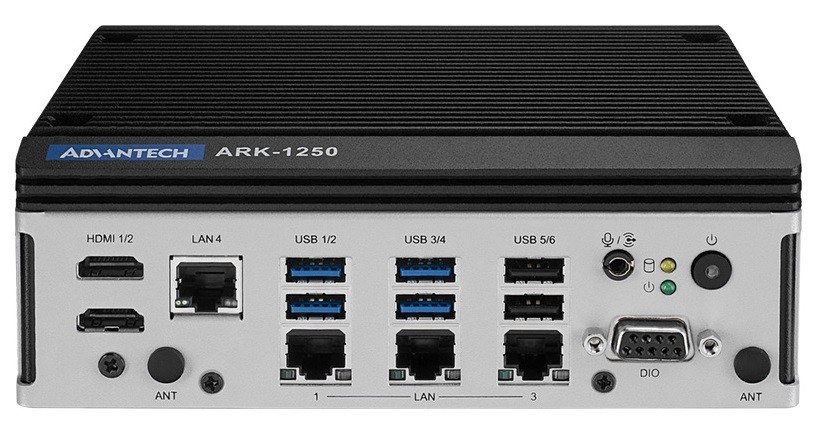

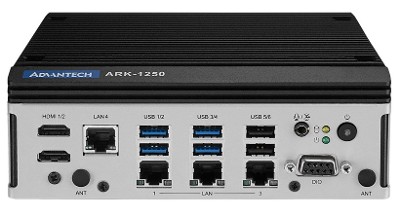

| Externe I/O (Frontseite) | ||||
| Anzeige | VGA | 1 St, - | ||
| HDMI | 1 St, 2 St | |||
| Ethernet | RJ-45 | 3 St, 4 St | ||
| Digital I/O | Anzahl | 1 St | ||
| Bits | 8-Bit | |||
| Anschluss | DB-9 | |||
| USB | USB v2.0 | 3 St | ||
| USB v3.2 (Gen 1) | 3 St | |||
| Externe I/O (seitlich) | ||||

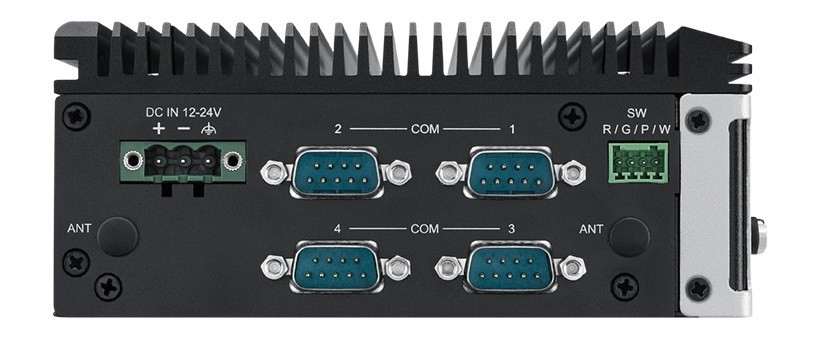

| Seriell | RS-232 / 422 / 485 | DB-9 | 4 St | |
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | Auf Anfrage | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~24V | |||
| Anschluss | 3 Pin Terminal Stecker | |||
| Stromversorgung - Eingang | DC: 12~24V | |||
| Einschübe | ||||
| Intern | Einbauschacht 2.5" | 1 St | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -40° bis 60°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | Embedded System | ||
| Breite | 60 mm | |||
| Tiefe | 141 mm | |||
| Höhe | 173 mm | |||
| Vibration | Vibration | 3G, 10~500 Hz | ||
| Referenz Standard | IEC 68-2-64 | |||
| Schock | Messdaten | 30G, 18 ms | ||
| Referenz Standard | IEC 68-2-27 | |||
| Gewicht | 1500 g | |||
| Bedienelemente | Power | 1 St | ||
| Power (Terminal Anschluss) | 1 St | |||
| Statusanzeigen | Storage | 1 St | ||
| Power | 2 St | |||
| Antennenlöcher | 6 St | |||
| Farbe | Schwarz / Silber | |||
| Material | Aluminium | |||
| Montageoption | Hutschiene (DIN Rail), Wandmontage | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 10 (64-bit) | wird unterstützt | ||
| Windows 11 | Wird unterstützt | |||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
| Windows 11 IoT | wird unterstützt | |||
| Linux | Distribution | Ubuntu 20.04, Ubuntu 22.04 | ||
| Unterstützte BS | Linux, Windows, Windows Embedded | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| UL | Ja | |||
| FCC | Class B | Ja | ||
| CCC | Ja | |||
| Weitere Zertifikate / Konformitäten | CB, UKCA | |||
| RoHS konform | Ja | |||
