Embedded System
// Embedded System
// Qualcomm APQ8016
// Passiv cooled
// [1 GB | 2 GB] RAM
// 1 x Display
// 1 x Serial
// 3 x USB (Front page)
// 2 x USB (Back side)
// 1 x G-LAN (Front page)
// 1 x Mini-PCIe
// 1 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

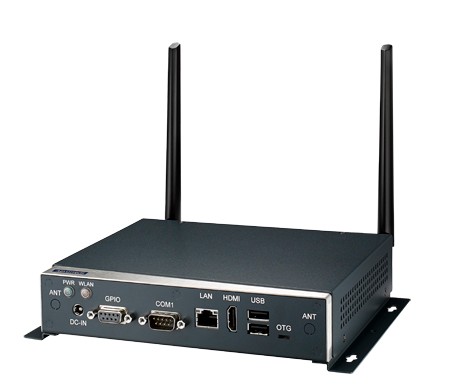

Basismodul: Advantech EPC-R4760
| Allgemein | ||||
| SKU / Artikelnummer | EPC-R4760 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Serie | ARM Cortex-A53 | ||
| Nummer | Qualcomm APQ8016 | |||
| CPU Kerne | 4 St | |||
| Max. Turbo-Taktfrequenz | 1,2 GHz | |||
| Speicher | Memory Type | DDR3 | ||
| DIMM Datarate | 1066 (DDR3) MT/s | |||
| Speicher onBoard | 1 GB, 2 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 8 GB | ||
| Storage | Embedded MultiMedia Card (eMMC) 8 GB | |||
| Grafik | ||||
| VGA | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
| Erweiterung | ||||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| USB Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| M.2 Key IDs | E | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Micro SIM | |||
| Storage | Micro-SD | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Microchip LAN7500-ABZJ (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Wireless | Wi-Fi | Wi-Fi Standards (IEEE 802.11) | 802.11a/b/g/n | |
| Bluetooth | Versions / Features | v4.1 | ||
| Netzwerk | 1x G-LAN, Bluetooth, Wi-Fi | |||
| Externe I/O (Frontseite) | ||||
| Anzeige | HDMI | 1 St | ||
| Ethernet | RJ-45 | 1 St | ||
| Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
| Digital I/O | Anzahl | 1 St | ||
| Bits | 8-Bit | |||
| Anschluss | DB-9 | |||
| USB | USB v2.0 | 2 St | ||
| USBOTG (USB On-The-Go) | 1 St | |||
| Externe I/O (Rückseite) | ||||
| USB | USB v2.0 | 2 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 9~36V | |||
| Anschluss | DC Jack | |||
| Stromversorgung - Eingang | DC: 9~36V | |||
| Stromaufnahme Typisch | 6,2 W | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | 0° bis 40°C | ||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | Embedded System | ||
| Breite | 188 mm | |||
| Tiefe | 150 mm | |||
| Höhe | 39 mm | |||
| Bedienelemente | Power | 1 St | ||
| Statusanzeigen | Power | 1 St | ||
| Wi-Fi | 1 St | |||
| Antennenlöcher | 5 St | |||
| Betriebssysteme / Software | ||||
| Linux | Distribution | Debian 10, Yocto 3.0 | ||
| Android | Release | 12 | ||
| Unterstützte BS | Android, Linux | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class B | Ja | ||
| Weitere Zertifikate / Konformitäten | International Certificate (IC), Radio Equipment Directive (RED), SRRC, TELEC | |||
| RoHS konform | Ja | |||
