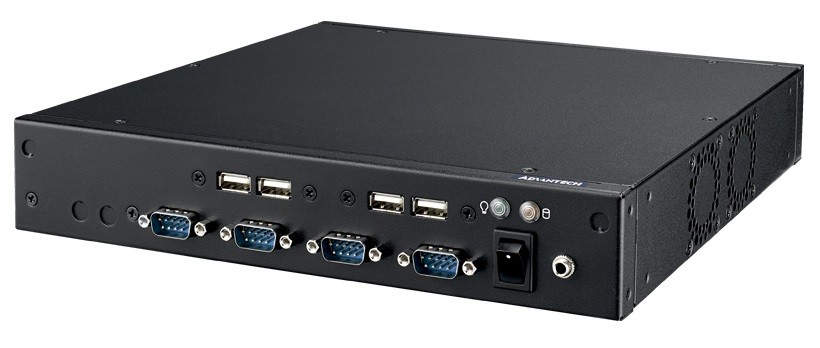

Embedded System
// Embedded System
// [Intel Core i3-8100T | Intel Core i5-8500T | Intel Core i7-8700]
// [2,1 | 3,1 | 3,2] GHz
// Aktiv (Lüfterkühlung) gekühlt
// 2 x Anzeige
// 6 x Seriell
// 4 x USB (Frontseite)
// 4 x USB (Rückseite)
// 3 x G-LAN (Rückseite)
// 2 x M.2 Slot
// 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Advantech EPC-T2286
Allgemein | ||||
SKU / Artikelnummer | EPC-T2286 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Serie | Intel Coffee Lake | ||
Nummer | Intel Core i3-8100T, Intel Core i5-8500T, Intel Core i7-8700 | |||
CPU Kerne | 4 St, 6 St | |||
Threads | 4 St, 6 St, 12 St | |||
Sockel | LGA 1151 (H4) | |||
Basis Frequenz | 2,1 GHz, 3,1 GHz, 3,2 GHz | |||
Max. Turbo-Taktfrequenz | 3,5 GHz, 4,6 GHz, - | |||
Cache | 6 MB, 9 MB, 12 MB | |||
Thermal Design Power (TDP) | 35 W, 65 W | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
DIMM Type | Unbuffered SO-DIMM | |||
DIMM Datarate | 2133 MT/s | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 32 GB | |||
BIOS | AMI UEFI 128 Mbit SPI | |||
Grafik | ||||
Prozessor | Intel UHD Graphics 630 | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, SATA III, USB 3.0 | |||
Unterstütze Abmaße | 2242, 3042 | |||
Slot 2 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | B, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Realtek RTL8111H (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 3x G-LAN | |||
Interne I/O | ||||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||

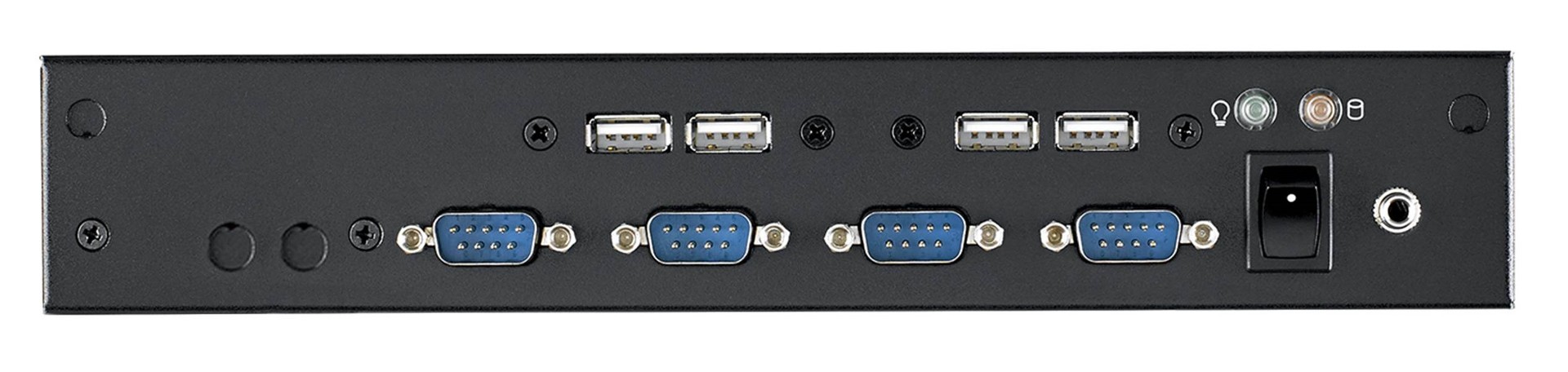

Externe I/O (Frontseite) | ||||
Seriell | RS-232 | DB-9 | 3 St | |
RS-232 / 422 / 485 | DB-9 | 1 St | ||
USB | USB v2.0 | 4 St | ||

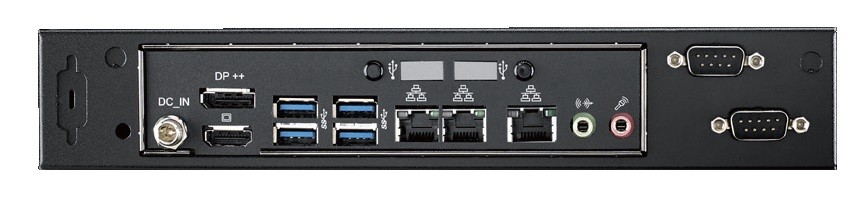

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Displayport | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 3 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
RS-232 / 422 / 485 | DB-9 | 1 St | ||
USB | USB v3.0 | 4 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | DC Jack | |||
Stromversorgung - Eingang | DC: 12V | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Aktiv | Lüfter | Anzahl | 2 St | |
Durchmesser | 40 mm | |||
Luftstrom (bei 100%) | 24 cfm | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb (SSD) | 0° bis 50°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 85%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 250 mm | |||
Tiefe | 225 mm | |||
Höhe | 44,2 mm | |||
Vibration | Vibration | 1G, 5~500 Hz | ||
Gewicht | 4000 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 4 St | |||
Farbe | Schwarz | |||
Montageoption | Rackmontage, VESA, Wandmontage | |||
Zubehör | -, mit 120W Power Adapter | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
CCC | Ja | |||
RoHS konform | Ja |
