Embedded System
// Embedded System
// [Intel Atom x6413E | Intel Atom x6425RE]
// [1,5 | 1,9] GHz
// Passiv gekühlt
// 8 GB RAM
// 2 x Anzeige
// 2 x Seriell
// 4 x USB (Frontseite)
// 2 x G-LAN (Frontseite)
// 1 x Mini-PCIe
// 2 x M.2 Slot
// 10~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

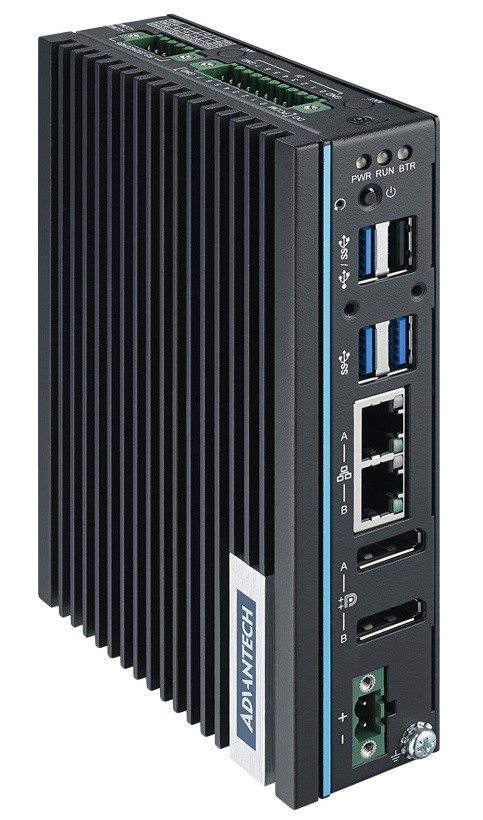

Basismodul: Advantech UNO-137 V2
Allgemein | ||||
SKU / Artikelnummer | UNO-137 V2 | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Elkhart Lake | |||
Nummer | Intel Atom x6413E, Intel Atom x6425RE | |||
CPU Kerne | 4 St | |||
Threads | 4 St | |||
Sockel | BGA 1493 | |||
Basis Frequenz | 1,5 GHz, 1,9 GHz | |||
Max. Turbo-Taktfrequenz | 3 GHz, - | |||
Cache | 1,5 MB | |||
Thermal Design Power (TDP) | 9 W, 12 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 3200 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 32 GB | |||
Speicher onBoard | 8 GB | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
Displayport | Maximale Auflösung | 4096 x 2160 bei 60 Hz | ||
Version | 1.2 | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | M | |
Interface | PCIe ×2, SATA III | |||
Unterstütze Abmaße | 2242 | |||
Slot 2 | Key ID | E | ||
Interface | PCIe ×2, USB 2.0, WLAN | |||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2, mSATA | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O (Frontseite) | ||||
Anzeige | DP++ | 2 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v2.0 | 1 St | ||
USB v3.2 (Gen 1) | 1 St | |||
USB v3.2 (Gen 2) | 2 St | |||
Externe I/O (seitlich) | ||||
Seriell | RS-232 / 422 / 485 | 5 Pin Terminal Stecker | 2 St | |
Digital I/O | Anzahl | 1 St | ||
Bits | 16-Bit | |||
Anschluss | 20 Pin Terminal Stecker | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 10~36V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 10~36V | |||
Stromaufnahme Typisch | 21 W | |||
Stromaufnahme Maximal | 47 W | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 60°C, -40° bis 70°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 35 mm | |||
Tiefe | 105 mm | |||
Höhe | 150 mm | |||
Schutzart (IP) | IP20 (komplett) | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 50G, 0.5ms | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 800 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Power | 1 St | ||
GbE | 1 St | |||
System Status | 1 St | |||
Batterie | 1 St | |||
Antennenlöcher | 2 St | |||
Farbe | Schwarz | |||
Material | Aluminium | |||
Montageoption | Hutschiene (DIN Rail) | |||
Betriebssysteme / Software | ||||
Windows | Windows 11 | Wird unterstützt | ||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind unterstützt | ||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
UL | Ja | |||
FCC | Class B | Ja | ||
CCC | Ja | |||
RoHS konform | Ja |
