Embedded System
// Embedded System
// [Intel Core i3-1115G4E | Intel Core i5-1145G7E | Intel Core i7-1185G7E]
// [1,5 | 1,8 | 2,2] GHz
// Passiv cooled
// 8 GB RAM
// 2 x Display
// 4 x Serial
// 4 x USB (Front page)
// 3 x G-LAN (Front page)
// 1 x Mini-PCIe
// 3 x M.2 Slot
// 10~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

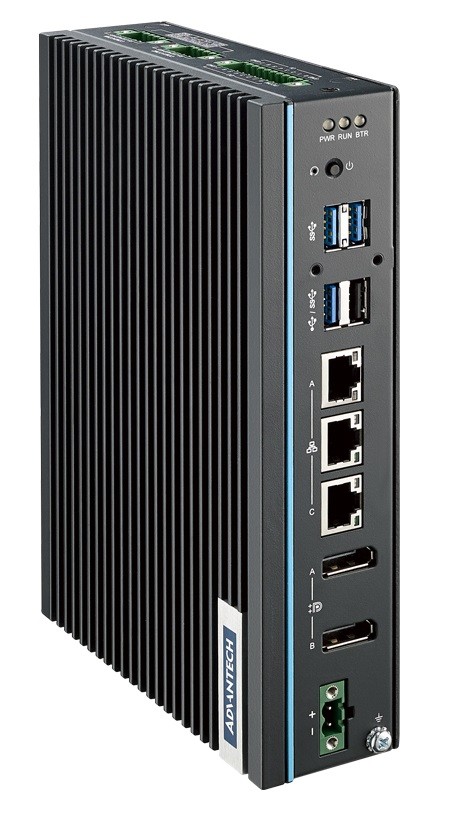

Basismodul: Advantech UNO-148
| Allgemein | ||||
| SKU / Artikelnummer | UNO-148 | |||
| Produktgrunddaten | ||||
| Hersteller | Advantech | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Tiger Lake | |||
| Nummer | Intel Core i3-1115G4E, Intel Core i5-1145G7E, Intel Core i7-1185G7E | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 4 St, 8 St | |||
| Sockel | BGA 1449 | |||
| Basis Frequenz | 1,5 GHz, 1,8 GHz, 2,2 GHz | |||
| Max. Turbo-Taktfrequenz | 3,9 GHz, 4,1 GHz, 4,4 GHz | |||
| Cache | 6 MB, 8 MB, 12 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Maximale Turbo-Leistungsaufnahme | 28 W | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequenz | 3200 MHz | |||
| Steckplätze | 2 St | |||
| Maximaler Ausbau | 64 GB | |||
| Speicher onBoard | 8 GB | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Grafik | ||||
| Prozessor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
| Bildschirme (Multidisplay) | 2 Displays | |||
| Displayport | Maximale Auflösung | 7680 x 4320 bei 60 Hz | ||
| Version | 1.4 | |||
| Erweiterung | ||||
| Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
| USB Unterstützung | Ja | |||
| PCIe Schnittstellen | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | USB 2.0, WLAN | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | M | ||
| Interface | NVMe, PCIe ×4 | |||
| Unterstütze Abmaße | 2280 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE, SATA III | |||
| Unterstütze Abmaße | 2242, 3042, 3052 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I225LM PCIe (10/100/1000/2500 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
| Anzahl | 1 St | |||
| Netzwerk | 3x G-LAN | |||
| Externe I/O (Frontseite) | ||||
| Anzeige | Displayport | 2 St | ||
| Ethernet | RJ-45 | 3 St | ||
| USB | USB v2.0 | 1 St | ||
| USB v3.2 (Gen 2) | 3 St | |||
| Externe I/O (seitlich) | ||||
| Seriell | RS-232 / 422 / 485 | 5 Pin Terminal Stecker | 4 St | |
| Digital I/O | Anzahl | 1 St | ||
| Bits | 16-Bit | |||
| Anschluss | 20 Pin Terminal Stecker | |||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 10~36V | |||
| Anschluss | 2 Pin Terminal Stecker | |||
| Stromversorgung - Eingang | DC: 10~36V | |||
| Stromaufnahme Typisch | 31 W | |||
| Stromaufnahme Maximal | 55 W | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb | -20° bis 60°C | ||
| Lagerung | -40° bis 85°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
| Abmaße | Formfaktor | Embedded System | ||
| Breite | 45 mm | |||
| Tiefe | 140 mm | |||
| Höhe | 200 mm | |||
| Schutzart (IP) | IP20 (komplett) | |||
| Vibration | Vibration | 2G, 5~500 Hz | ||
| Referenz Standard | IEC 68-2-64 | |||
| Schock | Messdaten | 50G, 0.5ms | ||
| Referenz Standard | IEC 68-2-27 | |||
| Gewicht | 1300 g | |||
| Bedienelemente | Power | 1 St | ||
| Reset | 1 St | |||
| Statusanzeigen | Power | 1 St | ||
| GbE | 1 St | |||
| System Status | 1 St | |||
| Batterie | 1 St | |||
| Antennenlöcher | 2 St | |||
| Farbe | Schwarz | |||
| Material | Aluminium | |||
| Montageoption | Hutschiene (DIN Rail) | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 11 | Wird unterstützt | ||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
| Linux | Distribution | Ubuntu 20.04 | ||
| Unterstützte BS | Linux, Windows, Windows Embedded | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| UL | Ja | |||
| FCC | Class B | Ja | ||
| CCC | Ja | |||
| Weitere Zertifikate / Konformitäten | AWS loT Greengrass Certified, BSMI, Microsoft Azure Certified for IoT | |||
| RoHS konform | Ja | |||
