Embedded System
// Embedded System
// Intel Atom x7-E3950
// 1,6 GHz
// Passiv gekühlt
// 8 GB RAM
// 2 x USB (intern)
// 2 x G-LAN (Frontseite)
// 3 x M.2 Slot
// 10~36V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

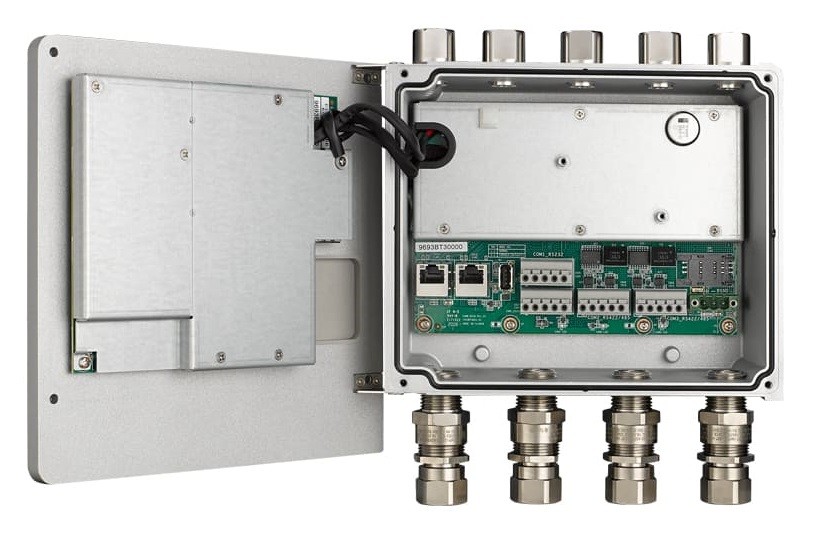

Basismodul: Advantech UNO-430 EXP
Allgemein | ||||
SKU / Artikelnummer | UNO-430 EXP | |||
Produktgrunddaten | ||||
Hersteller | Advantech | |||
Produkt-ID | UNO-430-E1H | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Apollo Lake | |||
Nummer | Intel Atom x7-E3950 | |||
CPU Kerne | 4 St | |||
Threads | 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,6 GHz | |||
Max. Turbo-Taktfrequenz | 2 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 12 W | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
DIMM Type | Unbuffered SO-DIMM | |||
DIMM Datarate | 1600 MT/s | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
Speicher onBoard | 8 GB | |||
BIOS | AMI UEFI 64 Mbit SPI | |||
Grafik | ||||
Prozessor | Intel HD Graphics 505 | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | SATA III | |||
Unterstütze Abmaße | 2242 | |||
Slot 2 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | B | ||
Interface | 4G/LTE, 5G / Storage Module, USB 2.0, USB 3.0 | |||
Unterstütze Abmaße | 3042, 3052 | |||
M.2 Key IDs | B, E | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (Typ-A-Buchse) | 1 St | |
USB v3.0 | Ports (Typ-A-Buchse) | 1 St | ||
Seriell | RS-232 | Ports (Sonderanschluss) | 1 St | |
RS-422 / 485 | Ports (Sonderanschluss) | 2 St | ||
Anzeige | Display Port (Golden Finger) | 1 St | ||
Externe I/O (Frontseite) | ||||
Ethernet | RJ-45 | 2 St | ||
Console | DB-9 Anschluss | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 10~36V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 10~36V | |||
Stromaufnahme Typisch | 21 W | |||
Stromaufnahme Maximal | 27 W | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 70°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 200 mm | |||
Tiefe | 68 mm | |||
Höhe | 200 mm | |||
Schutzart (IP) | IP65 (komplett) | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 50G, 0.5ms | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 3700 g | |||

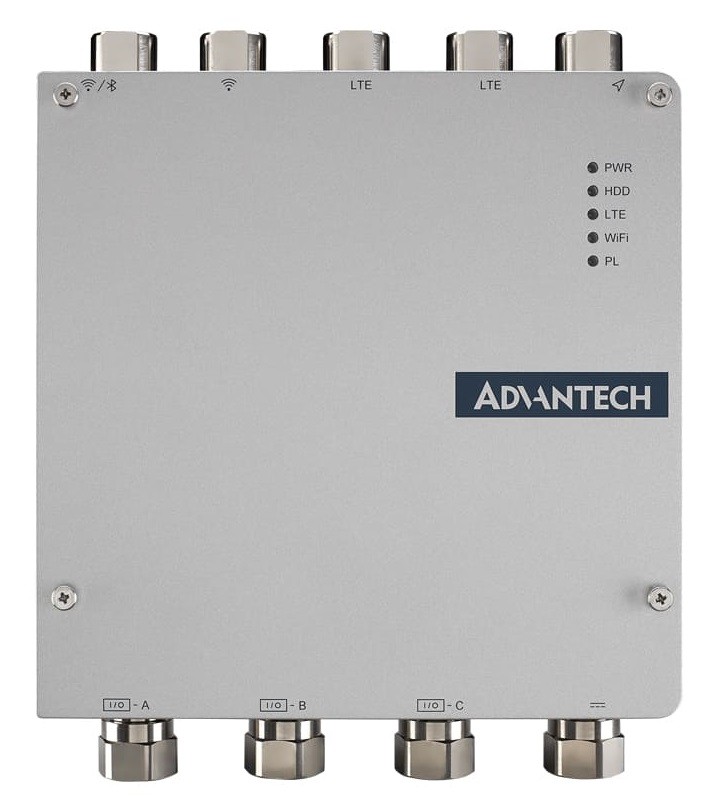

Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
WiFi | 1 St | |||
Mobilfunknetz | 1 St | |||
System Status | 1 St | |||

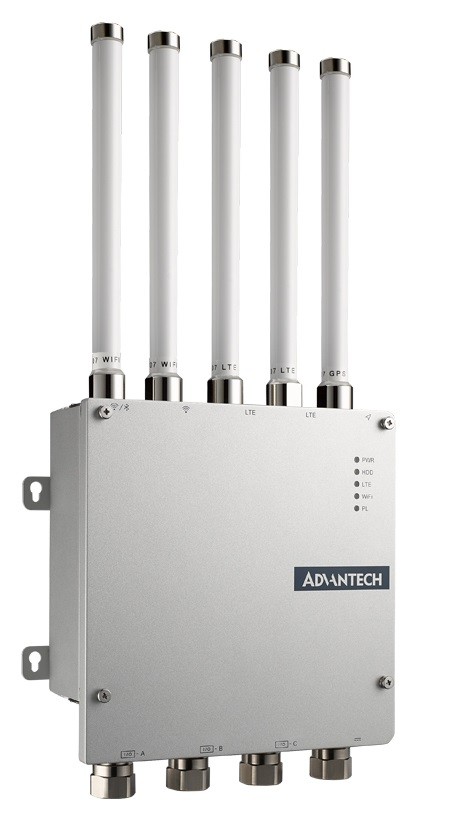

Antennenlöcher | 5 St | |||
Farbe | Weiß | |||
Material | Aluminium | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 10 Enterprise IoT LTSC (2019) | wird unterstützt | ||
Linux | Distribution | Ubuntu 18.04 LTS | ||
Unterstützte BS | Windows Embedded, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | ATEx / IECEx Zone22 Ex tc IIIC T135°C Dc, AWS loT Greengrass Certified, Class I, Division2, Group ABCD T4, Microsoft Azure Certified for IoT | |||
RoHS konform | Ja |
