Embedded System
Produkt ist EOL (End Of Life)!
// Embedded System
// Intel Celeron J1900
// 2 GHz
// Passiv cooled
// 1 x Display
// 2 x Serial
// 2 x USB (Back side)
// 1 x USB (internal)1 x G-LAN
// 1 x Mini-PCIe
// 24V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Aplex AVS-310
Allgemein | ||||
SKU / Artikelnummer | AVS-310 | |||
Produktgrunddaten | ||||
Hersteller | Aplex | |||
System | ||||
Prozessor | Vertikales Segment | Desktop | ||
Serie | Intel Bay Trail | |||
Nummer | Intel Celeron J1900 | |||
CPU Kerne | 4 St | |||
Threads | 4 St | |||
Sockel | BGA 1170 | |||
Basis Frequenz | 2 GHz | |||
Max. Turbo-Taktfrequenz | 2,42 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 10 W | |||
Lithographie | 22 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Memory Type | DDR3 | |||
Frequenz | 1333 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
VGA | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
HDMI | Maximale Auflösung | 1920 x 1200 bei 60 Hz | ||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
Storage | mSATA | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||
Interne I/O | ||||
USB | USB v2.0 | Interface | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Stromanschluss (onboard) | 1 St | |||

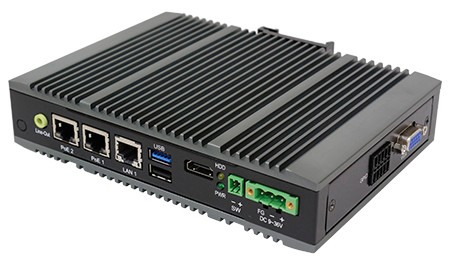

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Audio | Line-Out | 1 St | ||
USB | USB v2.0 | 1 St | ||
USB v3.0 | 1 St | |||

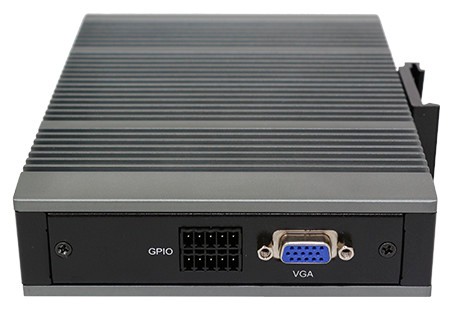

Externe I/O (seitlich) | ||||
Anzeige | VGA | 1 St | ||

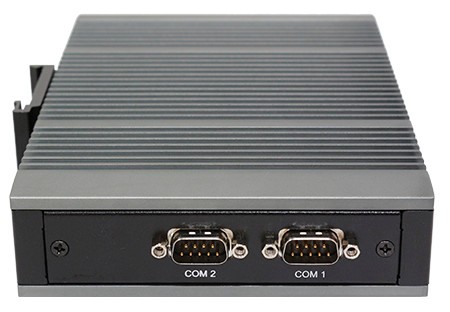

Seriell | RS-232 | DB-9 | 1 St | |
RS-232 / 422 / 485 | DB-9 | 1 St | ||
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | 10 Pin Terminal Stecker | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Bereich | 24V | |
Anschluss | 3 Pin Terminal Stecker | |||
POE | Anschlüsse | 2 St | ||
Protokoll | IEEE 802.3af / 15.4W | |||
Stromversorgung - Eingang | DC: 24V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Kühlkörper (Heat Sink) | ||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 70°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Lagerung | 10 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Embedded System | ||
Breite | 180 mm | |||
Tiefe | 130 mm | |||
Höhe | 39,5 mm | |||
Gewicht | 1850 g | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Betriebssysteme / Software | ||||
Windows | Windows 7 (32/64-bit) | wird unterstützt | ||
Windows 10 (64-bit) | wird unterstützt | |||
Unterstützte BS | Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
