Embedded System
// Embedded System
// [Intel Core Ultra 5 Processor 225H | Intel Core Ultra 7 Processor 255H]
// Passiv gekühlt
// 3 x Anzeige
// 2 x Seriell
// 2 x USB (Frontseite)
// 4 x USB (Rückseite)
// 2 x G-LAN (Rückseite)
// 3 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue EMS-ARH
Allgemein | ||||
SKU / Artikelnummer | EMS-ARH | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Arrow Lake | |||
Nummer | Intel Core Ultra 5 Processor 225H, Intel Core Ultra 7 Processor 255H | |||
CPU Kerne | 14 St, 16 St | |||
Threads | 14 St, 16 St | |||
Sockel | BGA 2049 | |||
Performance-core Grundtaktfrequenz | 1,7 GHz, 2 GHz | |||
Performance-core Max Turbo Frequenz | 4,9 GHz, 5,1 GHz | |||
Efficient-core Grundtaktfrequenz | 1,3 GHz, 1,5 GHz | |||
Efficient-core Max Turbo Frequenz | 4,3 GHz, 4,4 GHz | |||
Cache | 18 MB, 24 MB | |||
Grundleistungsaufnahme des Prozessors | 28 W | |||
Maximale Turbo-Leistungsaufnahme | 115 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 6400 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
Grafik | ||||
Prozessor | Intel Arc 130T, Intel Arc 140T | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 2.0b | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 1.4 | |||
Dual Mode | Ja (DP++) | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 4), SATA III, USB 3.2 Gen2 | |||
Unterstütze Abmaße | 2242, 3042, 3052 | |||
Slot 2 | Key ID | E | ||
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
Slot 4 | Key ID | B | ||
Interface | SATA III | |||
Unterstütze Abmaße | 2242 | |||
M.2 Key IDs | B, E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

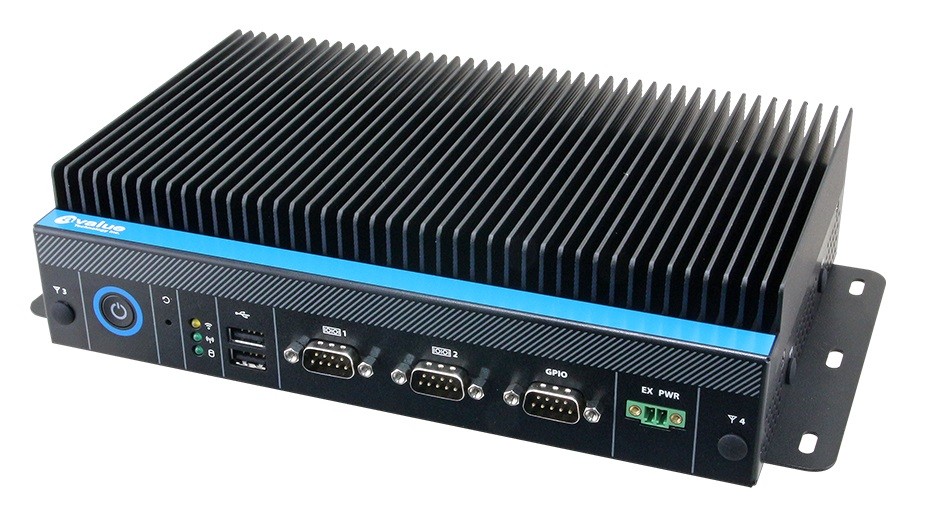

Externe I/O (Frontseite) | ||||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | DB-9 | |||
USB | USB v2.0 | 2 St | ||

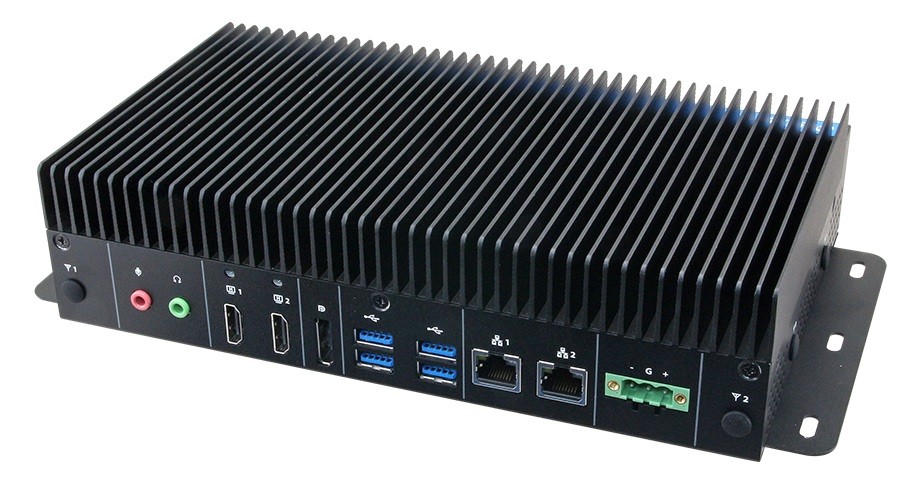

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 2 St | ||
DP++ | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 1) | 4 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 50°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 240 mm | |||
Tiefe | 150 mm | |||
Höhe | 59 mm | |||
Schutzart (IP) | IP50 | |||
Vibration | Vibration | 5G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 50G, 0.5ms | ||
Referenz Standard | IEC 68-2-27 | |||
Gewicht | 2300 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Wi-Fi | 1 St | |||
Mobilfunknetz | 1 St | |||
Antennenlöcher | 8 St | |||
Farbe | Schwarz | |||
Montageoption | Hutschiene (DIN Rail), Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
