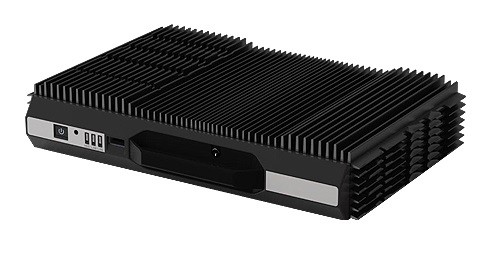

Embedded System
Produkt ist EOL (End Of Life)!
// Embedded System
// [Intel Atom E3845 | Intel Celeron J1900]
// [1,9 | 2] GHz
// Passiv cooled
// 1 x Display
// 1 x Serial
// 1 x USB (Front page)
// 2 x USB (Back side)
// 1 x G-LAN (Back side)
// 2 x Mini-PCIe
// 12~26V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue EMS-BYT
Allgemein | ||||
SKU / Artikelnummer | EMS-BYT | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Bay Trail | |||
Nummer | Intel Atom E3845, Intel Celeron J1900 | |||
CPU Kerne | 4 St | |||
Threads | 4 St | |||
Sockel | BGA 1170 | |||
Basis Frequenz | 1,9 GHz, 2 GHz | |||
Max. Turbo-Taktfrequenz | 2,42 GHz, - | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 10 W | |||
Lithographie | 22 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Memory Type | DDR3 | |||
Frequenz | 1066 / 1333 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics | |||
VGA | Maximale Auflösung | 2560 x 1080 bei 60 Hz | ||
Erweiterung | ||||
Mini-PCIe | Halbe Bautiefe | Anzahl | 1 St | |
Volle Bautiefe | Anzahl | 1 St | ||
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 2x Mini-PCIe | |||
Storage | mSATA | |||
IET Interface | GPIO, Line in, Line out (L/R), Mic in, PS/2 Keyboard, PS/2 Mouse, SMBus, UART (TX/RX) | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Netzwerk | 1x G-LAN | |||
Interne I/O | ||||
SMBus | 1 St | |||
Externe I/O (Frontseite) | ||||
USB | USB v3.0 | 1 St | ||
SIM Card Slot | 1 St | |||

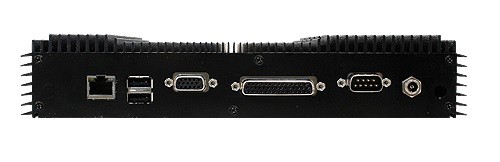

Externe I/O (Rückseite) | ||||
Anzeige | VGA | 1 St | ||
Audio | Line-In | 1 St | ||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 1 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
Digital I/O | Bits | 12-Bit | ||
USB | USB v2.0 | 2 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~26V | |||
Anschluss | Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 12~26V | |||
Stromaufnahme Maximal | 60 W | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
Einschübe | ||||
Extern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 45°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 240 mm | |||
Tiefe | 170 mm | |||
Höhe | 45 mm | |||
Vibration | Referenz Standard | IEC 68-2-64 | ||
mit SSD | 5G | |||
Schock | Referenz Standard | IEC 68-2-27 | ||
mit SSD | 50G | |||
Gewicht | 2000 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
GbE | 2 St | |||
Antennenlöcher | 2 St | |||
Farbe | Schwarz | |||
Material | Aluminium, Plastik, Stahl | |||
Montageoption | VESA, Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 7 (32/64-bit) | wird unterstützt | ||
Windows 8 (32-bit) | wird unterstützt | |||
Windows 8 (64-bit) | wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
