Embedded System
// Embedded System
// [Intel Atom x6425E | Intel Celeron J6413]
// [1,8 | 2] GHz
// 2 x Anzeige
// 2 x Seriell
// 6 x USB (Rückseite)
// 6 x G-LAN (Rückseite)
// 3 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue EMS-EHL-6LAN
Allgemein | ||||
SKU / Artikelnummer | EMS-EHL-6LAN | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Elkhart Lake | |||
Nummer | Intel Atom x6425E, Intel Celeron J6413 | |||
CPU Kerne | 4 St | |||
Threads | 4 St | |||
Sockel | BGA 1493 | |||
Basis Frequenz | 1,8 GHz, 2 GHz | |||
Max. Turbo-Taktfrequenz | 3 GHz | |||
Cache | 1,5 MB | |||
Thermal Design Power (TDP) | 10 W, 12 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 3200 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 32 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 2.0b | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 1.4 | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, 5G / Storage Module, PCIe ×4 (Gen. 3), SATA III, USB 3.2 Gen1 | |||
Unterstütze Abmaße | 2242, 3042, 3052 | |||
Slot 2 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | B | ||
Interface | SATA III | |||
Unterstütze Abmaße | 2242 | |||
M.2 Key IDs | B, E | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps), Intel I210IT PCIe (10/100/1000 Mbps) | ||
Anzahl | 4 St | |||
Bypass | -, Ja | |||
Netzwerk | 6x G-LAN | |||

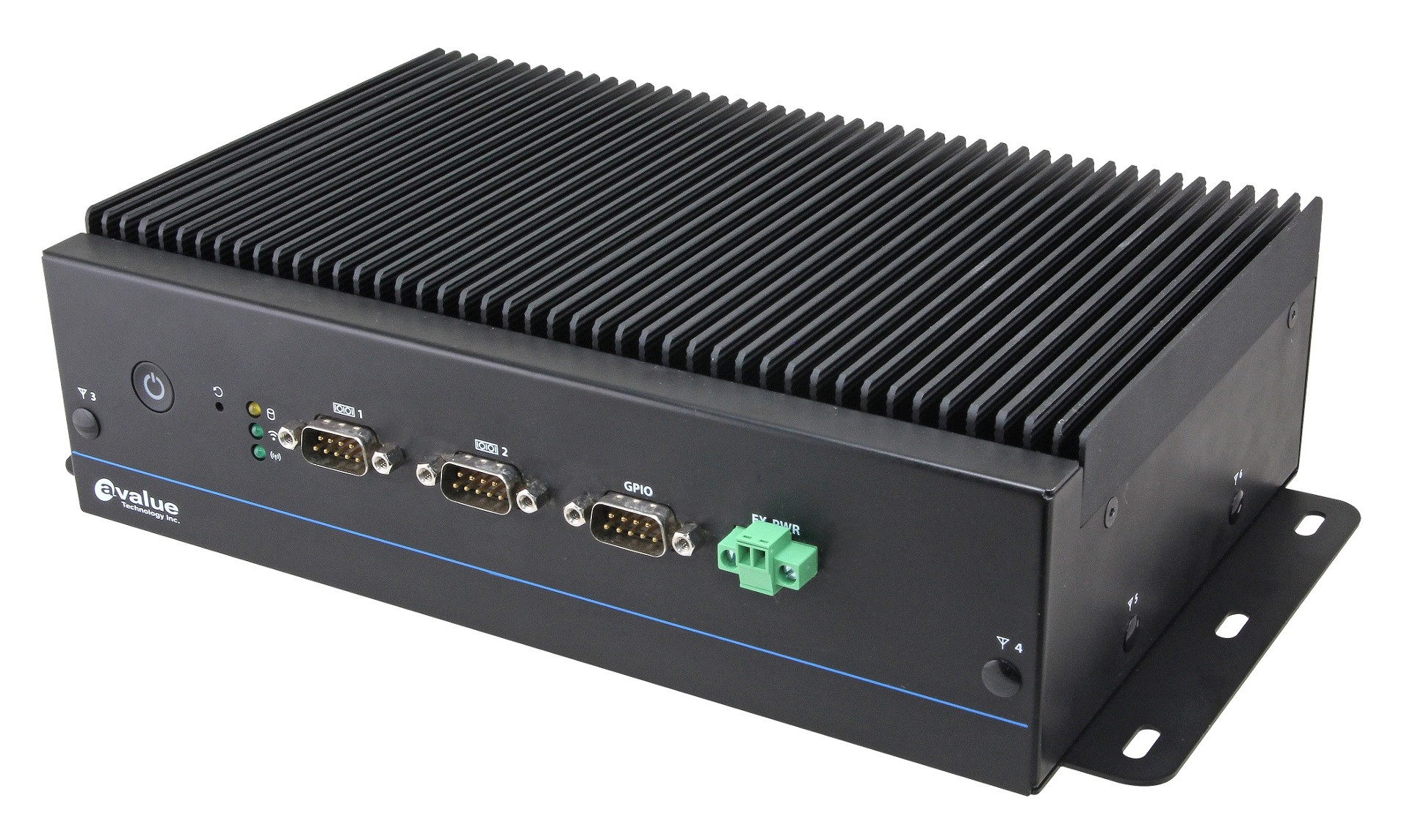

Externe I/O (Frontseite) | ||||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | DB-9 | |||

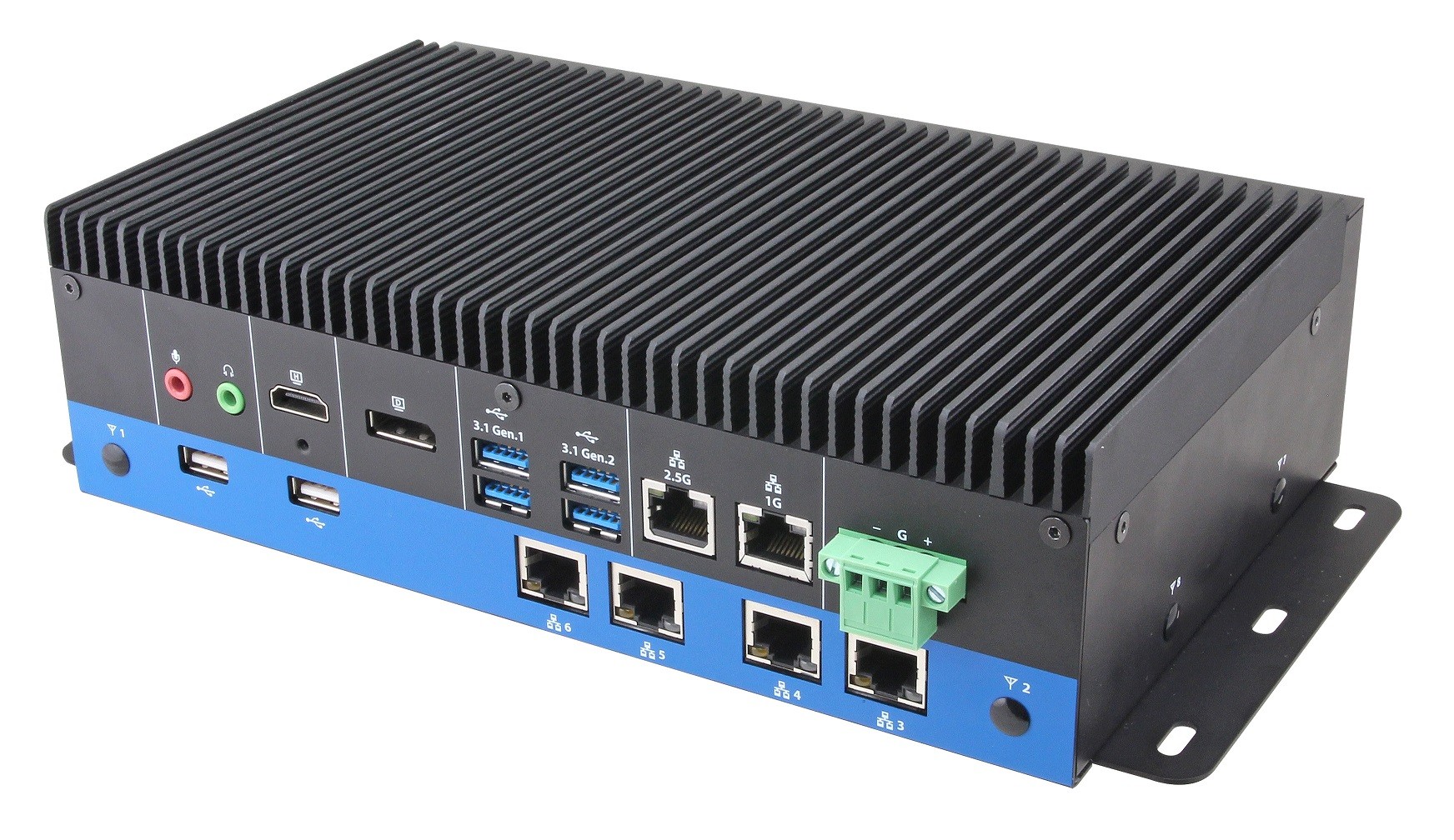

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Displayport | 1 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 6 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.2 (Gen 1) | 2 St | |||
USB v3.2 (Gen 2) | 2 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromstärke | 13 A | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 65°C, -40° bis 70°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 240 mm | |||
Tiefe | 150 mm | |||
Höhe | 64 mm | |||
Schutzart (IP) | IP50 | |||
Vibration | Referenz Standard | IEC 68-2-64 | ||
mit SSD | 5G | |||
Schock | Referenz Standard | IEC 68-2-27 | ||
mit SSD | 50G | |||
Gewicht | 1900 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
WiFi | 1 St | |||
Mobilfunknetz | 1 St | |||
Antennenlöcher | 8 St | |||
Farbe | Schwarz | |||
Material | Aluminium, Stahl | |||
Montageoption | Hutschiene (DIN Rail), Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | LVD | |||
RoHS konform | Ja |
