Embedded System
// Embedded System
// [Intel Celeron 3955U | Intel Core i3-6100U | Intel Core i5-6300U | Intel Core i7-6600U]
// [2 | 2,3 | 2,4 | 2,6] GHz
// Passiv gekühlt
// 1 x Anzeige
// 2 x Seriell
// 2 x USB (Frontseite)
// 2 x USB (Rückseite)
// 2 x G-LAN (Rückseite)
// 1 x Mini-PCIe
// 1 x M.2 Slot
// 9~32V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue EMS-SKLU
Allgemein | ||||
SKU / Artikelnummer | EMS-SKLU | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Mobile | ||
Serie | Intel Skylake | |||
Nummer | Intel Celeron 3955U, Intel Core i3-6100U, Intel Core i5-6300U, Intel Core i7-6600U | |||
CPU Kerne | 2 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1356 | |||
Basis Frequenz | 2 GHz, 2,3 GHz, 2,4 GHz, 2,6 GHz | |||
Max. Turbo-Taktfrequenz | 3 GHz, 3,4 GHz, - | |||
Cache | 2 MB, 3 MB, 4 MB | |||
Thermal Design Power (TDP) | 15 W | |||
Lithographie | 14 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
DIMM Datarate | 2133 MT/s | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
Intel vPro Plattformqualifizierung | Ja | |||
Grafik | ||||
Prozessor | Intel HD Graphics 510, Intel HD Graphics 520 | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | B | |
Interface | PCIe ×1 (Gen. 2), SATA III, USB 3.0 | |||
Unterstütze Abmaße | 2242, 3042 | |||
M.2 Key IDs | B | |||
Storage | M.2 | |||
IET Interface | Line out (L/R), SMBus, UART (TX/RX) | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I211AT PCIe (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Active Management Technology (AMT) Version | 11.0 | |||
Netzwerk | 2x G-LAN | |||
Interne I/O | ||||
PS/2 | Stiftleiste | 2 St | ||
SMBus | 1 St | |||
Audio | Anschluss | 2.00 mm Pitch | ||
Line-In | 1 St | |||
Line-Out | 1 St | |||
Mic-In | 1 St | |||
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||
Raid Unterstützung | RAID 0/1 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1 | |||

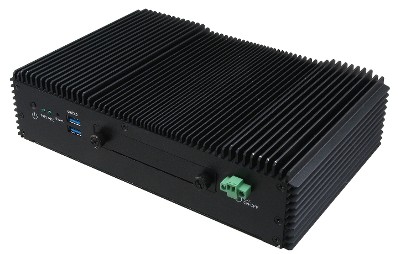

Externe I/O (Frontseite) | ||||
USB | USB v3.0 | 2 St | ||
SIM Card Slot | 2 St | |||

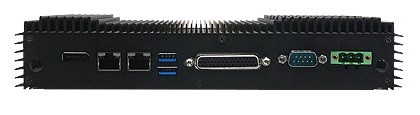

Externe I/O (Rückseite) | ||||
Anzeige | Displayport | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
Digital I/O | Bits | 12-Bit | ||
Anschluss | DB-26 | |||
USB | USB v3.0 | 2 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~32V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~32V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
Einschübe | ||||
Extern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 60°C | ||
Lagerung | -40° bis 75°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 240 mm | |||
Tiefe | 151,5 mm | |||
Höhe | 45 mm | |||
Schutzart (IP) | IP50 | |||
Vibration | Referenz Standard | IEC 68-2-64 | ||
mit SSD | 5G | |||
Schock | Referenz Standard | IEC 68-2-27 | ||
mit SSD | 50G | |||
Gewicht | 1500 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 2 St | |||
Farbe | Schwarz | |||
Material | Aluminium, Stahl | |||
Montageoption | Wandmontage |
