Embedded System
Produkt ist EOL (End Of Life)!
// Embedded System
// [Intel Celeron G6900TE | Intel Core i3-12100TE | Intel Core i5-12500TE | Intel Core i7-12700TE | Intel Core i9-12900TE | Intel Pentium Gold G7400TE]
// [1 | 1,9 | 2,1 | 2,4 | 3] GHz
// Passiv cooled
// 4 x Display
// 6 x Serial
// 4 x USB (Front page)
// 4 x USB (Back side)
// 2 x G-LAN (Back side)
// 1 x Mini-PCIe
// 3 x M.2 Slot
// 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue EPS-ADS
Allgemein | ||||
SKU / Artikelnummer | EPS-ADS | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Alder Lake | |||
Nummer | Intel Celeron G6900TE, Intel Core i3-12100TE, Intel Core i5-12500TE, Intel Core i7-12700TE, Intel Core i9-12900TE, Intel Pentium Gold G7400TE | |||
CPU Kerne | 2 St, 4 St, 6 St, 12 St, 16 St | |||
Threads | 2 St, 4 St, 8 St, 12 St, 20 St, 24 St | |||
Sockel | LGA 1700 (H6) | |||
Basis Frequenz | 1 GHz, 1,9 GHz, 2,1 GHz, 2,4 GHz, 3 GHz | |||
Performance-core Max Turbo Frequenz | 4 GHz, 4,3 GHz, 4,6 GHz, 4,8 GHz, - | |||
Efficient-core Max Turbo Frequenz | 3,4 GHz, 3,6 GHz, - | |||
Cache | 4 MB, 6 MB, 12 MB, 18 MB, 25 MB, 30 MB | |||
Thermal Design Power (TDP) | 35 W | |||
Chipsatz | Intel H610E, Intel Q670E | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
Frequenz | 4800 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
Grafik | ||||
Prozessor | Intel UHD Graphics 710, Intel UHD Graphics 730, Intel UHD Graphics 770 | |||
Bildschirme (Multidisplay) | 3 Displays, 4 Displays | |||
HDMI | Version | 2.0b | ||
Displayport | Version | 1.4 | ||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, 5G / Storage Module, PCIe ×2 (Gen. 3), SATA III, USB 2.0, USB 3.2 Gen1 | |||
Unterstütze Abmaße | 2242, 3042, 3052 | |||
Slot 2 | Key ID | E | ||
Interface | PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 3 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | B, E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 2x G-LAN | |||
Interne I/O | ||||
Serial-ATA | Raid Unterstützung | RAID 0/1 | -, wird unterstützt | |

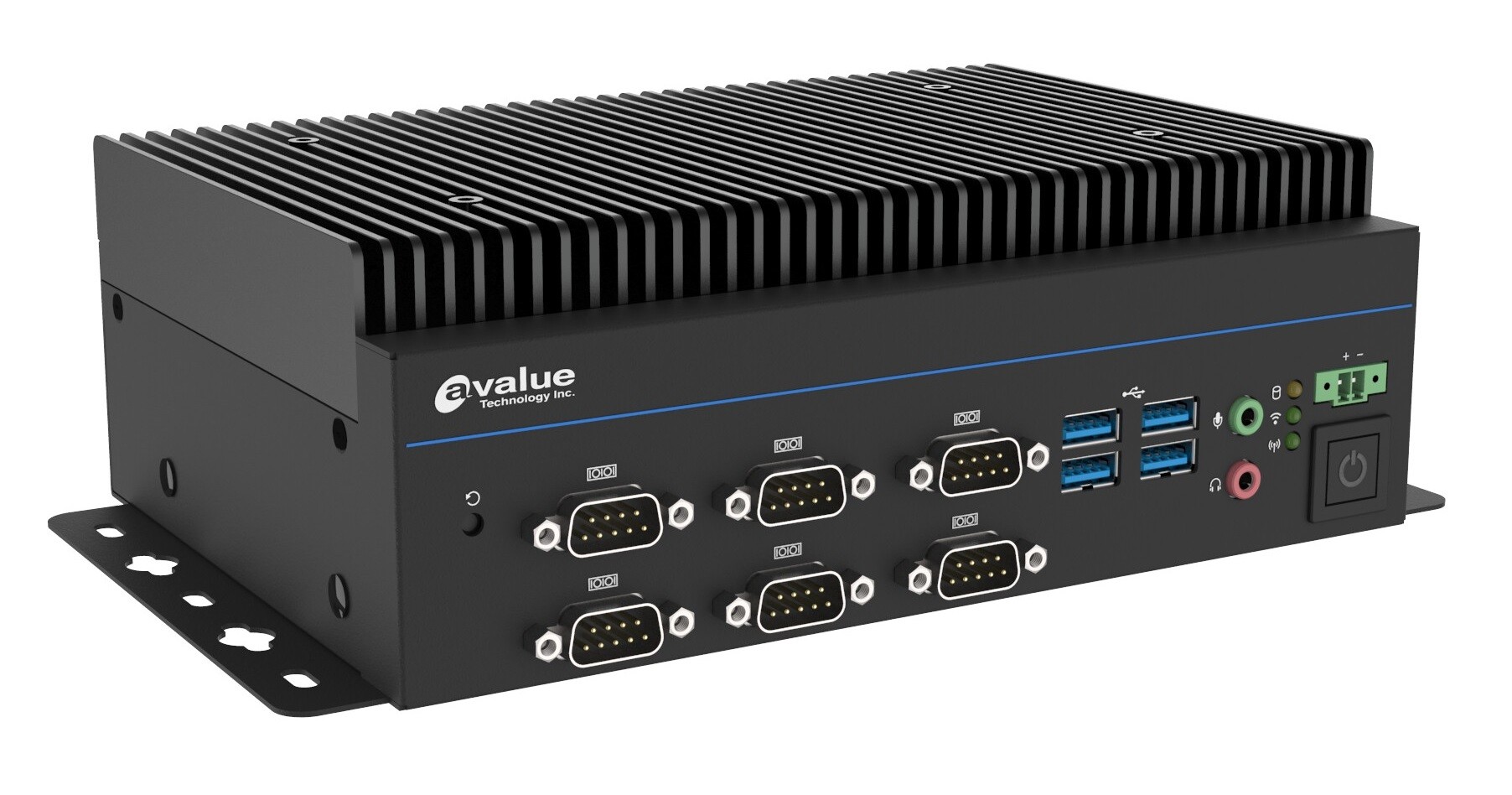

Externe I/O (Frontseite) | ||||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Seriell | RS-232 | DB-9 | 2 St | |
RS-232 / 422 / 485 | DB-9 | 4 St | ||
USB | USB v3.2 (Gen 1) | 4 St | ||

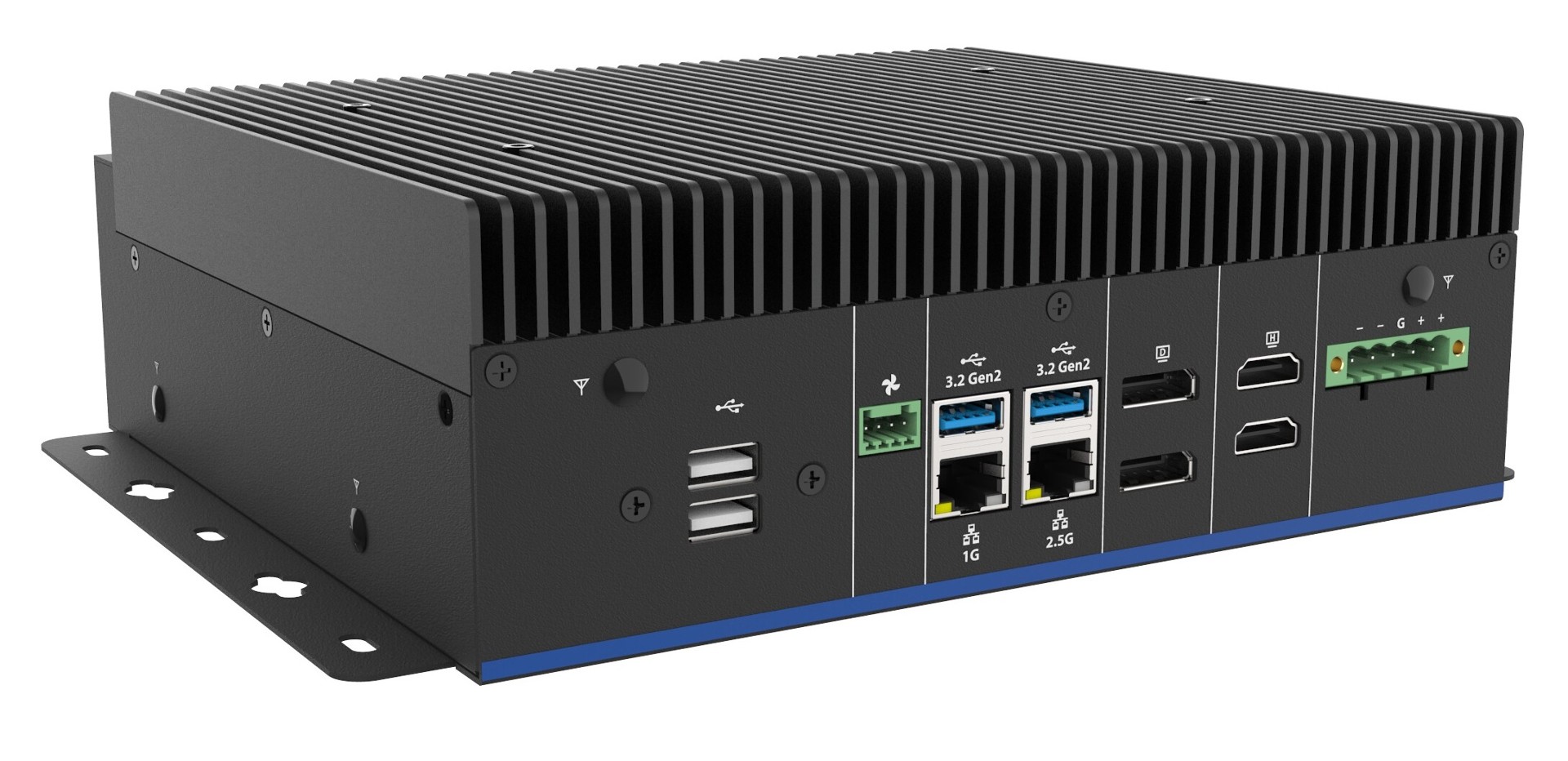

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 2 St | ||
DP++ | 2 St | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v2.0 | 2 St | ||
USB v3.2 (Gen 2) | 2 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | 5 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 12~24V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Lagerung | -30° bis 70°C | ||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 215,8 mm | |||
Tiefe | 202,5 mm | |||
Höhe | 75 mm | |||
Schutzart (IP) | IP50 | |||
Vibration | Vibration | 5G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 50G, 0.5ms | ||
Referenz Standard | IEC 68-2-27 | |||
Sturzprüfung | Referenz Standard | ISTA-2A | ||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Wi-Fi | 1 St | |||
Mobilfunknetz | 1 St | |||
Antennenlöcher | 6 St | |||
Farbe | Schwarz | |||
Material | Aluminium, Stahl | |||
Montageoption | Hutschiene (DIN Rail), Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
RoHS konform | Ja |
