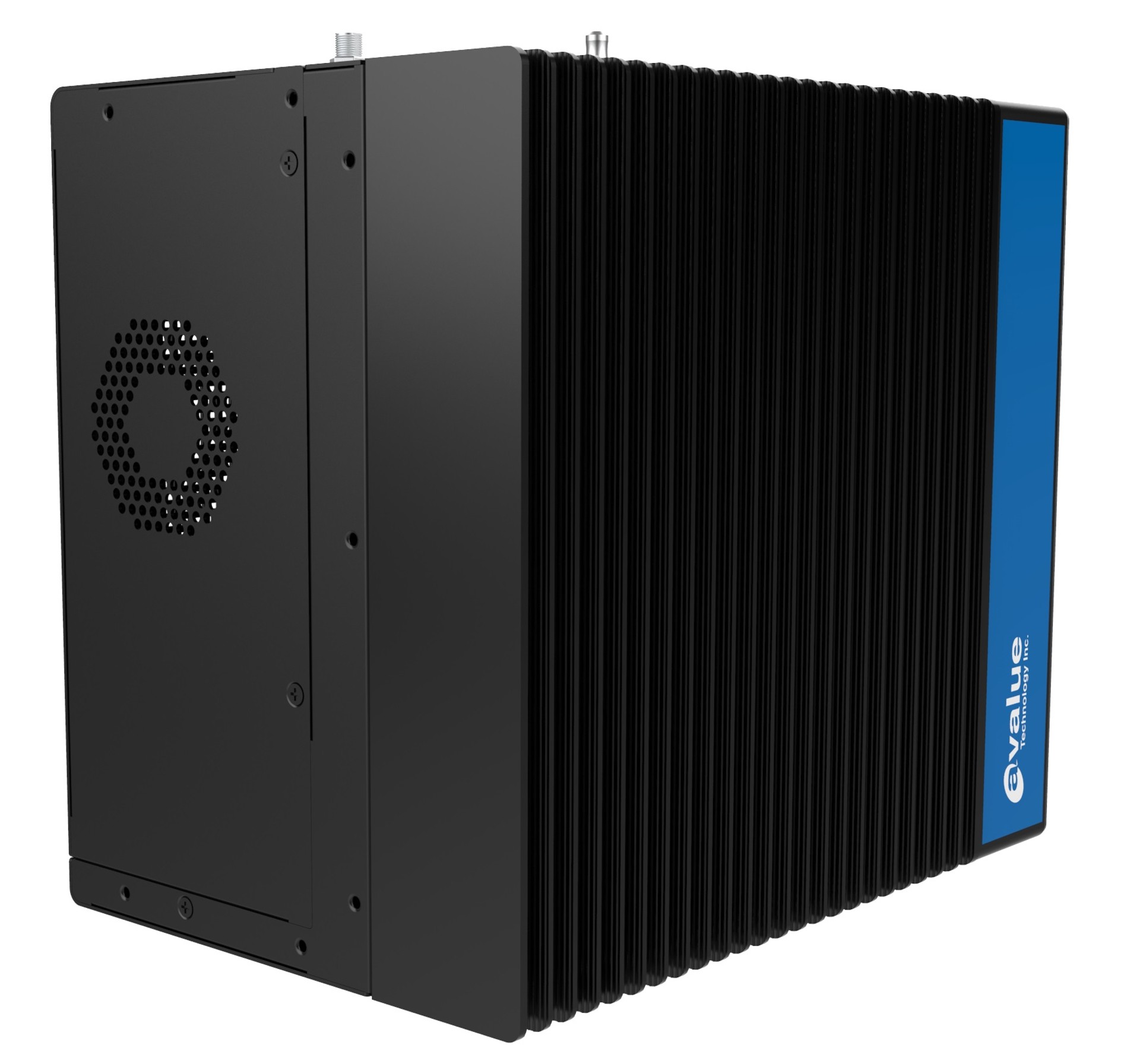

Embedded System
// Embedded System
// Intel Alder Lake / Raptor Lake
// Aktiv (Lüfterkühlung) cooled
// 4 x Display
// 8 x Serial
// 8 x USB (Front page)
// 2 x USB (internal)
// 4 x G-LAN (Front page)
// 1 x PCIe x4
// 1 x PCIe x16
// 3 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: Avalue SLP-RPR
Allgemein | ||||
SKU / Artikelnummer | SLP-RPR | |||
Produktgrunddaten | ||||
Hersteller | Avalue | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Alder Lake / Raptor Lake | |||
Sockel | LGA 1700 (H6) | |||
Thermal Design Power (TDP) | 65 W | |||
Chipsatz | Intel Q670E | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 5600 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | Nuvoton NCT6126D | |
Grafik | ||||
Bildschirme (Multidisplay) | 4 Displays | |||
HDMI | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 2.0b | |||
Displayport | Maximale Auflösung | 4096 x 2304 bei 60 Hz | ||
Version | 1.4 | |||
Dual Mode | Ja (DP++) | |||
Erweiterung | ||||
PCIe x4 | Generation | 4 | ||
x4 Signal | 1 St | |||
PCIe x16 | x16 Signal | Generation | 5 | |
Anzahl | 1 St | |||
PCIe Schnittstellen | 1x PCIe x4, 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | E | |
Interface | CNVi, PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 3), SATA III, USB 3.2 Gen1 | |||
Unterstütze Abmaße | 2242, 3042, 3052 | |||
Slot 3 | Key ID | M | ||
Interface | NVMe, PCIe ×4 (Gen. 4) | |||
Unterstütze Abmaße | 2242, 2280 | |||
Slot 4 | Key ID | B | ||
Interface | SATA III | |||
Unterstütze Abmaße | 2242 | |||
M.2 Key IDs | B, E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Nano SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 3 St | |||
Netzwerk | 4x G-LAN | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (Typ-A-Buchse) | 2 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 2 St | ||
Raid Unterstützung | RAID 0/1 | wird unterstützt | ||
RAID Unterstützung | RAID 0/1 | |||

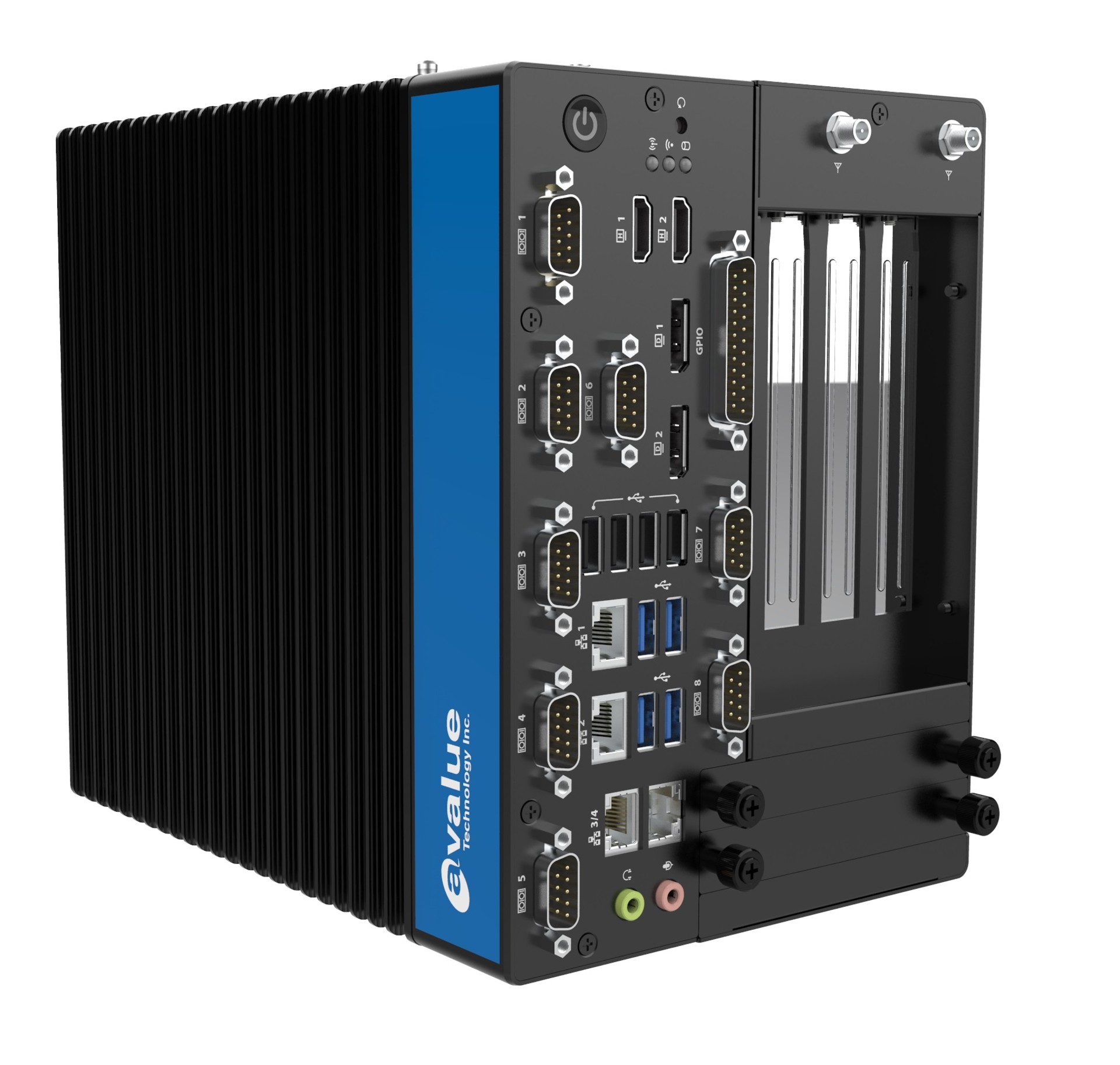

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 2 St | ||
DP++ | 2 St | |||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
Ethernet | RJ-45 | 4 St | ||
Seriell | RS-232 | DB-9 | 4 St | |
RS-232 / 422 / 485 | DB-9 | 4 St | ||
USB | USB v2.0 | 4 St | ||
USB v3.2 (Gen 2) | 4 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | dTPM 2.0 (Hardware) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||

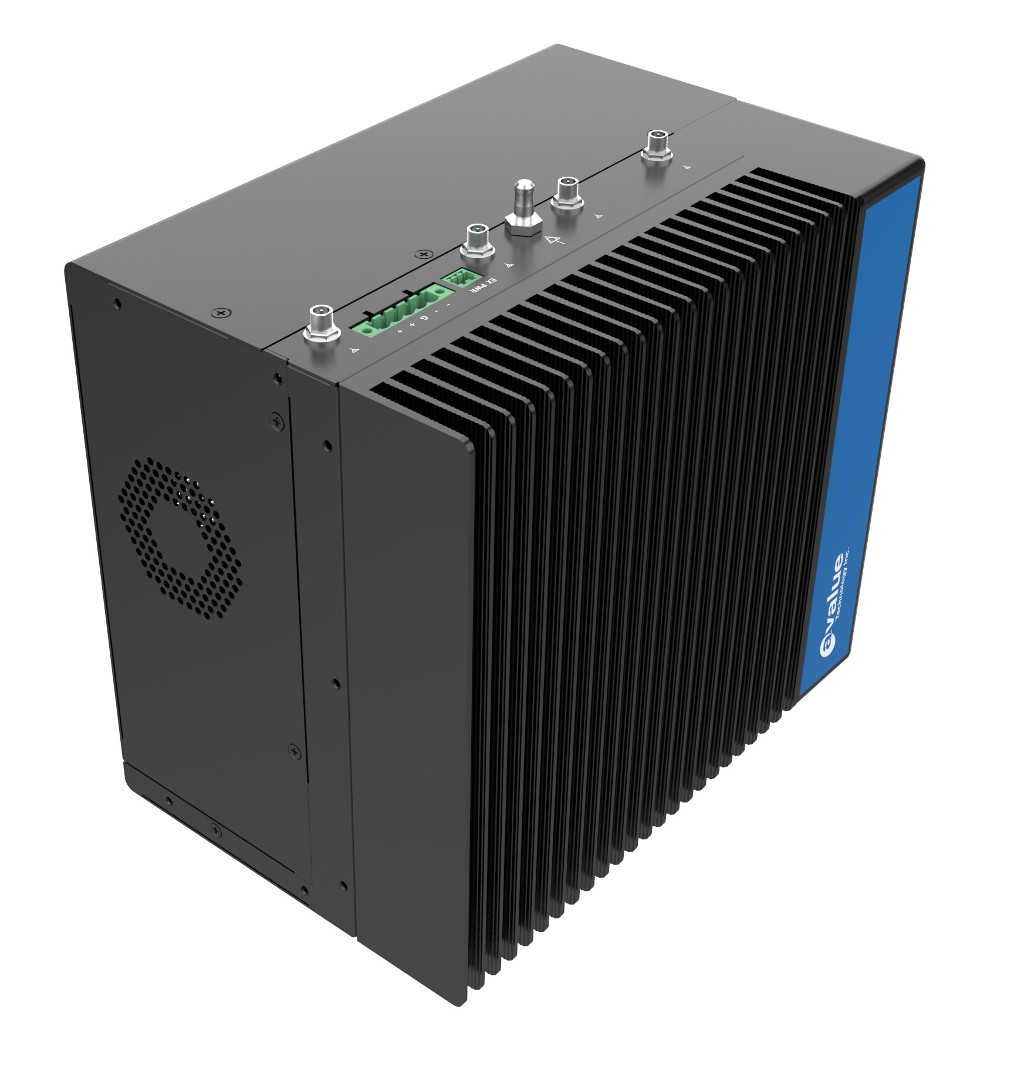

Anschluss | 5 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Aktiv (Lüfterkühlung) | |||
Einschübe | ||||
Extern | Einbauschacht 2.5" | 2 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 50°C | ||
Lagerung | -30° bis 70°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 95%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 156 mm | |||
Tiefe | 230,1 mm | |||
Höhe | 208 mm | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 50G, 0.5ms | ||
Referenz Standard | IEC 68-2-27 | |||
Sturzprüfung | Referenz Standard | ISTA-2A | ||
Fallhöhe | 0,965 m | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Reset | 1 St | |||
Statusanzeigen | Power | 1 St | ||
Wi-Fi | 1 St | |||
Mobilfunknetz | 1 St | |||
Slot Brackets | Standard | 3 St | ||
Antennenlöcher | 6 St | |||
Farbe | Schwarz | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Windows 11 | Wird unterstützt | |||
Linux | Distribution | Linux | ||
Unterstützte BS | Windows, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
RoHS konform | Ja |
