Embedded System
// [Intel Celeron 4305UE | Intel Core i3-8145UE | Intel Core i5-8365UE | Intel Core i7-8665UE]
// [1,6 | 1,7 | 2 | 2,2] GHz
// Passiv cooled
// 3 x Display
// 4 x Serial
// 1 x USB (Front page)
// 3 x USB (Back side)
// 3 x G-LAN (Front page)
// 3 x G-LAN (Back side)
// 1 x PCIe x1
// 4 x PCIe x4
// 2 x M.2 Slot
// 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

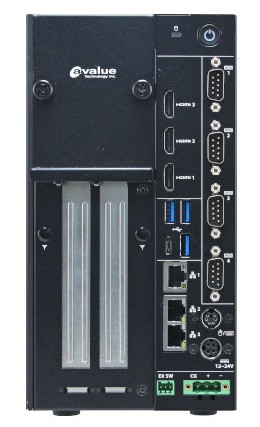

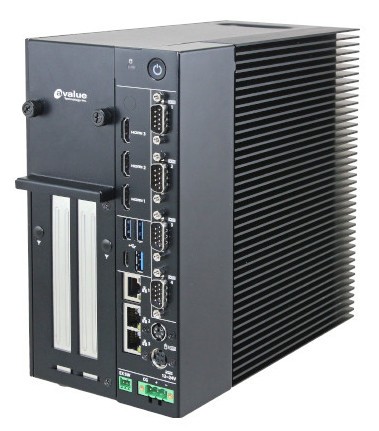

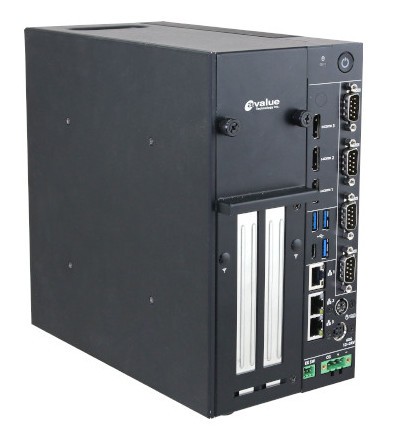

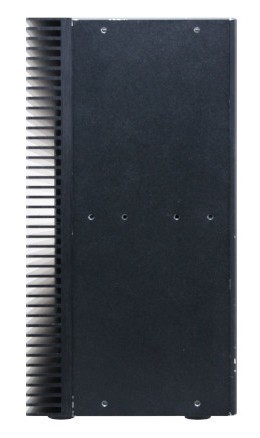

Basismodul: Avalue SLP-WHG
| Allgemein | ||||
| SKU / Artikelnummer | SLP-WHG | |||
| Produktgrunddaten | ||||
| Hersteller | Avalue | |||
| System | ||||
| Prozessor | Vertikales Segment | Embedded | ||
| Serie | Intel Whiskey Lake | |||
| Nummer | Intel Celeron 4305UE, Intel Core i3-8145UE, Intel Core i5-8365UE, Intel Core i7-8665UE | |||
| CPU Kerne | 2 St, 4 St | |||
| Threads | 2 St, 4 St, 8 St | |||
| Sockel | BGA 1528 | |||
| Basis Frequenz | 1,6 GHz, 1,7 GHz, 2 GHz, 2,2 GHz | |||
| Max. Turbo-Taktfrequenz | 2 GHz, 3,9 GHz, 4,1 GHz, 4,4 GHz | |||
| Cache | 2 MB, 4 MB, 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Lithographie | 14 nm | |||
| Chipsatz | SoC (System-On-Chip) | |||
| Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
| Memory Type | DDR4 | |||
| IC Data Rate | 2133 MHz | |||
| Maximaler Ausbau | 32 GB | |||
| ECC | wird nicht unterstützt | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Grafik | ||||
| Prozessor | Intel UHD Graphics 610, Intel UHD Graphics 620 | |||
| Bildschirme (Multidisplay) | 3 Displays | |||
| HDMI | Maximale Auflösung | 3840 x 2160 bei 30 Hz | ||
| Version | 1.4b | |||
| Erweiterung | ||||
| PCIe x1 | x1 Signal | 1 St | ||
| PCIe x4 | x4 Signal | 4 St | ||
| PCIe Schnittstellen | 1x PCIe x1, 4x PCIe x4 | |||
| M.2 | Slot 1 | Key ID | A | |
| Interface | WiFi+BT | |||
| Unterstütze Abmaße | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | SATA III, USB 2.0 | |||
| Unterstütze Abmaße | 2242, 2260, 2280, 3042 | |||
| M.2 Key IDs | A, B | |||
| SIM | Anzahl | 1 St | ||
| Formfaktor (Slot) | Micro SIM | |||
| Audio | ||||
| Chipsatz | Realtek ALC888 | |||
| Netzwerk | ||||
| G-LAN | Controller | Chipsatz | Intel I219LM PCIe mit AMT mit Core i5/i7 (10/100/1000 Mbps) | |
| Anzahl | 1 St | |||
| Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps) | ||
| Anzahl | 2 St | |||
| Netzwerk | 3x G-LAN | |||
| Interne I/O | ||||
| Audio | Line-Out | 1 St | ||
| Mic-In | 1 St | |||
| Externe I/O (Frontseite) | ||||
| Ethernet | RJ-45 | 3 St | ||
| USB | USB v3.0 (Type C) | 1 St | ||
| SIM Card Slot | 1 St | |||
| Externe I/O (Rückseite) | ||||
| Anzeige | HDMI | 3 St | ||
| Ethernet | RJ-45 | 3 St | ||
| PS/2 | mini-DIN-6 | 2 St | ||
| Seriell | RS-232 | DB-9 | 4 St | |
| USB | USB v3.1 Gen. 1 | 3 St | ||
| Watchdog Zeitgeber | ||||
| Watchdog Zeitgeber | Ja | |||
| Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 65535 Sekunden) | |||
| Sicherheit | ||||
| Trusted Platform Modul (TPM) | v2.0 | |||
| Stromversorgung | ||||
| Typ (Eingang) | DC | Weitbereich | Ja | |
| Bereich | 12~24V | |||
| Anschluss | 3 Pin Terminal Stecker | |||
| Stromversorgung - Eingang | DC: 12~24V | |||
| Kühlung | ||||
| Umsetzung | Passiv | |||
| Einschübe | ||||
| Intern | Einbauschacht 2.5" | 1 St | ||
| Mechanik / Umgebung | ||||
| Temperatur | Betrieb (SSD) | -20° bis 50°C | ||
| Lagerung | -30° bis 70°C | |||
| Relative Luftfeuchtigkeit | Betrieb | 40 bis 95%, nicht kondensierend | ||
| Abmaße | Breite | 217 mm | ||
| Tiefe | 220 mm | |||
| Höhe | 115 mm | |||
| Vibration | Referenz Standard | IEC 68-2-64 | ||
| mit SSD | 5~500 HZ, 1G | |||
| Schock | Referenz Standard | IEC 68-2-27 | ||
| mit SSD | 11 ms, 15G, 3 Axen | |||
| Sturzprüfung | Referenz Standard | ISTA-2A | ||
| Gewicht | 2600 g | |||
| Bedienelemente | Power | 1 St | ||
| Statusanzeigen | Storage | 1 St | ||
| Power | 1 St | |||
| Antennenlöcher | 2 St | |||
| Betriebssysteme / Software | ||||
| Windows | Windows 10 (64-bit) | wird unterstützt | ||
| Linux | Distribution | Linux | ||
| Unterstützte BS | Linux, Windows | |||
| Zertifikate / Konformitäten | ||||
| CE | Ja | |||
| FCC | Class A | Ja | ||
| RoHS konform | Ja | |||
