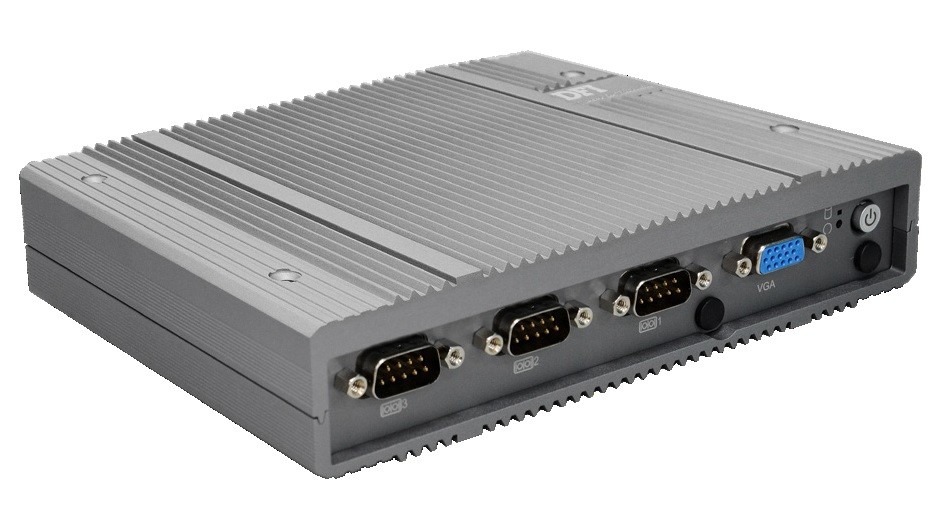

Embedded System
// Embedded System
// Intel Atom X7433RE
// Passiv gekühlt
// 16 GB RAM
// 2 x Anzeige
// 4 x Seriell
// 4 x USB (Rückseite)
// 3 x G-LAN (Rückseite)
// 3 x M.2 Slot
// 9~36V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: DFI EC700-ASL
Allgemein | ||||
SKU / Artikelnummer | EC700-ASL | |||
Produktgrunddaten | ||||
Hersteller | DFI | |||
Produkt-ID | 750-EC7005-400G | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Amston Lake | |||
Nummer | Intel Atom X7433RE | |||
CPU Kerne | 4 St | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 3,4 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 9 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR5 | ||
Frequenz | 4800 MHz | |||
Maximaler Ausbau | 16 GB | |||
Speicher onBoard | 16 GB | |||
BIOS | AMI UEFI 256 Mbit SPI | |||
I/O Controller | Controller 1 | I/O Controller | ITE IT8786E | |
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
HDMI | Version | 1.4 | ||
Displayport | Version | 1.2 | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | CNVi, PCIe ×1 (Gen. 3), USB 2.0 | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 3), USB 2.0, USB 3.0 | |||
Unterstütze Abmaße | 3042, 3052 | |||
Slot 3 | Key ID | M | ||
Interface | NVMe, PCIe ×2, SATA III | |||
Unterstütze Abmaße | 2242, 2280 | |||
M.2 Key IDs | B, E, M | |||
SIM | Anzahl | 1 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps) | ||
Anzahl | 1 St | |||
Netzwerk | 3x G-LAN | |||

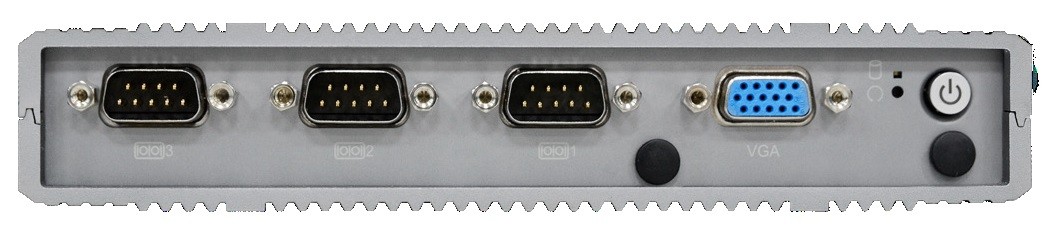

Externe I/O (Frontseite) | ||||
Anzeige | VGA | 1 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 3 St | |

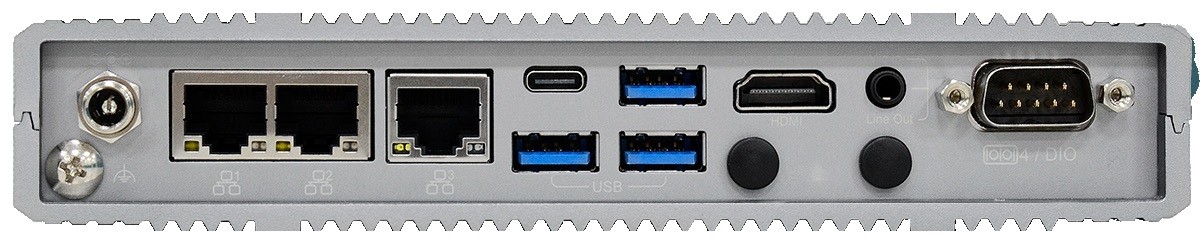

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
DP USB-C | 1 St | |||
Audio | Combo Jack | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
RJ-45 mit OOB | 1 St | |||
Seriell | RS-232 / 422 / 485 | DB-9 | 1 St | |
Digital I/O | Anzahl | 1 St | ||
Bits | 8-Bit | |||
Anschluss | DB-9 | |||
USB | USB v3.2 (Gen 1) | 3 St | ||
USB v3.2 (Gen 2, Type C) | 1 St | |||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | Auf Anfrage | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Real-Time Clock (RTC) Batterie | CR2032 Knopfbatterie | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 65°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 10 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 180 mm | |||
Tiefe | 127,8 mm | |||
Höhe | 33 mm | |||
Vibration | Vibration | 3G, 10~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 30G, 18 ms | ||
Referenz Standard | IEC 68-2-27 | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 4 St | |||
Farbe | Silber | |||
Material | Aluminium, Stahl | |||
Montageoption | Hutschiene (DIN Rail), VESA, Wandmontage | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 11 IoT | wird unterstützt | ||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Windows Embedded, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | UKCA | |||
RoHS konform | Ja |
