Embedded System
// Embedded System
// [Intel Atom x6212RE | Intel Atom x6414RE]
// [1,2 | 1,5] GHz
// 2 x Display
// 4 x Serial
// 4 x USB (Back side)
// 3 x G-LAN (Back side)
// 2 x Mini-PCIe
// 1 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IBASE AGS101T
Allgemein | ||||
SKU / Artikelnummer | AGS101T | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Elkhart Lake | |||
Nummer | Intel Atom x6212RE, Intel Atom x6414RE | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1493 | |||
Basis Frequenz | 1,2 GHz, 1,5 GHz | |||
Cache | 1,5 MB | |||
Thermal Design Power (TDP) | 6 W, 9 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Frequenz | 3200 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 2 Displays | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 2 St | |
USB Unterstützung | Ja | |||
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 2x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | B | |
Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 2), USB 3.0 | |||
Unterstütze Abmaße | 3052 | |||
M.2 Key IDs | B | |||
SIM | Anzahl | 2 St | ||
Formfaktor (Slot) | Micro SIM | |||
Storage | mSATA | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 3 St | |||
Netzwerk | 3x G-LAN | |||
Interne I/O | ||||
Digital I/O | Bits | 8-Bit | 1 St | |

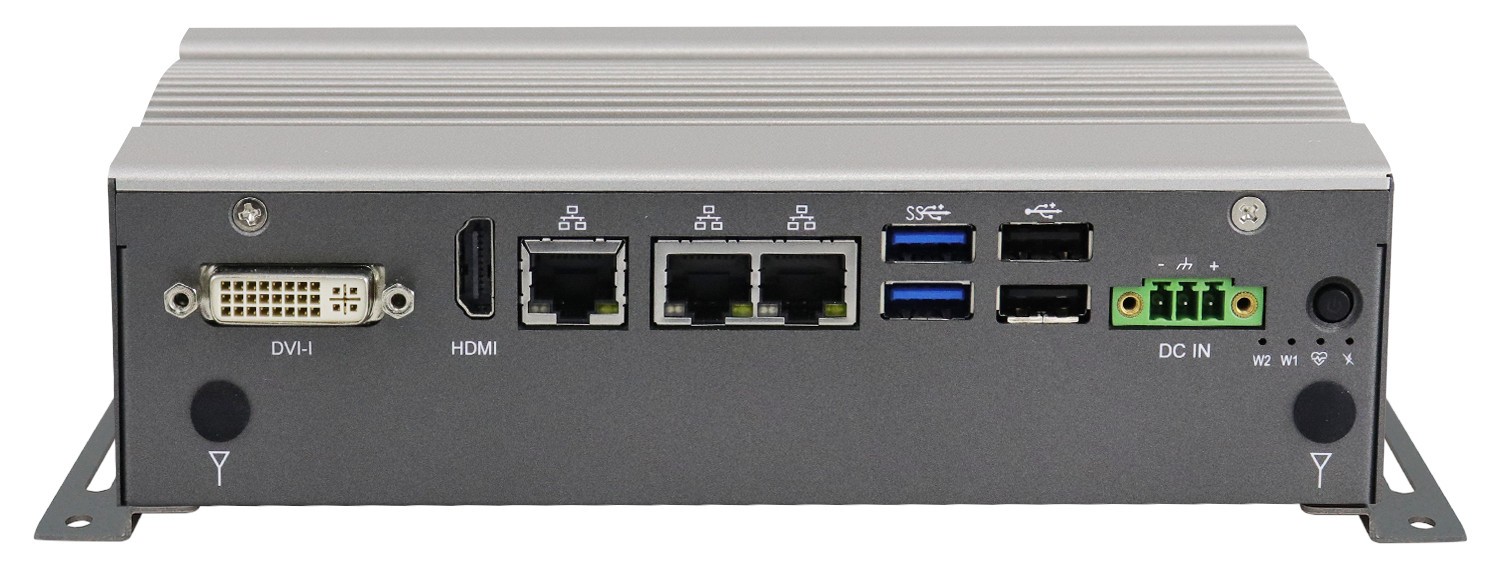

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
DVI | DVI-I Signal | 1 St | ||
Ethernet | RJ-45 | 3 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
USB | USB v2.0 | 2 St | ||
USB v3.1 Gen. 1 | 2 St | |||

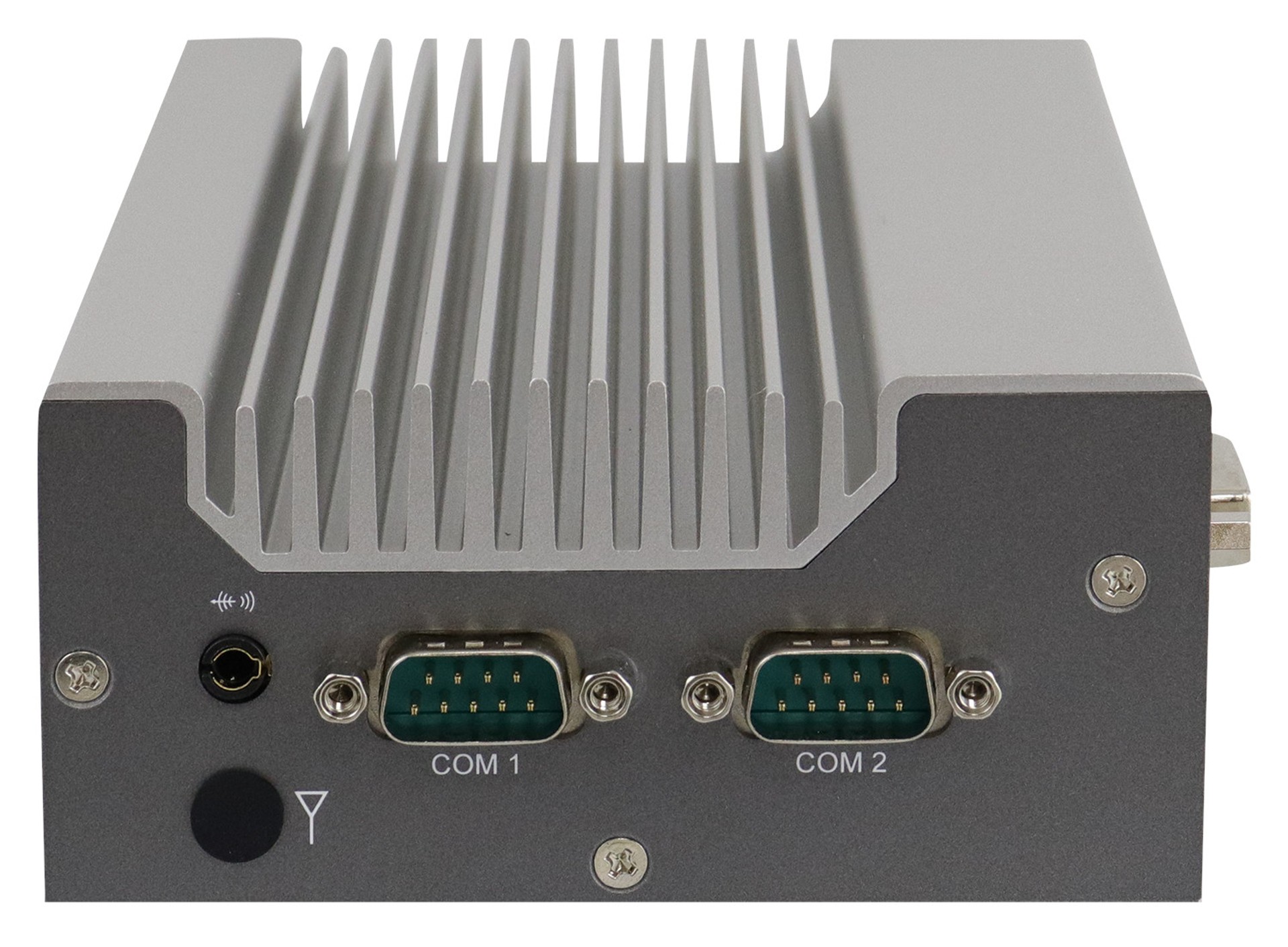

Externe I/O (seitlich) | ||||
Audio | Line-Out | 1 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 70°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Embedded System | ||
Breite | 218 mm | |||
Tiefe | 110 mm | |||
Höhe | 52 mm | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
Schock | Messdaten | 30G, 18 ms | ||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
GbE | 1 St | |||
Wi-Fi | 1 St | |||
Antennenlöcher | 3 St | |||
Farbe | Silber | |||
Material | Aluminium, Stahl | |||

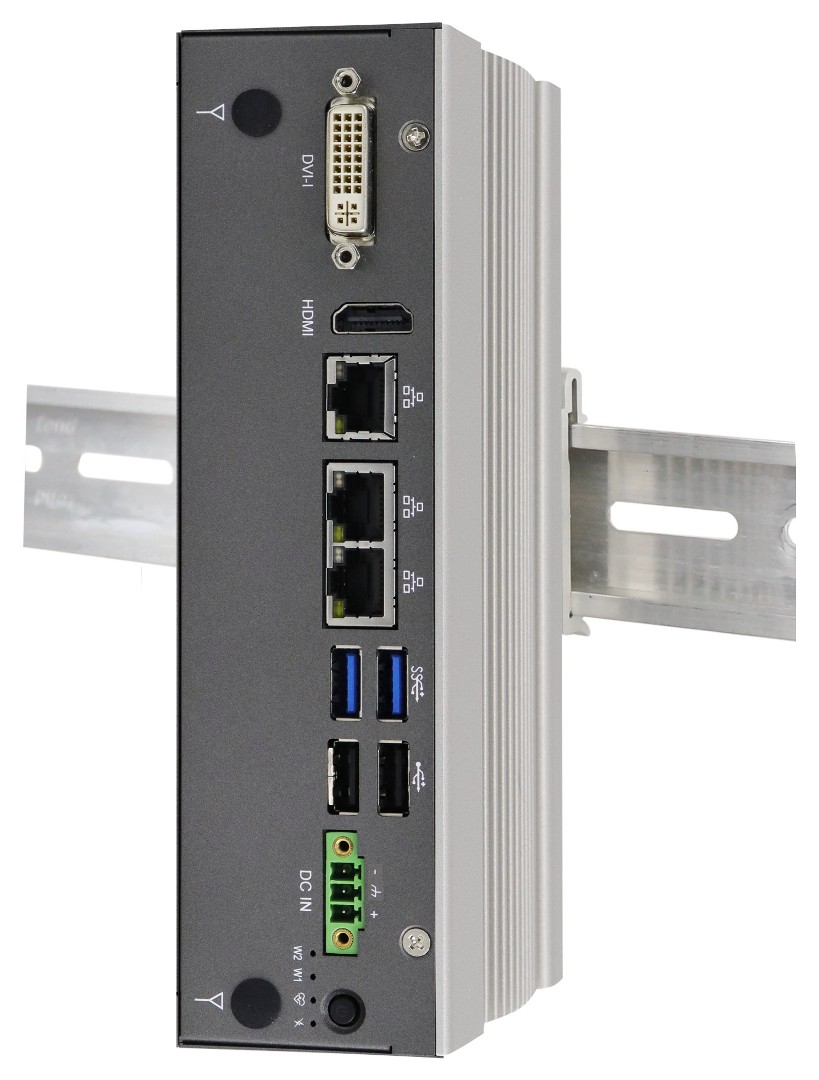

Montageoption | Hutschiene (DIN Rail), Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Ubuntu 20.04 | ||
Unterstützte BS | Linux, Windows | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | EN 62368-1, IEC 62368-1, LVD | |||
RoHS konform | Ja |
