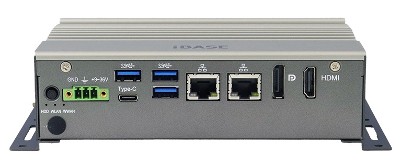

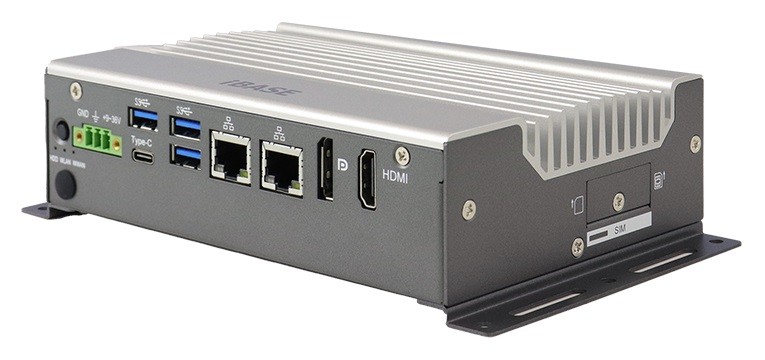

Embedded System
// Embedded System
// [Intel Atom X7211RE | Intel Atom X7433RE]
// Passiv cooled
// [8 GB | -] RAM
// 2 x Display
// 2 x Serial
// 4 x USB (Front page)
// 2 x G-LAN (Front page)
// 1 x Mini-PCIe
// 2 x M.2 Slot
// 9~36V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IBASE AGS104L
Allgemein | ||||
SKU / Artikelnummer | AGS104L | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Amston Lake | |||
Nummer | Intel Atom X7211RE, Intel Atom X7433RE | |||
CPU Kerne | 2 St, 4 St | |||
Sockel | BGA 1264 | |||
Max. Turbo-Taktfrequenz | 2,9 GHz, 3,4 GHz | |||
Cache | 6 MB | |||
Thermal Design Power (TDP) | 6 W, 9 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
DIMM Type | Unbuffered SO-DIMM | |||
Frequenz | 4800 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 16 GB | |||
ECC | wird nicht unterstützt | |||
Speicher onBoard | 8 GB, - | |||
Storage | Solid State Drive (mSATA) | 128 GB, - | ||
Grafik | ||||
Prozessor | Intel UHD Graphics | |||
Bildschirme (Multidisplay) | 3 Displays | |||
Erweiterung | ||||
Mini-PCIe | Volle Bautiefe | Anzahl | 1 St | |
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 1x Mini-PCIe | |||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×1 (Gen. 2), USB 2.0, WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 3), SATA III, USB 3.2 Gen1 | |||
Unterstütze Abmaße | 3052 | |||
M.2 Key IDs | B, E | |||
Storage | M.2, mSATA | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||

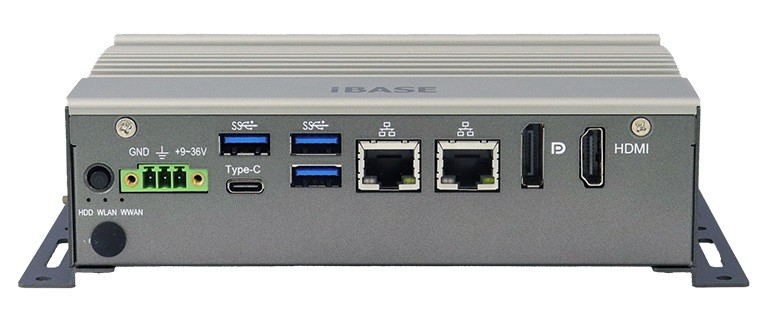

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 1 St | ||
DP++ | 1 St | |||
DP USB-C | 1 St | |||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.1 (Gen 2, Type C) | 1 St | ||
USB v3.2 (Gen 1) | 3 St | |||
SIM Card Slot | 2 St | |||
Externe I/O (seitlich) | ||||
Audio | Combo Jack | 1 St | ||
Seriell | RS-232 / 422 / 485 | DB-9 | 2 St | |
Sicherheit | ||||
Trusted Platform Modul (TPM) | fTPM 2.0 (Firmware Simulation) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 9~36V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 9~36V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -40° bis 70°C | ||
Lagerung | -40° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 160 mm | |||
Tiefe | 44 mm | |||
Höhe | 110 mm | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Schock | Messdaten | 30G, 18 ms | ||
Gewicht | 1000 g | |||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Wi-Fi | 1 St | |||
Antennenlöcher | 3 St | |||
Farbe | Dunkel Grau | |||
Material | Aluminium, Stahl | |||

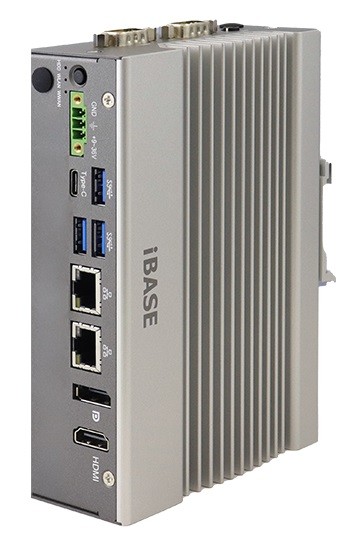

Montageoption | Hutschiene (DIN Rail), Wandmontage | |||
Betriebssysteme / Software | ||||
Windows Embedded | Windows 11 IoT | wird unterstützt | ||
Linux | Distribution | Ubuntu 22.04 | ||
Unterstützte BS | Linux, Windows Embedded | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | LVD | |||
RoHS konform | Ja |
