Embedded System
// Embedded System
// Intel Alder Lake / Raptor Lake
// Passiv cooled
// 4 x Display
// 4 x Serial
// 8 x USB (Front page)
// 2 x G-LAN (Front page)
// 2 x G-LAN (Back side)
// 3 x M.2 Slot
// 24V
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IBASE AMI240AFM
Allgemein | ||||
SKU / Artikelnummer | AMI240AFM | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Vertikales Segment | Desktop | ||
Serie | Intel Alder Lake / Raptor Lake | |||
Sockel | LGA 1700 (H6) | |||
Thermal Design Power (TDP) | 35 W | |||
Chipsatz | Intel Q670E | |||
Speicher | Aufbau | 262 Pin SO-DIMM DDR5 | ||
Memory Type | DDR5 | |||
Frequenz | 5600 MHz | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Grafik | ||||
HDMI | Version | 2.0b | ||
Displayport | Version | 1.2 | ||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | E | |
Interface | WiFi+BT | |||
Unterstütze Abmaße | 2230 | |||
Slot 2 | Key ID | B | ||
Interface | 4G/LTE, 5G / Storage Module | |||
Unterstütze Abmaße | 3042, 3052 | |||
Slot 3 | Key ID | M | ||
Interface | NVMe | |||
Unterstütze Abmaße | 2280 | |||
M.2 Key IDs | B, E, M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
Anzahl | 1 St | |||
Controller | Chipsatz | Intel I210IT PCIe (10/100/1000 Mbps) | ||
Anzahl | 2 St | |||
Active Management Technology (AMT) Version | 16.1 | |||
Netzwerk | 4x G-LAN | |||

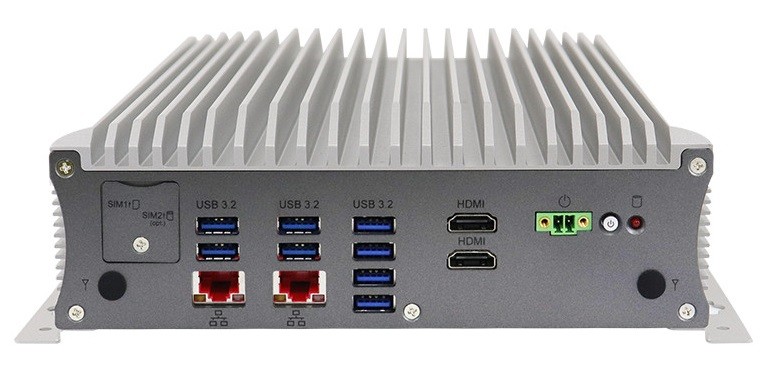

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 2 St | ||
Audio | Combo Jack | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 1) | 8 St | ||
SIM Card Slot | 2 St | |||

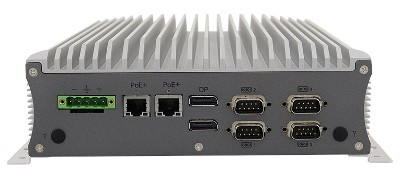

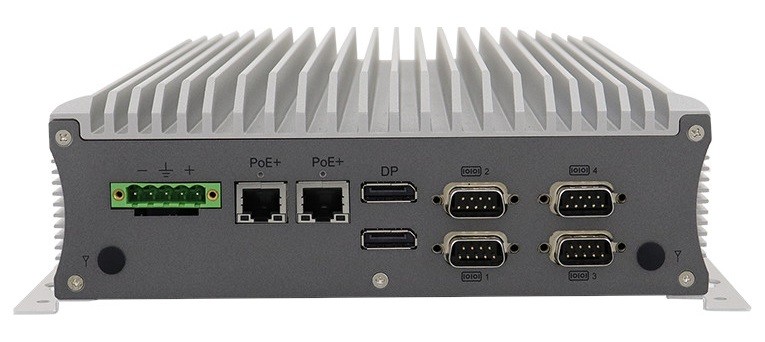

Externe I/O (Rückseite) | ||||
Anzeige | Displayport | 2 St | ||
Ethernet | RJ-45 mit POE | 2 St | ||
Seriell | RS-232 | DB-9 | 2 St | |
RS-232 / 422 / 485 | DB-9 | 2 St | ||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 24V | |||
Anschluss | 5 Pin Terminal Stecker | |||
POE+ | Anzahl | 2 St | ||
Protokoll | IEEE 802.3at / 25,5W | |||
Stromversorgung - Eingang | DC: 24V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -20° bis 70°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 210 mm | |||
Tiefe | 285 mm | |||
Höhe | 77 mm | |||
Schutzart (IP) | IP40 (komplett) | |||
Vibration | Vibration | 0,25G, 5~500 Hz | ||
Schock | Messdaten | 20G, 11 ms | ||
Gewicht | 4100 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Antennenlöcher | 4 St | |||
Farbe | Silber | |||
Material | Aluminium, Stahl | |||
Montageoption | Wandmontage | |||
Betriebssysteme / Software | ||||
Windows | Windows 10 (64-bit) | wird unterstützt | ||
Linux | Distribution | Linux | ||
Unterstützte BS | Windows, Linux | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class A | Ja | ||
Weitere Zertifikate / Konformitäten | EN 55032, EN 62368-1, IEC 62368-1, LVD | |||
RoHS konform | Ja |
