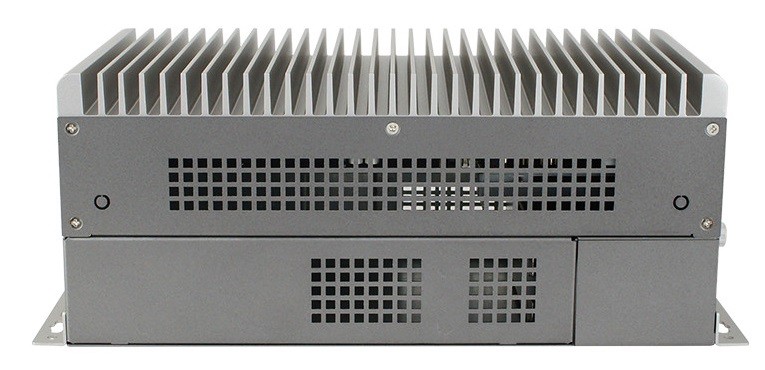

Embedded System
// Embedded System
// [Intel Core i3-1115G4E | Intel Core i5-1145G7E | Intel Core i7-1185G7E]
// [1,5 | 1,8 | 2,2] GHz
// Passiv cooled
// 2 x Display
// 2 x Serial
// 6 x USB (Back side)
// 3 x G-LAN (Back side)
// 1 x PCIe x4
// 1 x PCIe x16
// 2 x M.2 Slot
// 24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IBASE AMS322
Allgemein | ||||
SKU / Artikelnummer | AMS322 | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Tiger Lake | |||
Nummer | Intel Core i3-1115G4E, Intel Core i5-1145G7E, Intel Core i7-1185G7E | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 4 St, 8 St | |||
Sockel | BGA 1449 | |||
Basis Frequenz | 1,5 GHz, 1,8 GHz, 2,2 GHz | |||
Max. Turbo-Taktfrequenz | 3,9 GHz, 4,1 GHz, 4,4 GHz | |||
Cache | 6 MB, 8 MB, 12 MB | |||
Thermal Design Power (TDP) | 28 W | |||
Lithographie | 10 nm | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 260 Pin SO-DIMM DDR4 | ||
Memory Type | DDR4 | |||
Steckplätze | 2 St | |||
Maximaler Ausbau | 64 GB | |||
Erweiterung | ||||
PCIe x4 | x4 Signal | 1 St | ||
PCIe x16 | x16 Signal | Anzahl | 1 St | |
PCIe Schnittstellen | 1x PCIe x4, 1x PCIe x16 | |||
M.2 | Slot 1 | Key ID | E | |
Interface | PCIe ×2, USB 2.0 | |||
Unterstütze Abmaße | 2242 | |||
Slot 2 | Key ID | B | ||
Interface | USB 2.0, USB 3.0 | |||
Unterstütze Abmaße | 3052 | |||
M.2 Key IDs | B, E | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 3 St | |||
Netzwerk | 3x G-LAN | |||

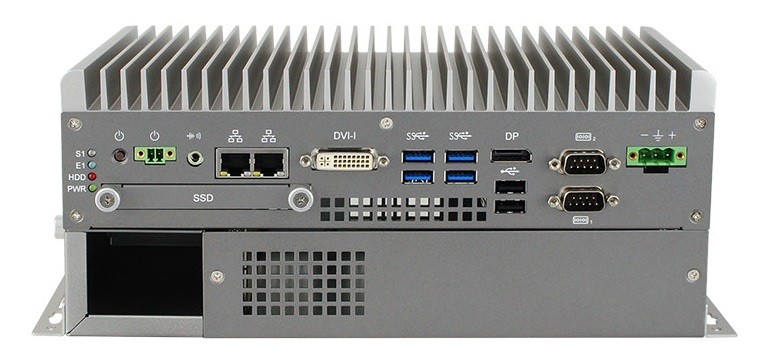

Externe I/O (Rückseite) | ||||
Anzeige | Displayport | 2 St | ||
Audio | Line-Out | 1 St | ||
Ethernet | RJ-45 | 3 St | ||
Seriell | RS-232 | DB-9 | 1 St | |
RS-232 / 422 / 485 | DB-9 | 1 St | ||
USB | USB v2.0 | 3 St | ||
USB v3.1 Gen. 1 | 3 St | |||
Sicherheit | ||||
Trusted Platform Modul (TPM) | v2.0 | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 24V | |||
Anschluss | 2 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 24V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
Einschübe | ||||
Extern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 60°C | ||
Lagerung | -20° bis 80°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 275 mm | |||
Tiefe | 140 mm | |||
Höhe | 117 mm | |||
Vibration | Vibration | 1G, 5~500 Hz | ||
mit HDD | 0.25G, 5~300Hz, 3 Axen | |||
Schock | Messdaten | 20G, 11 ms | ||
Gewicht | 3500 g | |||
Bedienelemente | Power | 1 St | ||
Power (Terminal Anschluss) | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Fehler | 2 St | |||
Antennenlöcher | 2 St | |||
Farbe | Silber | |||
Material | Aluminium, Stahl | |||
Montageoption | Hutschiene (DIN Rail), Wandmontage | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | EN 62368-1, IEC 62368-1, LVD | |||
RoHS konform | Ja |
