Embedded System
// Embedded System
// AMD Ryzen Embedded R2312
// 2,7 GHz
// Passiv cooled
// 8 GB RAM
// 2 x Display
// 4 x Serial
// 2 x USB (Front page)
// 3 x USB (internal)
// 2 x G-LAN (Front page)
// 2 x M.2 Slot
// 12V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage
Basismodul: IBASE CP100
Allgemein | ||||
SKU / Artikelnummer | CP100 | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | AMD Ryzen Embedded R2000 | |||
Nummer | AMD Ryzen Embedded R2312 | |||
CPU Kerne | 2 St | |||
Threads | 4 St | |||
Sockel | BGA 1140 (FP5) | |||
Basis Frequenz | 2,7 GHz | |||
Max. Turbo-Taktfrequenz | 3,5 GHz | |||
Thermal Design Power (TDP) | 15 W | |||
Grundleistungsaufnahme des Prozessors | 12 W | |||
Maximale Turbo-Leistungsaufnahme | 25 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Memory Type | DDR4 | ||
Speicher onBoard | 8 GB | |||
Grafik | ||||
HDMI | Version | 2.0b | ||
LVDS | Maximale Auflösung | 1920 x 1080 bei 60 Hz | ||
Bits | 24 Bit | |||
Erweiterung | ||||
M.2 | Slot 1 | Key ID | M | |
Unterstütze Abmaße | 2280 | |||
Slot 2 | Key ID | E | ||
Unterstütze Abmaße | 2230 | |||
M.2 Key IDs | E, M | |||
Storage | M.2 | |||
Audio | ||||
Chipsatz | Realtek ALC888S-VD2-GR | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I226IT PCIe (10/100/1000/2500 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||
Interne I/O | ||||
USB | USB v2.0 | Ports (2.00 mm Pitch) | 3 St | |
Digital I/O | Bits | 8-Bit | 1 St | |
Serial-ATA | S-ATA R3.0 (6 Gbit/s, 600 MB/s) | 1 St | ||

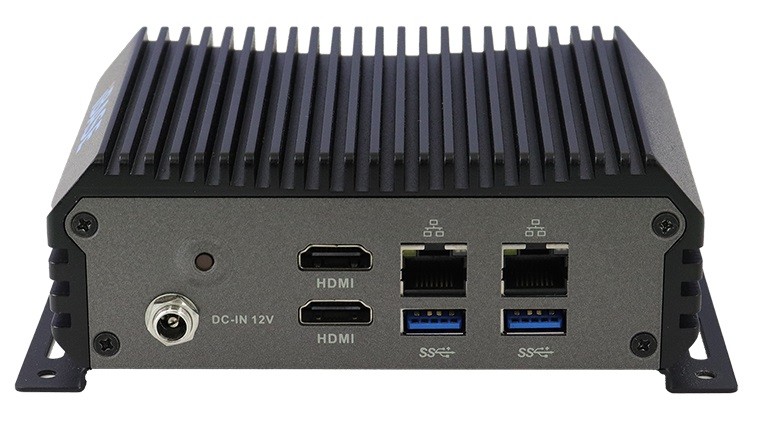

Externe I/O (Frontseite) | ||||
Anzeige | HDMI | 2 St | ||
Ethernet | RJ-45 | 2 St | ||
USB | USB v3.2 (Gen 2) | 2 St | ||

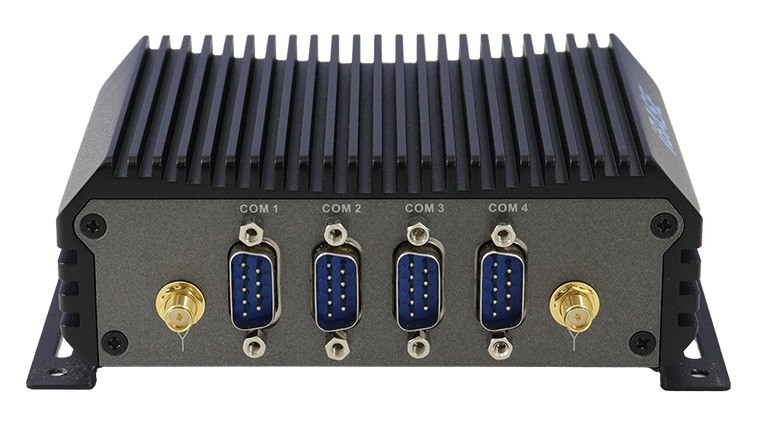

Externe I/O (Rückseite) | ||||
Seriell | RS-232 | DB-9 | 2 St | |
RS-232 / 422 / 485 | DB-9 | 2 St | ||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Nein | |
Bereich | 12V | |||
Anschluss | Hohlstecker (verschraubt) | |||
Stromversorgung - Eingang | DC: 12V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | 0° bis 45°C | ||
Lagerung | -10° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 0 bis 90%, nicht kondensierend | ||
Abmaße | Formfaktor | Embedded System | ||
Breite | 133 mm | |||
Tiefe | 94 mm | |||
Höhe | 51,4 mm | |||
Vibration | Vibration | 1G, 5~500 Hz | ||
mit HDD | 0.25G, 5~300Hz, 3 Axen | |||
Schock | Messdaten | 20G, 11 ms | ||
Bedienelemente | Power | 1 St | ||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
SMA-Anschluss | 2 St | |||
Farbe | Dunkel Grau | |||
Material | Aluminium, Stahl | |||
Montageoption | Wandmontage | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | LVD | |||
RoHS konform | Ja |
