Embedded System
// Embedded System
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Celeron N3350 | Intel Pentium N4200]
// [1,1 | 1,3 | 1,6] GHz
// Passiv gekühlt
// [4 GB | -] RAM
// 1 x Anzeige
// 4 x Seriell
// 2 x USB (Frontseite)
// 4 x USB (Rückseite)
// 2 x G-LAN (Rückseite)
// 2 x Mini-PCIe
// 12~24V
Bitte konfigurieren Sie Ihr Wunschprodukt.
Standardkonfiguration
Individualkonfiguration
Verkauf nur an gewerbliche Kunden.
Lieferzeit: auf Anfrage

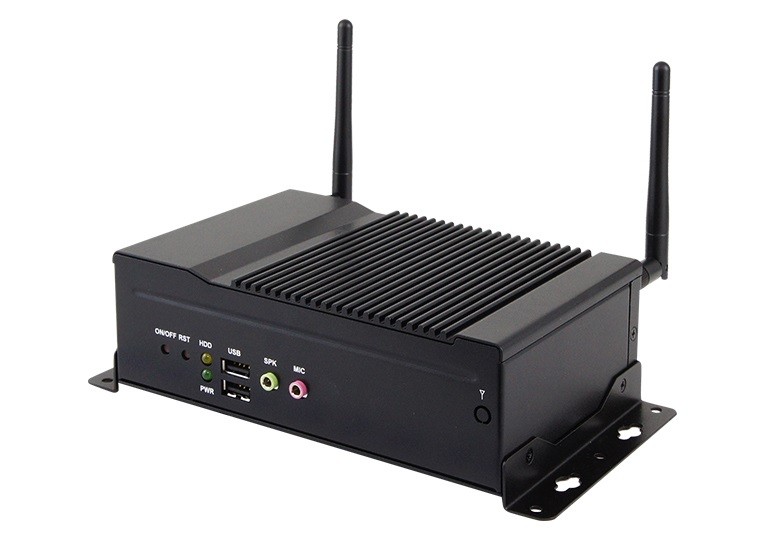

Basismodul: IBASE CSB200-818
Allgemein | ||||
SKU / Artikelnummer | CSB200-818 | |||
Produktgrunddaten | ||||
Hersteller | IBASE | |||
System | ||||
Prozessor | Vertikales Segment | Embedded | ||
Serie | Intel Apollo Lake | |||
Nummer | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Celeron N3350, Intel Pentium N4200 | |||
CPU Kerne | 2 St, 4 St | |||
Threads | 2 St, 4 St | |||
Sockel | BGA 1296 | |||
Basis Frequenz | 1,1 GHz, 1,3 GHz, 1,6 GHz | |||
Max. Turbo-Taktfrequenz | 1,8 GHz, 2 GHz, 2,4 GHz, 2,5 GHz | |||
Cache | 2 MB | |||
Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W, 12 W | |||
Chipsatz | SoC (System-On-Chip) | |||
Speicher | Aufbau | 204 Pin SO-DIMM DDR3L | ||
Memory Type | DDR3 | |||
Frequenz | 1600 / 1866 MHz | |||
Steckplätze | 1 St | |||
Maximaler Ausbau | 8 GB | |||
Speicher onBoard | 4 GB, - | |||
Storage | Solid State Drive (SSD) | 64 GB, - | ||
Hard Drive (HDD) | Anzahl | 1 St, - | ||
Formfaktor | 2.5", - | |||
Kapazität | 500 GB, - | |||
BIOS | AMI BIOS | |||
I/O Controller | Controller 1 | I/O Controller | Fintek F81964D-I | |
Storage | 1 x Hard Drive (HDD) 2.5" 500 GB, Solid State Drive (SSD) 64 GB | |||
Grafik | ||||
Prozessor | Intel HD Graphics 505 | |||
Erweiterung | ||||
Mini-PCIe | Halbe Bautiefe | Anzahl | 1 St | |
USB Unterstützung | Ja | |||
Volle Bautiefe | Anzahl | 1 St | ||
USB Unterstützung | Ja | |||
mSATA Unterstützung | Ja | |||
PCIe Schnittstellen | 2x Mini-PCIe | |||
Storage | mSATA | |||
Audio | ||||
Chipsatz | Realtek ALC283QHD | |||
Netzwerk | ||||
G-LAN | Controller | Chipsatz | Intel I210AT PCIe (10/100/1000 Mbps), Intel I210IT PCIe (10/100/1000 Mbps), Intel I211IT PCIe (10/100/1000 Mbps) | |
Anzahl | 2 St | |||
Netzwerk | 2x G-LAN | |||
Externe I/O (Frontseite) | ||||
Audio | Line-Out | 1 St | ||
Mic-In | 1 St | |||
USB | USB v2.0 | 2 St | ||

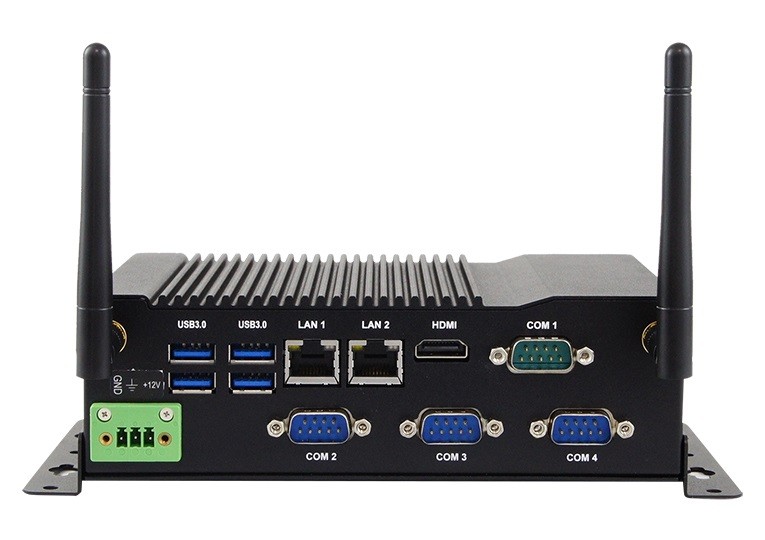

Externe I/O (Rückseite) | ||||
Anzeige | HDMI | 1 St | ||
Ethernet | RJ-45 | 2 St | ||
Seriell | RS-232 | DB-9 | 3 St | |
RS-232 / 422 / 485 | DB-9 | 1 St | ||
USB | USB v3.0 | 4 St | ||
Watchdog Zeitgeber | ||||
Watchdog Zeitgeber | Ja | |||
Watchdog Zeitgeber (Intervall) | Über Software programmierbar (1 - 255 Sekunden) | |||
Stromversorgung | ||||
Typ (Eingang) | DC | Weitbereich | Ja | |
Bereich | 12~24V | |||
Anschluss | 3 Pin Terminal Stecker | |||
Stromversorgung - Eingang | DC: 12~24V | |||
Kühlung | ||||
Umsetzung | Passiv | |||
Passiv | Wärmemanagement | Wärmespreizer (Heat Spreader) | ||
Einschübe | ||||
Intern | Einbauschacht 2.5" | 1 St | ||
Mechanik / Umgebung | ||||
Temperatur | Betrieb | -10° bis 45°C, -30° bis 60°C | ||
Lagerung | -40° bis 85°C | |||
Relative Luftfeuchtigkeit | Betrieb | 5 bis 90%, nicht kondensierend | ||
Lagerung | 5 bis 90%, nicht kondensierend | |||
Abmaße | Formfaktor | Embedded System | ||
Breite | 172 mm | |||
Tiefe | 111,6 mm | |||
Höhe | 53 mm | |||
Vibration | Vibration | 2G, 5~500 Hz | ||
Referenz Standard | IEC 68-2-64 | |||
mit SSD | 5~500 HZ, 1G | |||
Schock | Messdaten | 20G, 11 ms | ||
Gewicht | 1100 g | |||
Bedienelemente | Power | 1 St | ||
Reset | 1 St | |||
Statusanzeigen | Storage | 1 St | ||
Power | 1 St | |||
Farbe | Schwarz | |||
Material | Aluminium, Stahl | |||
Montageoption | Wandmontage | |||
Zertifikate / Konformitäten | ||||
CE | Ja | |||
FCC | Class B | Ja | ||
Weitere Zertifikate / Konformitäten | LVD | |||
RoHS konform | Ja | |||
Herstellergarantie | ||||
Herstellergarantie | 2 Jahre |
